$1,600.00/ 只

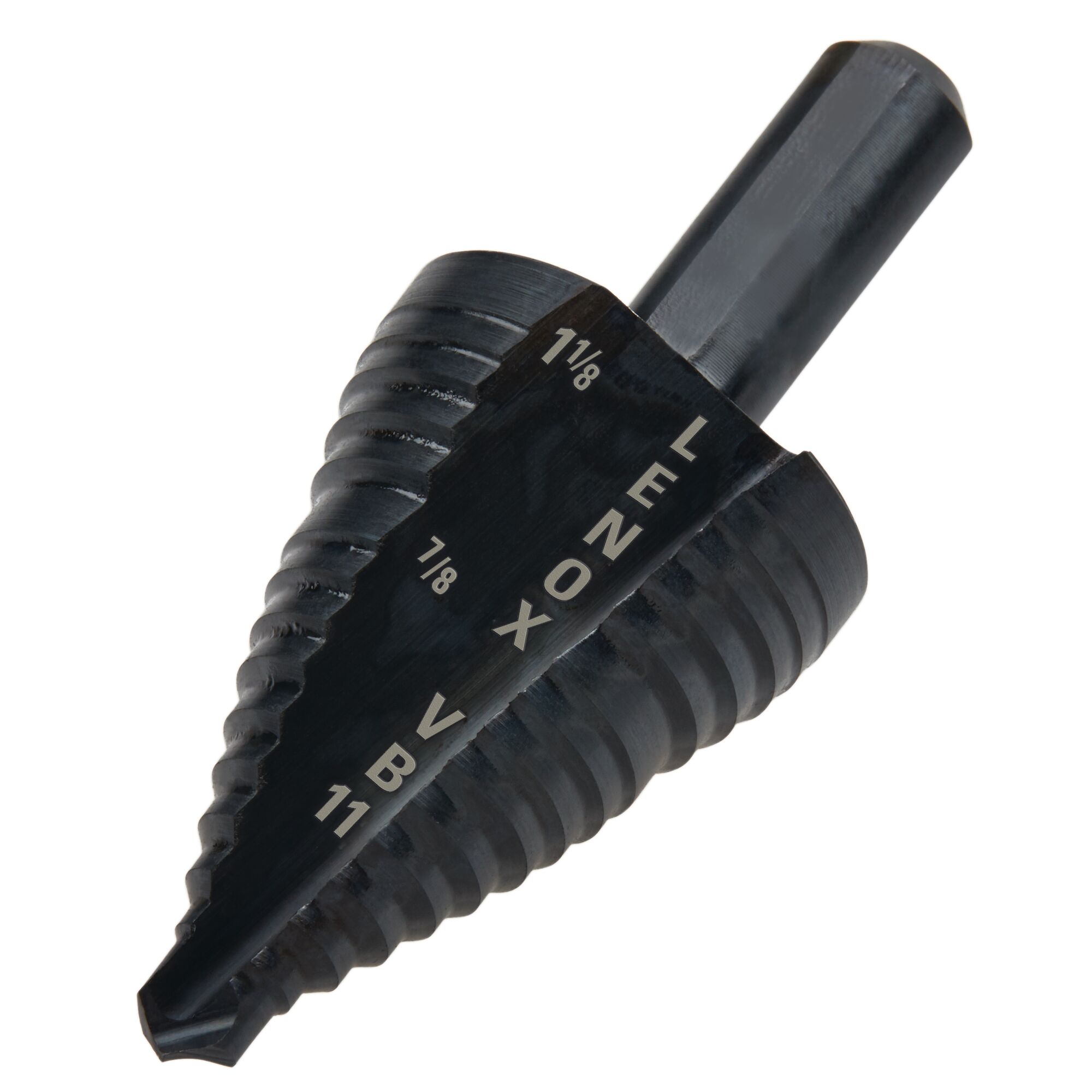

The LENOX LE-30888VB11 is a VARI-BIT® step drill bit that combines two hole sizes in one bit — 7/8 in (22.2 mm) and 1-1/8 in (28.6 mm) at 1/4 in step increments — for drilling those two hole sizes in iron and steel, stainless steel, sheet metal, aluminium, copper and brass.
The body is high speed steel (HSS) with a steam oxide coating that adds durability. A patented dual-flute design clears chips rapidly for round, burr-free holes, and the split point starts on contact with less walking. The 3/8 in flat shank (straight with three flats) fits a standard three-jaw drill chuck; overall length is 2-3/4 in. LENOX recommends LENOX PROTOOL LUBE® for extended life.

| Brand | LENOX |
|---|---|
| Model | LE-30888VB11 |
| Product type | Step drill bit |
| Number of hole sizes | 2 |
| Hole sizes (in) | 7/8, 1-1/8 |
| Hole sizes (mm) | 22.2, 28.6 |
| Step increment | 1/4 in |
| Shank size | 3/8 in (9.5 mm) |
| Shank type | Straight with three flats |
| Flutes | Dual flute |
| Material | High speed steel (HSS) |
| Finish | Steam oxide |
| Overall length | 2-3/4 in (approx. 70 mm) |
| Materials drilled | Iron/steel, stainless steel, sheet metal, aluminium, copper, brass |
| Country of origin | USA (packaging marked MADE IN USA WITH GLOBAL MATERIALS) |
| Unit | Piece |
| Barcode (UPC) | 082472308884 |
