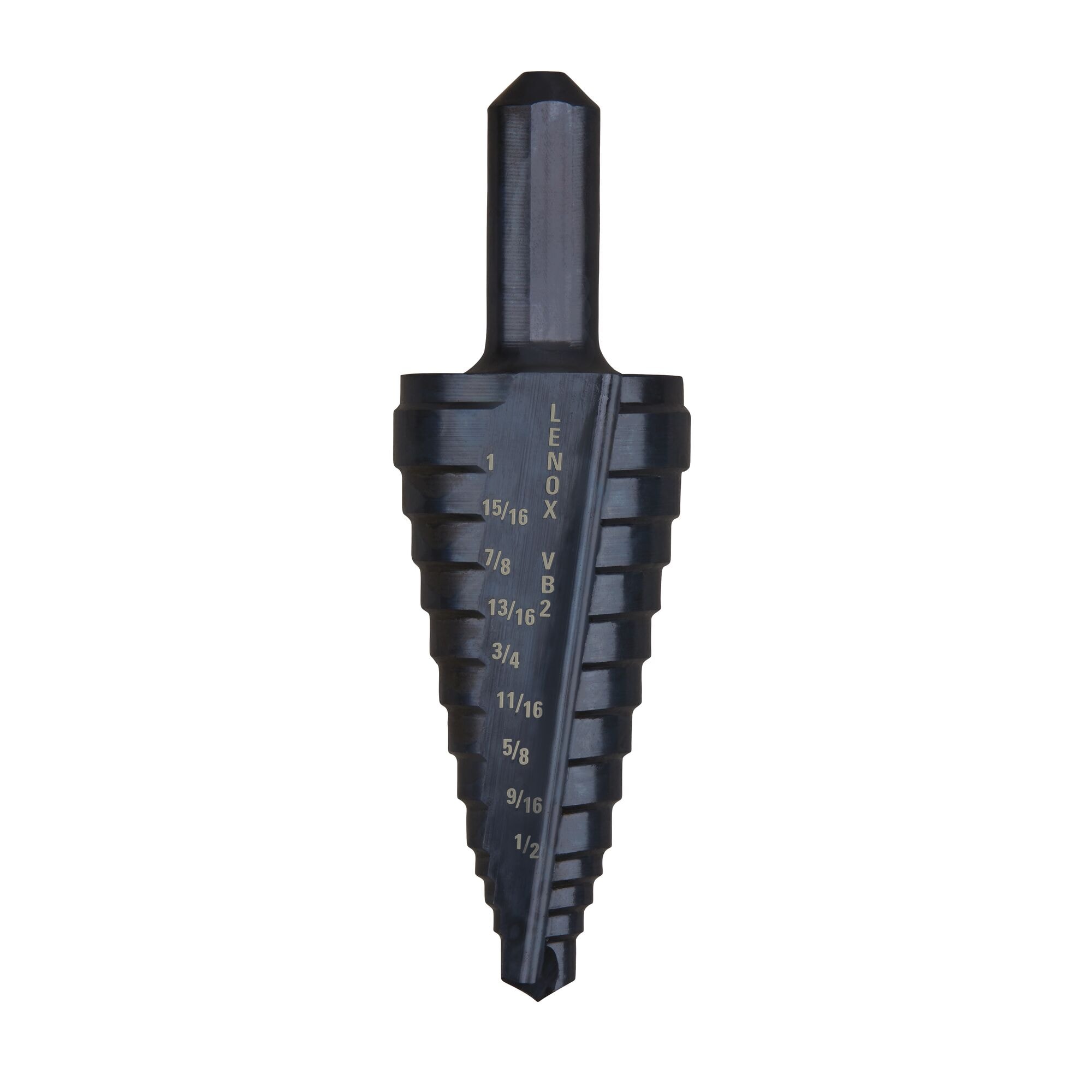

The LENOX VARI-BIT® LE-30882VB2 step drill bit drills nine hole sizes from 1/2 in to 1 in (12.7-25.4 mm) with one bit, enlarging holes step by step in sheet metal and wood instead of changing between fixed-size drill bits.
The bit is made of M52 high-speed steel with LENOX's patented two-flute design and a split point, cutting fast, round, burr-free holes with less walking. A steam oxide coating adds durability and the enhanced flute design removes chips rapidly. It has a 3/8 in (9.5 mm) hex shank and is intended for metal and wood drilling.

| Brand | LENOX |
|---|---|
| Model | LE-30882VB2 |
| Product type | Step drill bit |
| Series | VARI-BIT® |
| Number of hole sizes | 9 steps |
| Hole size range | 1/2 in - 1 in (12.7-25.4 mm) |
| Hole sizes (in) | 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1 |
| Hole sizes (mm) | 12.7, 14.3, 15.9, 17.5, 19.1, 20.6, 22.2, 23.8, 25.4 |
| Shank | 3/8 in (9.5 mm) hex shank |
| Material | M52 high-speed steel (HSS) |
| Coating | Steam oxide |
| Flute design | Patented two-flute |
| Point | Split point |
| Materials drilled | Metal, wood |
| Country of origin | USA (with global materials) |
| Unit | Piece |
| Barcode (UPC) | 082472308822 |
