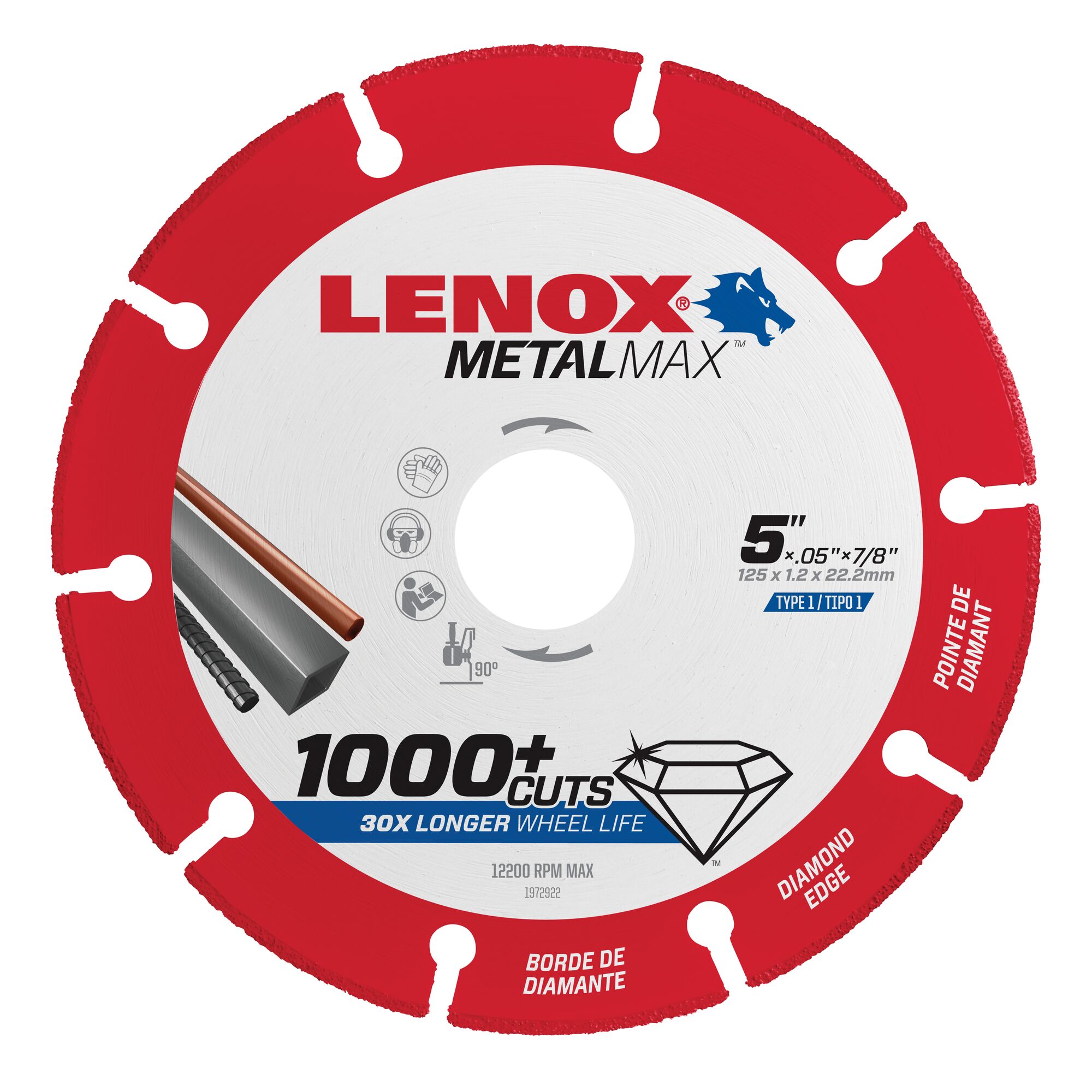

Name: LENOX LE-1985492 METALMAX 5 in Diamond Edge Cut-Off Wheel
Brand: LENOX
SKU: LE-1985492
Price: 800 TWD
Availability: InStock

The LENOX LE-1985492 is a METALMAX diamond edge cut-off wheel measuring 5 in (125 x 1.2 x 22.2 mm, Type 1 flat), for cutting steel, sheet metal, stainless steel, rebar, cast iron, aluminium and non-ferrous metals with an angle grinder.

The wheel uses a solid steel body with a diamond cutting edge. LENOX rates it at 1,000 or more cuts and 30X longer wheel life than thin bonded cut-off wheels (average performance in 1 in carbon steel square tube). Because the diamond edge does not wear down, the wheel holds its original diameter, so cutting depth and precision stay constant for the whole life of the wheel. It produces less dust and less odour than a bonded abrasive, with sparks coming only from the material being cut. It runs at the same RPM and feed as a bonded abrasive wheel, so no machine settings need changing; maximum speed for the 5 in size is 12,200 RPM.

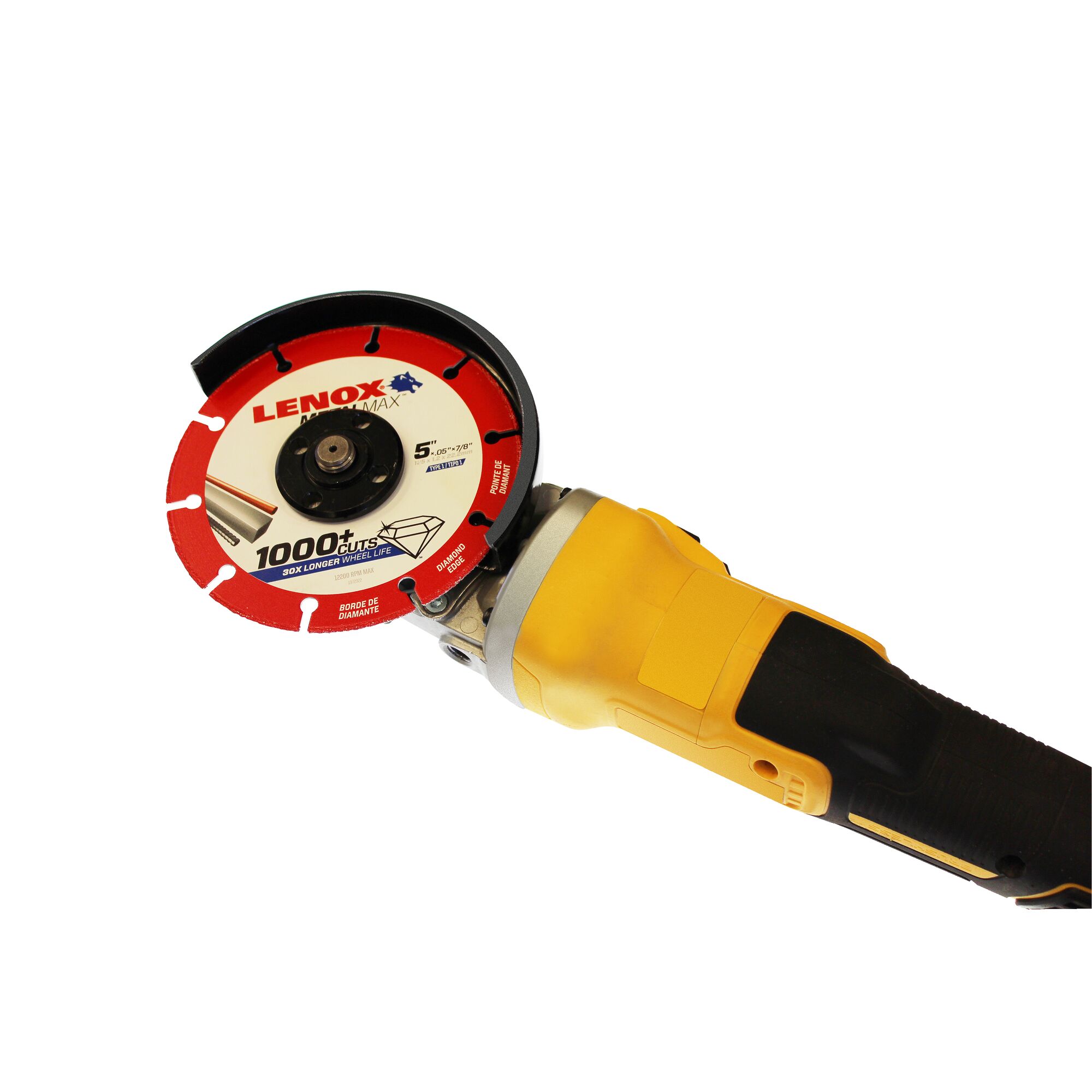

LENOX LE-1985492 METALMAX diamond edge cut-off wheel mounted on an angle grinder

Features & Benefits

Diamond cutting edge on a solid steel body: greatly reduces the risk of breakage versus thin bonded wheels.
1,000 or more cuts and 30X longer wheel life than thin bonded cut-off wheels (LENOX average performance in 1 in carbon steel square tube).
The diamond edge does not wear, so the wheel keeps its diameter and cut depth and precision stay constant.
Less dust and less odour — sparks come only from the material being cut.
Cuts steel, sheet metal, stainless steel, rebar, cast iron, aluminium and non-ferrous metals; cutting wax or saw lubricant is recommended for aluminium to avoid chip welding.
Same RPM and feed as a bonded abrasive wheel, no machine changes needed; 12,200 RPM maximum in the 5 in size.

Specifications

Brand	LENOX
Model	LE-1985492
Product type	Diamond cut-off wheel
Size (diameter x thickness x arbor)	125 x 1.2 x 22.2 mm (5 in x 0.05 in x 7/8 in)
Type	Type 1 flat cut-off wheel
Max speed	12,200 RPM
Materials cut	Steel, sheet metal, stainless steel, rebar, cast iron, aluminium, non-ferrous metals
Unit	Piece
Barcode	9314244023444

What's in the Box

LENOX LE-1985492 diamond cut-off wheel, 5 in x1 (priced per piece)

No downloads available yet

Contact JACO if you need a datasheet, certificate or another technical document.

Reviews & Q&A

No reviews yet. Be the first to review this product.

Features & Benefits

Diamond cutting edge on a solid steel body: greatly reduces the risk of breakage versus thin bonded wheels.
1,000 or more cuts and 30X longer wheel life than thin bonded cut-off wheels (LENOX average performance in 1 in carbon steel square tube).
The diamond edge does not wear, so the wheel keeps its diameter and cut depth and precision stay constant.
Less dust and less odour — sparks come only from the material being cut.
Cuts steel, sheet metal, stainless steel, rebar, cast iron, aluminium and non-ferrous metals; cutting wax or saw lubricant is recommended for aluminium to avoid chip welding.
Same RPM and feed as a bonded abrasive wheel, no machine changes needed; 12,200 RPM maximum in the 5 in size.

Specifications

Brand	LENOX
Model	LE-1985492
Product type	Diamond cut-off wheel
Size (diameter x thickness x arbor)	125 x 1.2 x 22.2 mm (5 in x 0.05 in x 7/8 in)
Type	Type 1 flat cut-off wheel
Max speed	12,200 RPM
Materials cut	Steel, sheet metal, stainless steel, rebar, cast iron, aluminium, non-ferrous metals
Unit	Piece
Barcode	9314244023444

What's in the Box

LENOX LE-1985492 diamond cut-off wheel, 5 in x1 (priced per piece)

Reviews & Q&A

No reviews yet. Be the first to review this product.
