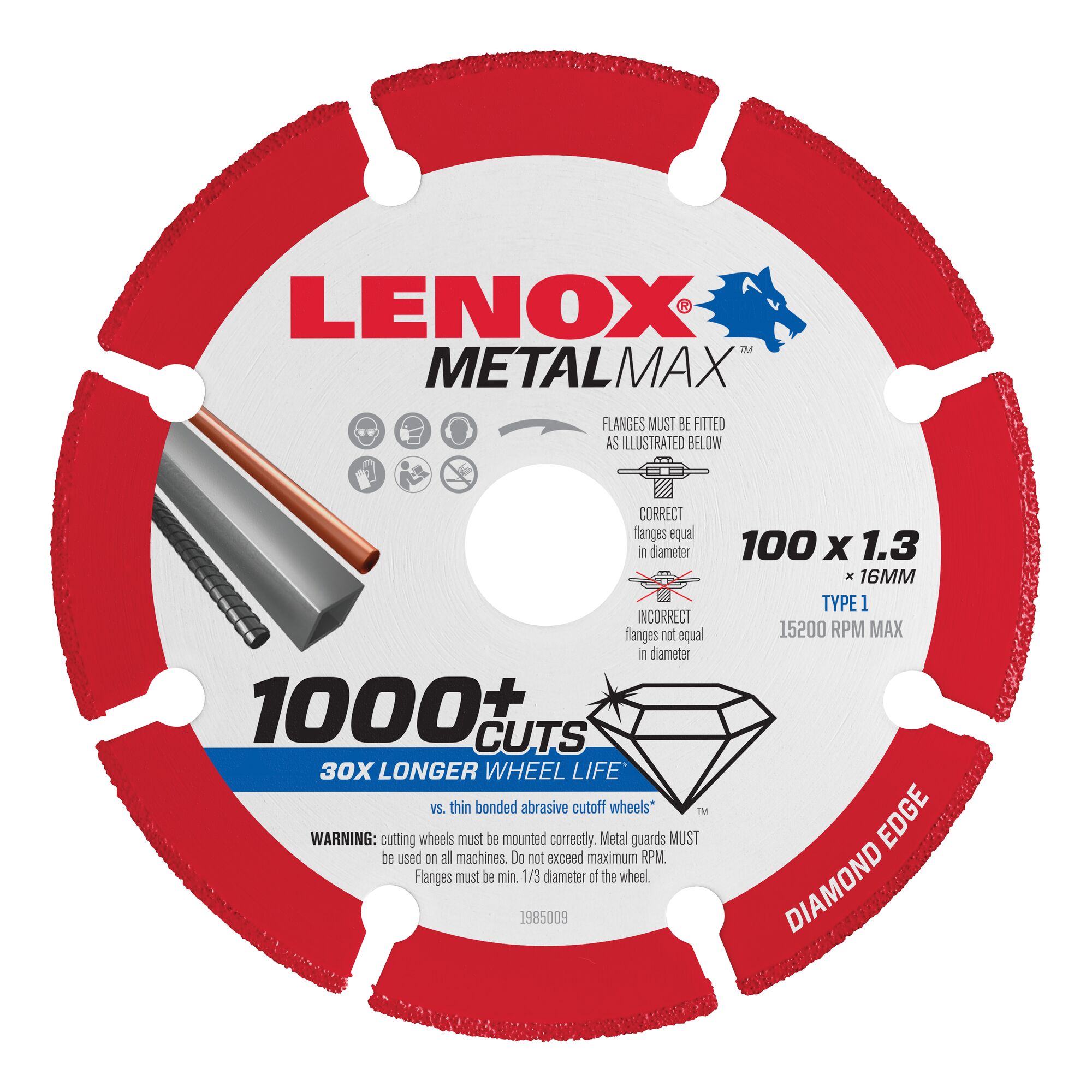

Name: LENOX LE-1985009 METALMAX 4 in Diamond Cut-Off Wheel 100 x 1.3 x 16 mm
Brand: LENOX
SKU: LE-1985009
Price: 450 TWD
Availability: InStock

The LENOX LE-1985009 METALMAX diamond cut-off wheel is a 100 mm (4 in) diamond-edged wheel, 1.3 mm thick with a 16 mm arbor hole, for 100 mm angle grinders. It cuts steel, sheet metal, stainless steel, rebar, cast iron, aluminium and non-ferrous metals.

The wheel pairs a steel body with a diamond cutting edge in a Type 1 flat profile rated to 15,200 RPM. Because the diamond edge does not wear down the way a thin bonded abrasive wheel does, cutting depth stays constant for the whole life of the wheel, with less dust and odour and sparks coming only from the material being cut. It runs at the same speed and feed force as a bonded wheel, so no machine setting has to be changed. Typical users are metal fabricators, steel erectors, plumbers and maintenance crews; when cutting aluminium, apply cutting wax or a saw lubricant to avoid chip welding.

LENOX METALMAX diamond cut-off wheel mounted on an angle grinder during a cutting application

Features & Benefits

Diamond cutting edge: LENOX testing gives 1,000+ cuts and 30 times the wheel life of thin bonded cut-off wheels (average performance for a 4-1/2 in wheel in 1 in carbon steel square tube).
Diameter retention: the diamond edge does not shrink, so cutting depth stays constant for better control and precision.
One wheel, multiple materials: steel, sheet metal, stainless steel, rebar, cast iron, aluminium and non-ferrous metals.
Less dust and odour: the wheel does not wear down like a bonded abrasive, and sparks come only from the material being cut.
Same tool, same settings: fits 100 mm angle grinders and runs at the same RPM and feed force as a bonded cut-off wheel.
Marked for safety: Type 1 flat wheel, 15,200 RPM max. Always fit the metal guard and keep flanges at least 1/3 of the wheel diameter.

Specifications

Brand	LENOX
Model	LE-1985009 (OEM number 1985009)
Product type	Diamond cut-off wheel
Diameter	100 mm (4 in)
Thickness	1.3 mm
Arbor hole	16 mm
Max speed	15,200 RPM
Type	Type 1 flat
Power tool	100 mm angle grinder
Materials cut	Steel, sheet metal, stainless steel, rebar, cast iron, aluminium, non-ferrous metals
Unit	Piece
Barcode (EAN)	9314244023420

What's in the Box

LENOX LE-1985009 METALMAX diamond cut-off wheel x1 (priced per piece)

No downloads available yet

Contact JACO if you need a datasheet, certificate or another technical document.
