Name: KING TONY 7833-15 Wooden-Handle Lump Hammer, 1500 g / 280 mm
Brand: KING TONY
SKU: KT-7833-15
Price: 1150 TWD
Availability: InStock

The KING TONY 7833-15 is a German-pattern lump hammer with an alloy-steel masonry hammer head and a wooden handle. This model has a 1500 g head and a 280 mm overall length for manual striking tasks requiring a lump-hammer pattern. The listed unit is one complete hammer.

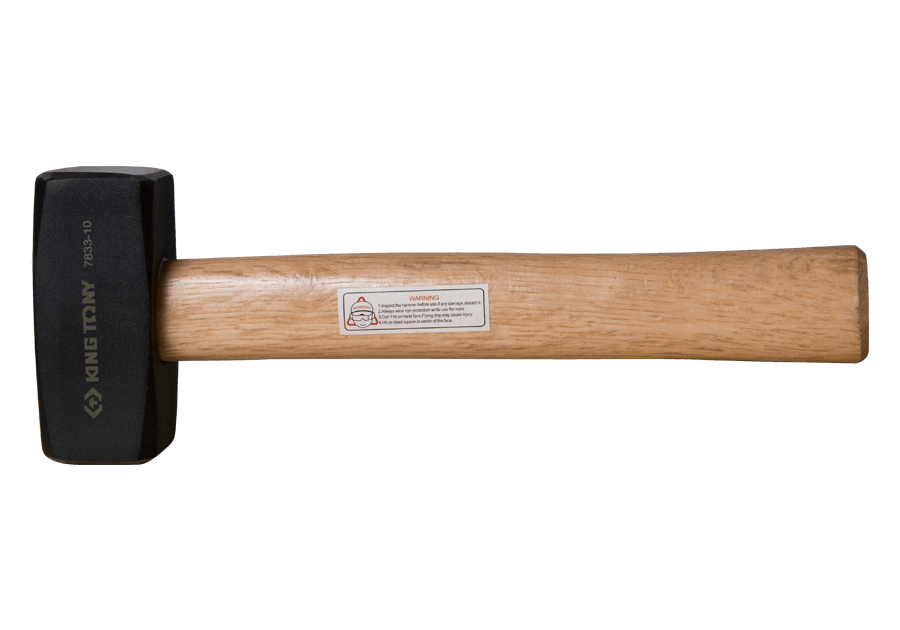

Manufacturer’s KING TONY 7833-series lump-hammer photo marked 7833-10; listing is 7833-15, 1500 g head and 280 mm overall length, sold individually

Manufacturer-supplied KING TONY 7833-series representative photograph: the visible head marking reads 7833-10, not this listing’s 7833-15. This listing is the 1500 g-head model with A 45 mm, H 110 mm and L 280 mm, sold individually. The picture is not an exact 7833-15 photograph.

Design and specifications

Alloy-steel head with a wooden handle in the manufacturer’s 7833 lump-hammer family.
The manufacturer specifies DIN 6475.
Model 7833-15 dimensions are A 45 mm, H 110 mm and L 280 mm; refer to the dimension diagram and specification table.

KING TONY 7833-series A/H/L dimension schematic, not a photograph; model 7833-15 dimensions are 45/110/280 mm

The manufacturer’s 7833-series drawing is a dimension schematic, not a product photograph. A denotes head width, H head height and L overall length. The exact 7833-15 values are listed below.

Specifications

Brand	KING TONY
Model	7833-15
Tool type	German-pattern lump hammer
Head weight	1500 g
Head width A	45 mm
Head height H	110 mm
Overall length L	280 mm
Total weight	1642 g
Head material	Alloy steel
Handle	Wood
Manufacturer-specified standard	DIN 6475
Sales unit	1 hammer

What’s in the Box

7833-15 wooden-handle lump hammer × 1

Design and specifications

Alloy-steel head with a wooden handle in the manufacturer’s 7833 lump-hammer family.
The manufacturer specifies DIN 6475.
Model 7833-15 dimensions are A 45 mm, H 110 mm and L 280 mm; refer to the dimension diagram and specification table.

The manufacturer’s 7833-series drawing is a dimension schematic, not a product photograph. A denotes head width, H head height and L overall length. The exact 7833-15 values are listed below.

Specifications

Brand	KING TONY
Model	7833-15
Tool type	German-pattern lump hammer
Head weight	1500 g
Head width A	45 mm
Head height H	110 mm
Overall length L	280 mm
Total weight	1642 g
Head material	Alloy steel
Handle	Wood
Manufacturer-specified standard	DIN 6475
Sales unit	1 hammer

What’s in the Box

7833-15 wooden-handle lump hammer × 1
