Name: KING TONY 68HB-05 Internal 90° Circlip Pliers, 5 in. (125 mm)
Brand: KING TONY
SKU: KT-68HB-05
Price: 840 TWD
Availability: InStock

The KING TONY 68HB-05 is a European-pattern internal circlip plier with 90-degree bent tips for fitting and removing internal retaining rings. It measures 125 mm (5 in.) overall and suits ring diameters of 12–28 mm. This listing is for one plier, not a multi-piece circlip plier set.

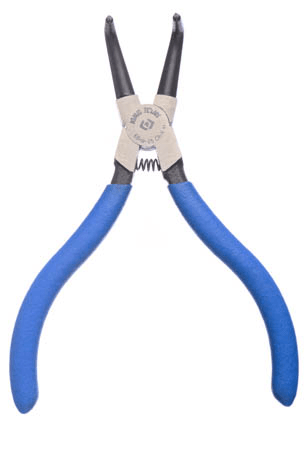

KING TONY 68HB-05 internal 90-degree circlip pliers, 125 mm, front view with blue PVC grips — Images are from KING TONY’s 68HB-05 product page. This model is the 125 mm (5 in.) internal 90-degree plier with 1.3 mm tips.

Features and useInternal rings and angled tips

The 90-degree tips approach ring holes from the side. Check the ring type, diameter and hole size before selecting a plier.

Metal body and spring mechanism

Chrome-vanadium steel body with heat treatment and phosphate finish, fitted with a return spring.

PVC grips

Blue PVC grips cover the holding area. This product is not listed as a certified electrical-insulation tool.

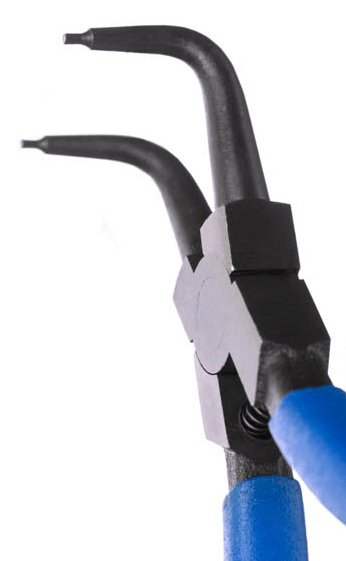

KING TONY 68HB-05 close-up of 90-degree bent tips and return spring — The 90-degree-tip and PVC-grip close-ups are from the 68HB-05 product page. The grip close-up shows only part of the tool, not a complete-tool photograph.

KING TONY 68HB-05 blue PVC grip close-up, not a complete-tool photo — The 90-degree-tip and PVC-grip close-ups are from the 68HB-05 product page. The grip close-up shows only part of the tool, not a complete-tool photograph.

Specifications

Brand	KING TONY
Manufacturer model	68HB-05
Pattern	European-pattern internal circlip pliers
Tip angle	90°
Overall length	125 mm (5 in.)
Tip diameter	1.3 mm
Ring diameter capacity	12–28 mm
Weight	94 g
Body material	Chrome-vanadium steel
Finish	Heat-treated, phosphate finish
Grip material	PVC
Standards	DIN 5254, DIN 5256
Selling unit	One plier

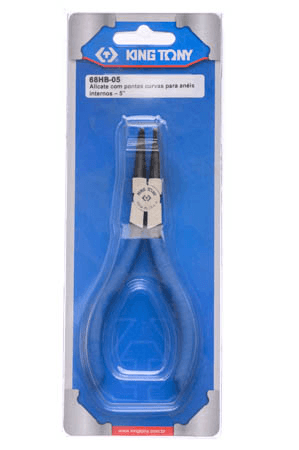

KING TONY 68HB-05 Brazil regional packaging illustration; delivered packaging may differ — This is the Brazil regional packaging illustration for 68HB-05, with the model visible on the pack. Delivered regional labels and packaging may differ. The price buys one plier, not an outer carton of multiple tools.

Package contents

68HB-05 internal 90-degree circlip plier ×1

Features and useInternal rings and angled tips

The 90-degree tips approach ring holes from the side. Check the ring type, diameter and hole size before selecting a plier.

Metal body and spring mechanism

Chrome-vanadium steel body with heat treatment and phosphate finish, fitted with a return spring.

PVC grips

Blue PVC grips cover the holding area. This product is not listed as a certified electrical-insulation tool.

Specifications

Brand	KING TONY
Manufacturer model	68HB-05
Pattern	European-pattern internal circlip pliers
Tip angle	90°
Overall length	125 mm (5 in.)
Tip diameter	1.3 mm
Ring diameter capacity	12–28 mm
Weight	94 g
Body material	Chrome-vanadium steel
Finish	Heat-treated, phosphate finish
Grip material	PVC
Standards	DIN 5254, DIN 5256
Selling unit	One plier

Package contents

68HB-05 internal 90-degree circlip plier ×1
