KING TONY 6214-05 Mini Diagonal Cutting Pliers, 125 mm (5 in)
Hand Tools
$1,030.00
No downloads available yet
Contact JACO if you need a datasheet, certificate or another technical document.

$790.00/ 支

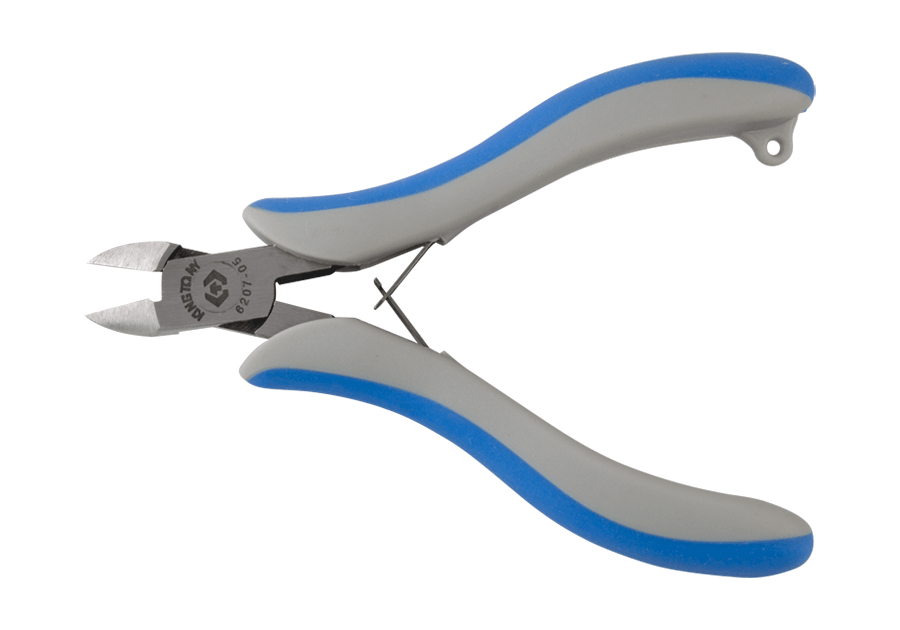

KING TONY 6207-05 precision diagonal cutting pliers have a compact diagonal-cutting head and blue and grey handles for electronics work, including trimming wires and component leads. The official specifications list an overall length of 118 mm and a weight of 88 g. This listing is for one tool.

Official electronics application image. The circuit board and electronic components shown are not included with the tool.
| Brand | KING TONY |
|---|---|
| Manufacturer model | 6207-05 |
| Tool type | Precision diagonal cutting pliers |
| Overall length | 118 mm |
| Head dimension A | 10.8 mm |
| Head dimension B | 11.5 mm |
| Head dimension C | 7.1 mm |
| Weight | 88 g |
| Handles | Blue and grey, two-colour |
| Pricing unit | One tool (支) |
A is head width, B is the tip-to-base length of the cutting head, and C is the head thickness in side view, following the manufacturer dimensional drawing.
