KING TONY 433538M is a 38 mm metric six-point standard hand socket with a 1/2-inch square drive. It is sold as one socket for use with a compatible hand ratchet, handle or extension on hexagonal fasteners.

Features

38 mm six-point opening and 1/2-inch (12.7 mm) square drive.
Chrome-vanadium alloy steel with a polished, chrome-plated finish.
Four ball-groove retention positions.
Manufacturer specification references DIN 3124 and ISO 2725-1.

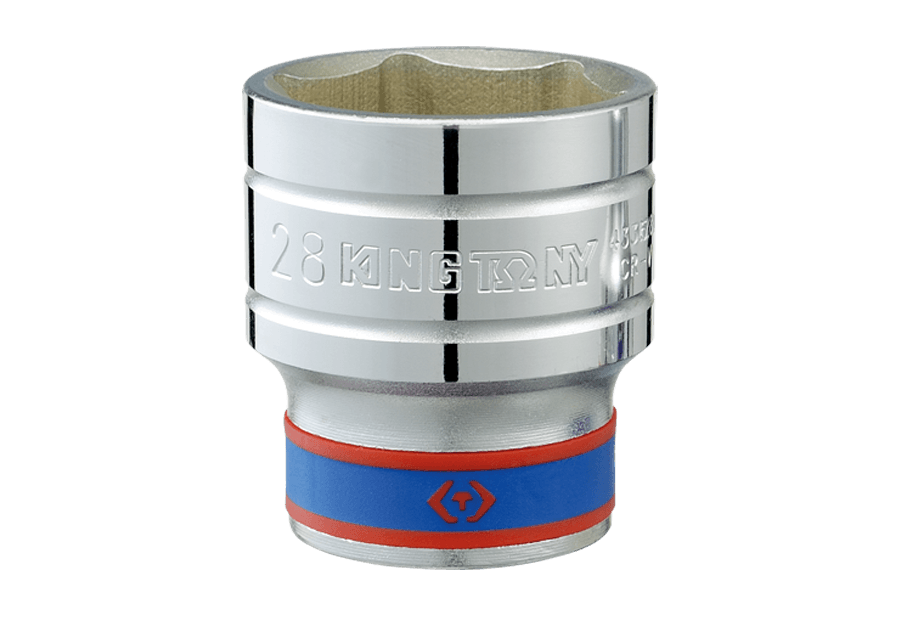

Manufacturer 4335-series 28 mm six-point standard socket representative photo; listing is 433538M 38 mm with 1/2-inch drive, one socket — Manufacturer’s 4335-series representative photograph, visibly marked 28 mm; this is not an exact 38 mm photograph. This listing is the 433538M 38 mm six-point standard socket with a 1/2-inch drive, sold individually.

Specifications

Brand	KING TONY
Listing model	433538M
Square drive	1/2 in (12.7 mm)
Socket size	38 mm
Opening profile	Metric six-point
Configuration	Standard-length hand socket
Overall length L	50 mm
Working-end outside diameter D1	49.0 mm
Drive-end outside diameter D2	34.0 mm
Hex recess depth l	25.0 mm
Weight	268 g
Material	Chrome-vanadium alloy steel
Finish	Polished, chrome plated
Referenced standards	DIN 3124; ISO 2725-1
EAN	4712755332355
Sellable unit	One socket

The manufacturer-linked regional record publishes code 433538MR with the same EAN 4712755332355 as this workbook item. This listing retains ordering model 433538M; dimensions follow the manufacturer’s 433538MR row corroborated by that EAN.

KING TONY 4335-series socket sectional diagram showing D1, D2, l and L; not a product photograph — Manufacturer’s sectional dimension diagram, not a product photograph: D1 is the working-end outside diameter, D2 the drive-end outside diameter, l the hex recess depth and L the overall length. Use this model’s values in the specification table.

What's in the Box

KING TONY 433538M 38 mm six-point standard socket ×1
