Name: KING TONY 433528M 1/2-inch Drive 28 mm 6-Point Standard Socket
Brand: KING TONY
SKU: KT-433528M
Price: 280 TWD
Availability: InStock

The KING TONY 433528M is a 28 mm metric six-point standard socket with a 1/2-inch square drive. Pair it with a matching manual ratchet or socket handle for suitably sized hexagonal fasteners. Its 42 mm overall length is the standard configuration; this offer is one socket, not a socket set.

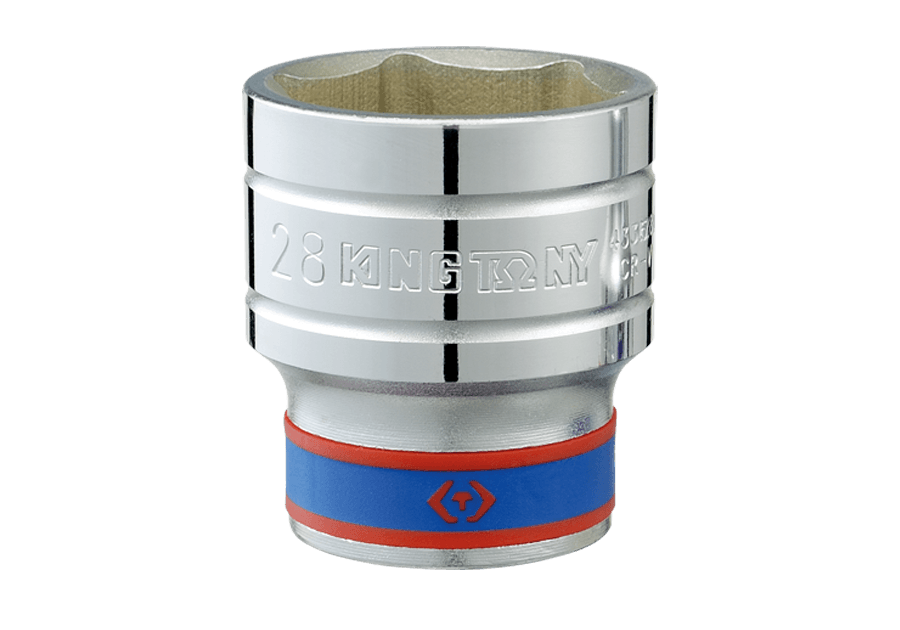

Manufacturer-supplied 4335-series representative photograph; the pictured socket is marked 28 mm. It is not an exact 433528M retail-package photograph. This listing is the 433528M, 1/2-inch drive, 28 mm six-point standard socket, sold individually.

Features

28 mm metric six-point opening with a 1/2-inch square drive for matching manual socket tools.
Chrome-vanadium steel with a polished, chrome-plated finish.
The 4335 series uses a four-ball-recess retention design for compatible manual drive tools.
The manufacturer lists DIN 3124 and ISO 2725-1 for the 4335M metric standard-socket range.

Specifications

Brand	KING TONY
Model	433528M
Square drive	1/2 inch (12.7 mm)
Socket opening	Metric 6-point, 28 mm
Configuration	Standard socket / manual use
Overall length L	42 mm
Working-end diameter D1	37.8 mm
Drive-end diameter D2	30.0 mm
Hexagonal opening depth ℓ	20.0 mm
Catalogue reference weight	162 g
Material	Chrome-vanadium steel (Cr-V)
Finish	Polished and chrome-plated
Standards	DIN 3124, ISO 2725-1
Sale unit	One socket (顆), priced individually

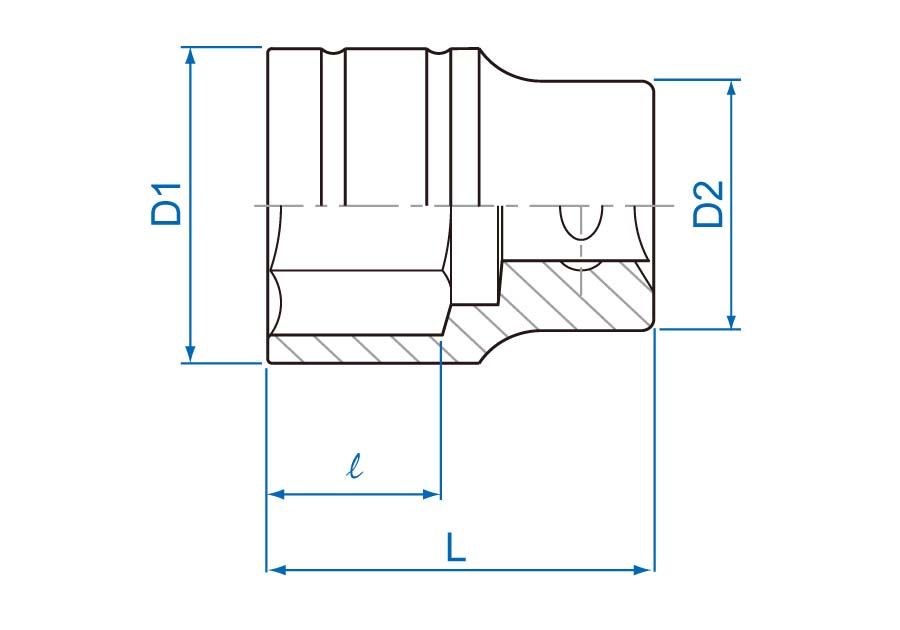

KING TONY 4335-series socket diagram showing D1, D2, ℓ and L; listed 433528M is 28 mm, 1/2-inch drive and 42 mm long — Dimensions and reference weight are taken from the exact 433528M row in the manufacturer-linked KT22 catalogue. The drawing only identifies D1, D2, ℓ and L; use the specification table for this model’s values.

Package contents

One 433528M 1/2-inch drive 28 mm metric six-point standard socket ×1. No ratchet, handle or other socket sizes are included.

Features

28 mm metric six-point opening with a 1/2-inch square drive for matching manual socket tools.
Chrome-vanadium steel with a polished, chrome-plated finish.
The 4335 series uses a four-ball-recess retention design for compatible manual drive tools.
The manufacturer lists DIN 3124 and ISO 2725-1 for the 4335M metric standard-socket range.

Specifications

Brand	KING TONY
Model	433528M
Square drive	1/2 inch (12.7 mm)
Socket opening	Metric 6-point, 28 mm
Configuration	Standard socket / manual use
Overall length L	42 mm
Working-end diameter D1	37.8 mm
Drive-end diameter D2	30.0 mm
Hexagonal opening depth ℓ	20.0 mm
Catalogue reference weight	162 g
Material	Chrome-vanadium steel (Cr-V)
Finish	Polished and chrome-plated
Standards	DIN 3124, ISO 2725-1
Sale unit	One socket (顆), priced individually

Package contents

One 433528M 1/2-inch drive 28 mm metric six-point standard socket ×1. No ratchet, handle or other socket sizes are included.
