KING TONY 433526S 1/2-inch Drive 13/16-inch 6-Point Standard Socket

Brand: KING TONY
Manufacturer model number: 433526S
Order code: Y8EAX67
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$240.00/ 顆~~Was $340.00~~-29%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 433526S is a 13/16-inch, 6-point standard socket with a 1/2-inch square drive. Its 38 mm overall length suits socket selection for inch-sized hexagonal nuts and bolt heads with a compatible hand ratchet or socket handle.

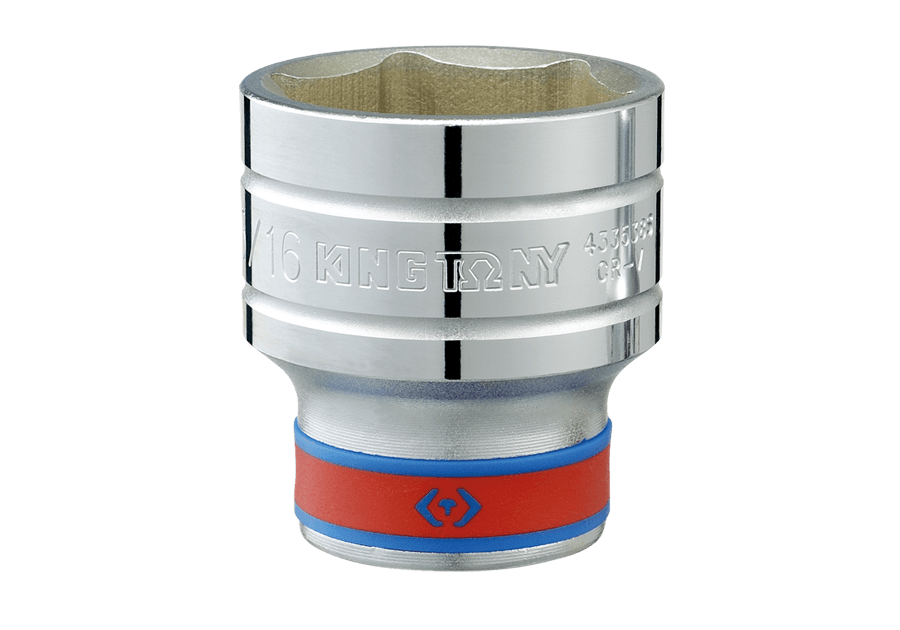

Representative KING TONY standard 6-point socket; pictured markings may differ. Listed model 433526S is 1/2-inch drive, 13/16 inch and 38 mm long, sold individually. — Manufacturer-supplied representative image of the same-design KING TONY 1/2-inch drive, 6-point standard socket family, not an exact 433526S photograph. Pictured size and model markings may differ. This listing is model 433526S, 13/16 inch, 38 mm overall length, sold individually.

Features

6-point inch profile: select the 13/16-inch opening to match the fastener.
1/2-inch square drive for a matching manual socket handle.
Chrome-vanadium steel with a polished, chrome-plated finish.
The manufacturer's 4335S specification lists ANSI/ASME B107.1.

Dimension guide

Manufacturer socket section diagram identifying D1, D2, working depth ℓ and overall length L; not a product photograph — This family diagram explains the dimension symbols only. The numeric dimensions for model 433526S are given in the table below.

Specifications

Model	433526S
Square drive	1/2 inch (12.7 mm)
Socket size	13/16 inch
Profile	6-point
Overall length L	38 mm
Working-end outside diameter D1	28.6 mm
Drive-end outside diameter D2	23.2 mm
Working depth ℓ	13.0 mm
Material	Chrome-vanadium steel (Cr-V)
Finish	Polished and chrome plated
Standard	ANSI/ASME B107.1
Sales unit	One socket

What is included

433526S 13/16-inch, 1/2-inch drive, 6-point standard socket × 1
