KING TONY 433525S 1/2-inch Drive 25/32-inch 6-Point Standard Socket

Brand: KING TONY
Manufacturer model number: 433525S
Order code: Y8EAPQS
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$240.00/ 顆~~Was $340.00~~-29%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 433525S is a 25/32-inch six-point standard socket for 1/2-inch square-drive hand socket tools. Its overall length is 38 mm. Select it to match the size of the inch-series hex fastener; this listing is for one socket.

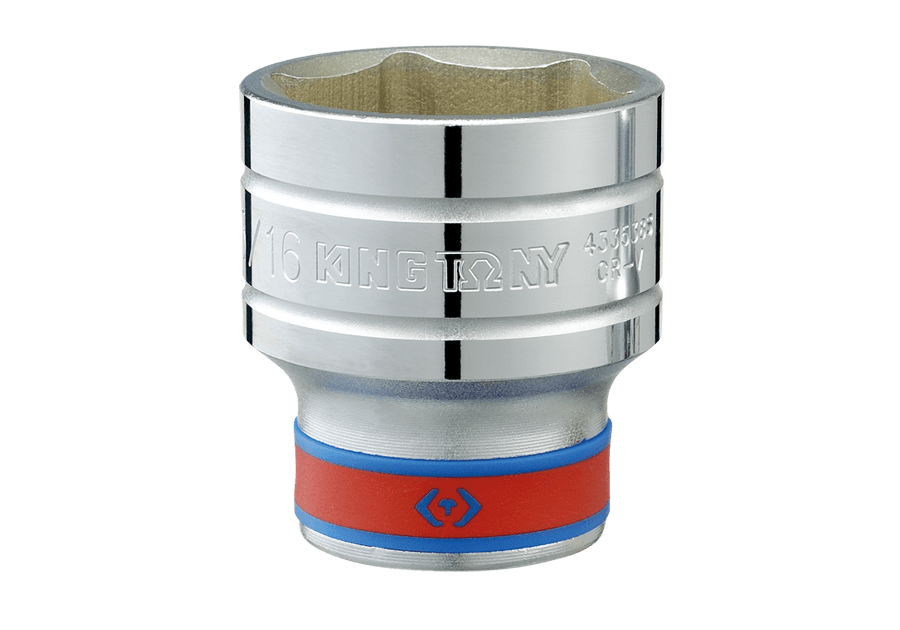

Manufacturer 4335-series representative six-point standard socket photo, showing a /16 marking rather than this 433525S 25/32-inch size — This is the manufacturer’s same-design representative photo used for the 4335SR series, not an exact-size photograph of the 433525S. The visible /16 size marking differs from this 25/32-inch item. This listing is a 1/2-inch drive, 25/32-inch six-point socket with a 38 mm overall length, sold individually.

Features

25/32-inch six-point opening for the corresponding inch-series hex nut or bolt.
1/2-inch square drive and standard short body, not a deep socket.
Chrome-vanadium alloy steel with a polished, chrome-plated finish.
The manufacturer’s 4335S specification lists ANSI/ASME B107.1.

Specifications

Brand	KING TONY
Manufacturer model	433525S
Square drive	1/2 inch
Socket size	25/32 inch
Profile	6-point hexagon
Type	Inch standard socket
Overall length L	38 mm
Working-end diameter D1	28.0 mm
Drive-end diameter D2	23.2 mm
Engagement depth ℓ	13.0 mm
Weight	96 g
Material	Chrome-vanadium alloy steel (Cr-V)
Finish	Polished, chrome plated
Standard	ANSI/ASME B107.1
Selling unit	One socket

KING TONY standard socket dimension-symbol diagram with D1, D2, engagement depth ell and overall length L — The diagram identifies D1, D2, engagement depth ℓ and overall length L. Use the exact 433525S values in the specification table.

What’s in the Box

433525S 25/32-inch six-point standard socket × 1

A ratchet handle and other sockets are not included.
