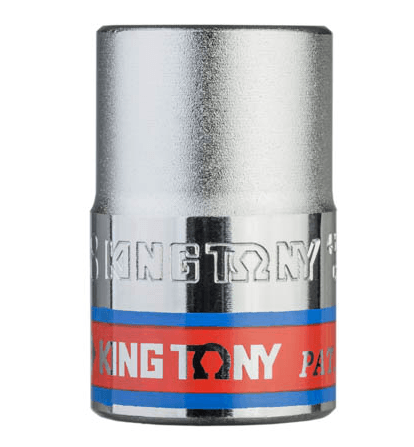

KING TONY 433520S 5/8 吋六角標準套筒示意正面，1/2 吋方頭；來源頁標示 433520SR，單顆出售

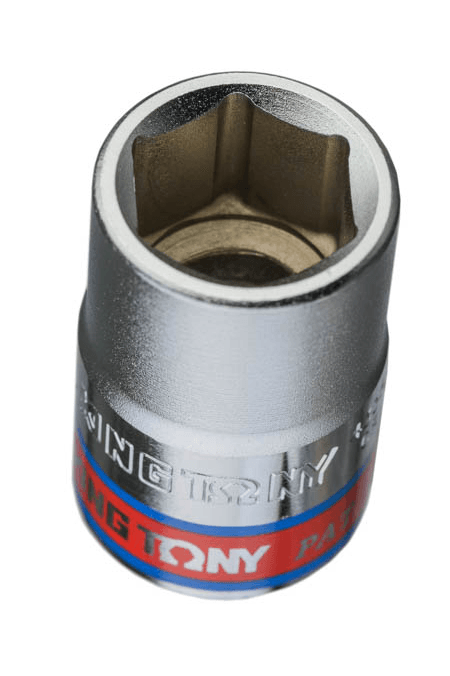

KING TONY 433520S 5/8 吋六角標準套筒示意開口角度，1/2 吋方頭；來源頁標示 433520SR，單顆出售

KING TONY 433520S 1/2-inch Drive 5/8-inch 6-Point Standard Socket

Brand: KING TONY
Manufacturer model number: 433520S
Order code: Y8EJEZ7
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$160.00/ 顆~~Was $230.00~~-30%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 433520S is an imperial 6-point standard socket with a 5/8-inch opening and a 1/2-inch square drive for matching hand socket tools. Its overall length is 38 mm. This listing sells one socket.

KING TONY 433520S 5/8-inch standard 6-point socket representative front view, 1/2-inch drive; source page labelled 433520SR; one socket sold — Manufacturer representative photographs show the same-design 5/8-inch standard socket with a 1/2-inch drive. The source page is labelled 433520SR, while the detail photograph visibly bears 433520S and CR-V. This listing is model 433520S, 38 mm long, sold as one socket; no S/SR model or barcode equivalence is claimed.

Manufacturer's 5/8-inch socket representative detail showing actual 433520S and CR-V engravings; source page labelled 433520SR; this listing sells one 433520S socket — Manufacturer representative photographs show the same-design 5/8-inch standard socket with a 1/2-inch drive. The source page is labelled 433520SR, while the detail photograph visibly bears 433520S and CR-V. This listing is model 433520S, 38 mm long, sold as one socket; no S/SR model or barcode equivalence is claimed.

Features and Use

5/8-inch 6-point opening: check the fastener across-flats size before choosing the socket.
Chrome-vanadium steel (Cr-V) with a polished, chrome-plated finish.
Standard short-body design and 1/2-inch square drive; the manufacturer specifies ANSI/ASME B107.1 for the imperial 4335S series.

Specifications

Brand	KING TONY
Model	433520S
Square drive	1/2 inch
Opening profile	Imperial 6-point
Across-flats size	5/8 inch
Overall length L	38 mm
Opening-end outside diameter D1	22.5 mm
Drive-end outside diameter D2	23.3 mm
Manufacturer dimension ℓ	11.0 mm
Weight	60 g
Material	Chrome-vanadium steel (Cr-V)
Finish	Polished and chrome plated
Standard	ANSI/ASME B107.1
Unit sold	One socket

What's in the Box

433520S 5/8-inch 6-point standard socket ×1
