KING TONY 433519S 19/32 in. 6-Point Standard Socket, 1/2 in. Drive

Brand: KING TONY
Manufacturer model number: 433519S
Order code: Y8EV6UL
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$140.00/ 顆~~Was $200.00~~-30%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 433519S is a 19/32-inch six-point standard socket for a 1/2-inch square-drive hand tool. Its 38 mm overall length suits maintenance and assembly work where an imperial six-point socket is required. Match both the fastener size and tool drive before use.

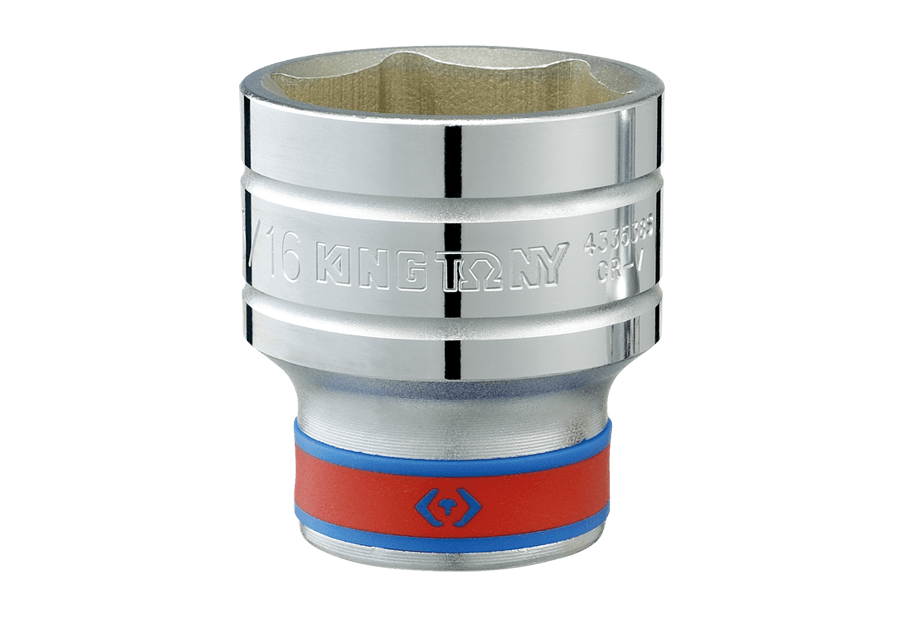

Manufacturer 4335SR-series standard six-point socket illustration; not an exact 19/32-inch 433519S photograph — Manufacturer 4335SR-series image of the same standard-socket design, not an exact-size photograph. Engraved model and size may differ. This listing is the 433519S, 19/32-inch six-point socket with a 1/2-inch drive and 38 mm overall length, sold individually. The illustration does not assert S/SR model equivalence.

Features and applications

19/32-inch six-point working end for correctly matched hex nuts and bolt heads.
1/2-inch square drive for hand-operated socket tools of the same drive size.
Chrome-vanadium steel construction with a polished, chrome-plated finish.
ANSI/ASME B107.1 is listed in the manufacturer historical catalogue. Specifications are verified against the full 433519S code, not inferred from 433519SR.

Manufacturer standard-socket diagram explaining D1, D2, working depth and overall length; 433519S values are in the table — This manufacturer standard-socket sectional diagram explains the D1, D2, working-depth and overall-length symbols. It is not a scale drawing of this size; use the verified 433519S values in the table.

Specifications

Model	433519S
Type	Imperial six-point standard hand socket
Socket opening	19/32 in.
Square drive	1/2 in.
Overall length L	38 mm
Working-end outside diameter D1	21.6 mm
Drive-end outside diameter D2	23.3 mm
Working depth ℓ	11.0 mm
Weight	65 g
Material	Chrome-vanadium steel (Cr-V)
Finish	Polished, chrome-plated
Manufacturer-listed standard	ANSI/ASME B107.1
Sale unit	One socket

Package contents

433519S 19/32-inch six-point standard socket ×1
