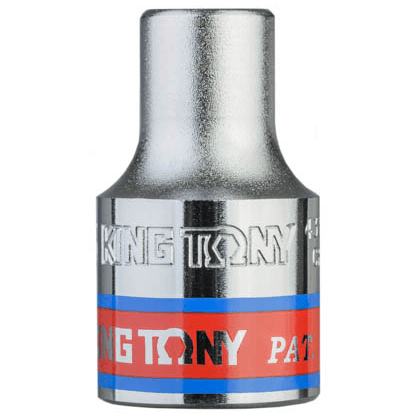

KING TONY 433510S 外觀示意正面；來源頁列 433510SR，不作版本等同承諾；本款為 1/2 吋方頭、5/16 吋六角套筒，按一顆出售

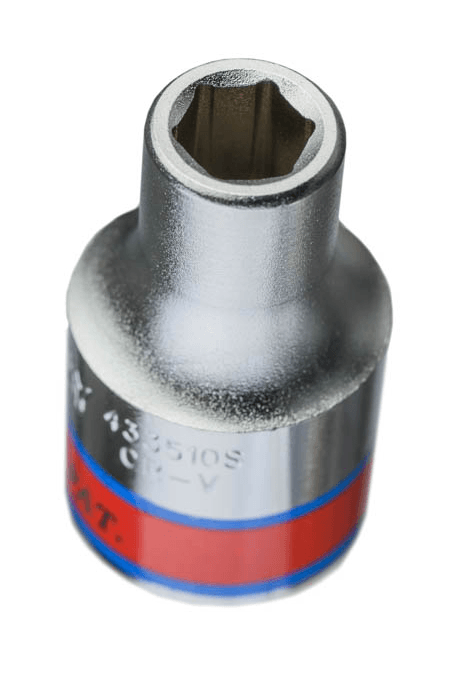

KING TONY 433510S 六角開口角度示意；來源頁列 433510SR，不作版本等同承諾；本款為 1/2 吋方頭、5/16 吋套筒，按一顆出售

KING TONY 433510S 5/16-inch 6-Point Socket, 1/2-inch Drive

Brand: KING TONY
Manufacturer model number: 433510S
Order code: Y8EDFIY
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$140.00/ 顆~~Was $200.00~~-30%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 433510S is a standard-length SAE six-point hand socket with a 5/16-inch opening and a 1/2-inch square drive. Its overall length is 38 mm. Chrome-vanadium steel construction and a polished, chrome-plated finish are specified in the manufacturer catalogue. This listing is for one socket, not a socket set.

Features

KING TONY illustrative six-point opening; source page 433510SR, not version-equivalence evidence; this listing is one 433510S, 1/2-inch drive, 5/16-inch socket — Illustrative photographs from a KING TONY authorized website; the close-up visibly reads 433510S. The source page lists 433510SR, which does not establish equivalence between versions. This listing is 433510S: 1/2-inch square drive, 5/16-inch six-point standard socket, 38 mm long, sold individually.

SAE six-point profile and 1/2-inch drive

Match both the 5/16-inch socket opening and the 1/2-inch drive to the fastener and hand tool. This standard hand socket is specified to ANSI/ASME B107.1.

Dimensions for checking fit and clearance

The socket-end diameter D1 is 13.2 mm, the drive-end diameter D2 is 21.8 mm, and the working depth is 7.0 mm. These dimensions help you check fastener fit and available access space.

Physical 433510S and CR-V body marking close-up; source page 433510SR, not version-equivalence evidence; this listing is one 433510S, 1/2-inch drive, 5/16-inch socket — Illustrative photographs from a KING TONY authorized website; the close-up visibly reads 433510S. The source page lists 433510SR, which does not establish equivalence between versions. This listing is 433510S: 1/2-inch square drive, 5/16-inch six-point standard socket, 38 mm long, sold individually.

Specifications

Brand	KING TONY
Model	433510S
Square drive	1/2 inch
Socket size	5/16 inch, SAE
Profile	6-point
Configuration	Standard-length hand socket
Overall length L	38 mm
Socket-end diameter D1	13.2 mm
Drive-end diameter D2	21.8 mm
Working depth ℓ	7.0 mm
Weight	60 g
Material	Chrome-vanadium steel (Cr-V)
Finish	Polished, chrome-plated
Standard	ANSI/ASME B107.1
Selling unit	One socket; workbook UOM 顆

Package Contents

KING TONY 433510S 5/16-inch six-point standard socket ×1
