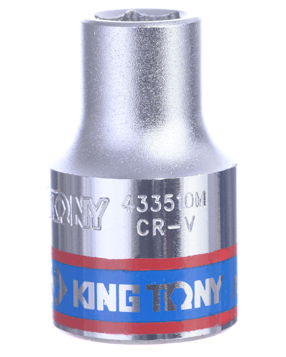

KING TONY 433510M 10 mm 六角標準卜頭實物示意，1/2 吋驅動，每顆一件

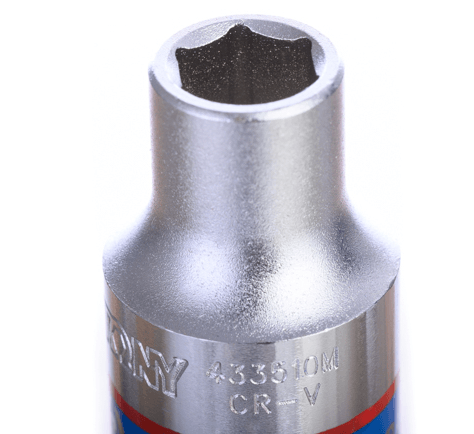

KING TONY 433510M 10 mm 六角標準套筒孔型近照，1/2 吋驅動，每顆一件

KING TONY 433510M 1/2-inch Drive 10 mm Six-Point Standard Socket

Brand: KING TONY
Manufacturer model number: 433510M
Order code: Y8EK8K1
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$140.00/ 顆~~Was $200.00~~-30%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

KING TONY 433510M is an individually sold 10 mm metric six-point standard hand socket with a 1/2-inch square drive. Its 38 mm body is intended for use with compatible hand ratchets, handles or extensions for hexagonal fasteners.

Features

10 mm six-point opening with a 1/2-inch square drive.
Chrome-vanadium alloy steel with a polished, chrome-plated finish.
Four ball-groove positions for drive retention.
Manufacturer specification references DIN 3124 and ISO 2725-1.

Official KING TONY 433510M 10 mm six-point standard socket illustration, 1/2-inch drive, one socket — Official regional KING TONY illustration of the 10 mm socket, visibly engraved 433510M. This listing is one 10 mm metric six-point standard socket with a 1/2-inch square drive, sold individually. Packaging versions are not promised by the photographs.

Specifications

Brand	KING TONY
Listing model	433510M
Square drive	1/2 in (12.7 mm)
Socket size	10 mm
Opening profile	Metric six-point
Configuration	Standard-length hand socket
Overall length L	38 mm
Working-end outside diameter D1	15.0 mm
Drive-end outside diameter D2	23.3 mm
Hex recess depth l	8.0 mm
Material	Chrome-vanadium alloy steel
Finish	Polished, chrome plated
Referenced standards	DIN 3124; ISO 2725-1
EAN	4710591923997
Sellable unit	One socket

KING TONY’s current published code for the matching EAN 4710591923997 is 433510MR. This listing retains the workbook’s ordering code 433510M; the dimensions above are corroborated by the same-EAN official regional record.

KING TONY 4335-series socket sectional dimension diagram; not a product photograph — Manufacturer’s 4335-series sectional diagram: D1 is the working-end outside diameter, D2 the drive-end outside diameter, l the hex recess depth and L the overall length. This is a diagram, not a product photograph; use the values in the specification table for this model.

What's in the Box

One KING TONY 433510M 10 mm socket ×1. Ratchet, handle and extensions are not included.
