KING TONY 433036S 1/2-inch Drive 1-1/8-inch 12-Point Standard Socket

Brand: KING TONY
Manufacturer model number: 433036S
Order code: Y8ET4JK
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$360.00/ 顆~~Was $510.00~~-29%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 433036S is a standard-length SAE 12-point socket with a 1/2-inch square drive and a 1-1/8-inch opening. Use it with a matching-drive manual ratchet or extension for fasteners of the specified size. Check both the drive and fastener dimensions when selecting a socket. This listing is sold as one individual socket.

Features and use

12-point opening for 1-1/8-inch SAE fasteners.
1/2-inch square drive for matching manual hand tools.
Chrome-vanadium (Cr-V) steel with a polished, chrome-plated finish.
Four ball-retaining grooves.
Manufacturer specification references ANSI/ASME B107.1.

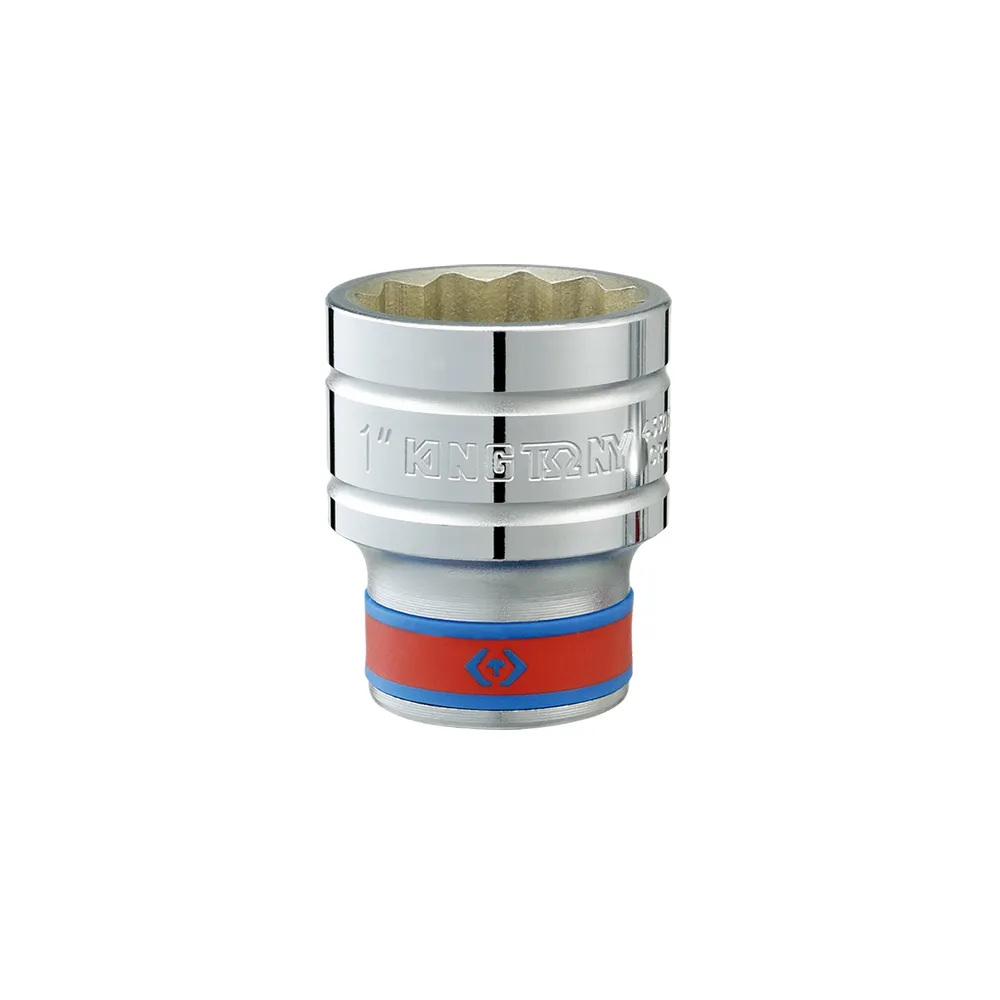

KING TONY 4330S-series 12-point standard socket representative photo marked 1 inch; this 433036S listing is 1-1/8 inch with a 1/2-inch square drive, sold individually — This is a same-design KING TONY 4330S-series representative standard-socket image. The photographed tool is visibly marked 1 inch; it is not an exact 1-1/8-inch 433036S photograph. This listing is the 1-1/8-inch 12-point socket with a 1/2-inch square drive, sold individually.

Specifications

Model	433036S
Square drive	1/2 inch
Socket size	1-1/8 inch
Opening	12-point
Type	Standard-length manual socket
Overall length L	44 mm
Working-end outside diameter D1	39.0 mm
Drive-end outside diameter D2	30.0 mm
Opening depth l	21.0 mm
Weight	160 g
Material	Chrome-vanadium steel (Cr-V)
Finish	Polished, chrome plated
Standard	ANSI/ASME B107.1
Priced unit	One socket (顆)

What's in the Box

433036S 1-1/8-inch 12-point standard socket ×1
