KING TONY 433034S 1/2-inch Drive 1-1/16-inch 12-Point Standard Socket

Brand: KING TONY
Manufacturer model number: 433034S
Order code: Y8EK7T6
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$340.00/ 顆~~Was $490.00~~-31%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

KING TONY 433034S is an imperial 12-point standard hand socket with a 1/2-inch square drive and a 1-1/16-inch opening. Its 42mm overall length helps you check working-space requirements when selecting a socket for a matching manual ratchet or handle.

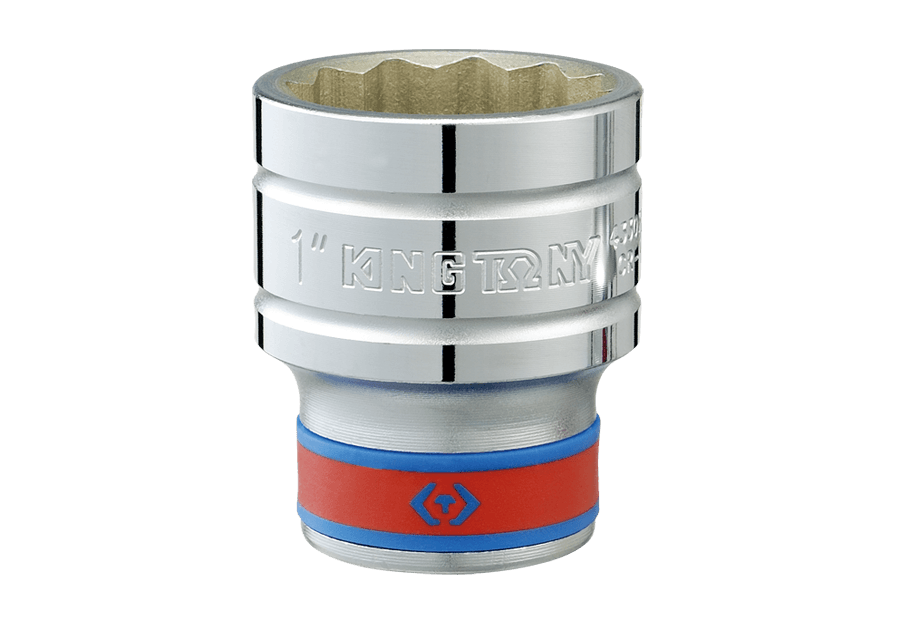

KING TONY manufacturer imperial 12-point standard socket representative image marked 1 inch; listed 433034S is 1-1/16 inch with a 1/2-inch drive, sold individually — Manufacturer representative image of the KING TONY 4330 imperial 12-point standard-socket design, from the current 4330SR series page. The pictured socket is marked 1 inch; this is not an exact-item photograph. This listing is model 433034S, size 1-1/16 inch, 1/2-inch drive, sold individually. The picture does not establish interchangeability between S and SR model codes.

Features

12-point opening in the specified 1-1/16-inch size.
Chrome-vanadium (Cr-V) steel with a polished, chrome-plated finish.
The original 4330S-series manufacturer catalogue lists ANSI/ASME B107.1.
One standard-length socket, not a socket set or deep socket.

Specifications

Brand	KING TONY
Model	433034S
Square drive	1/2 inch
Socket opening	1-1/16 inch
Profile	12-point
Opening-end diameter D1	36.6 mm
Drive-end diameter D2	28.0 mm
Working depth l	19.0 mm
Overall length L	42 mm
Weight	135 g (manufacturer catalogue)
Material	Chrome-vanadium steel (Cr-V)
Finish	Polished, chrome-plated
Standard	ANSI/ASME B107.1
Selling unit	One socket

KING TONY standard socket cross-section showing D1, D2, l and L measurement positions; technical diagram, not a product photograph — This diagram explains the D1, D2, l and L measurement positions only. Values below are from the exact 433034S row in the historical manufacturer catalogue, not an SR-model specification transfer.

What's in the Box

433034S 1/2-inch drive, 1-1/16-inch 12-point standard socket x1 (sold individually)

Reviews & Q&A

No reviews yet. Be the first to review this product.

Recently viewed

Features

12-point opening in the specified 1-1/16-inch size.
Chrome-vanadium (Cr-V) steel with a polished, chrome-plated finish.
The original 4330S-series manufacturer catalogue lists ANSI/ASME B107.1.
One standard-length socket, not a socket set or deep socket.

Specifications

Brand	KING TONY
Model	433034S
Square drive	1/2 inch
Socket opening	1-1/16 inch
Profile	12-point
Opening-end diameter D1	36.6 mm
Drive-end diameter D2	28.0 mm
Working depth l	19.0 mm
Overall length L	42 mm
Weight	135 g (manufacturer catalogue)
Material	Chrome-vanadium steel (Cr-V)
Finish	Polished, chrome-plated
Standard	ANSI/ASME B107.1
Selling unit	One socket

What's in the Box

433034S 1/2-inch drive, 1-1/16-inch 12-point standard socket x1 (sold individually)

JACO自營旗艦店

KING TONY 433034S 1/2-inch Drive 1-1/16-inch 12-Point Standard Socket

JACO自營旗艦店

Reviews & Q&A

Similar products

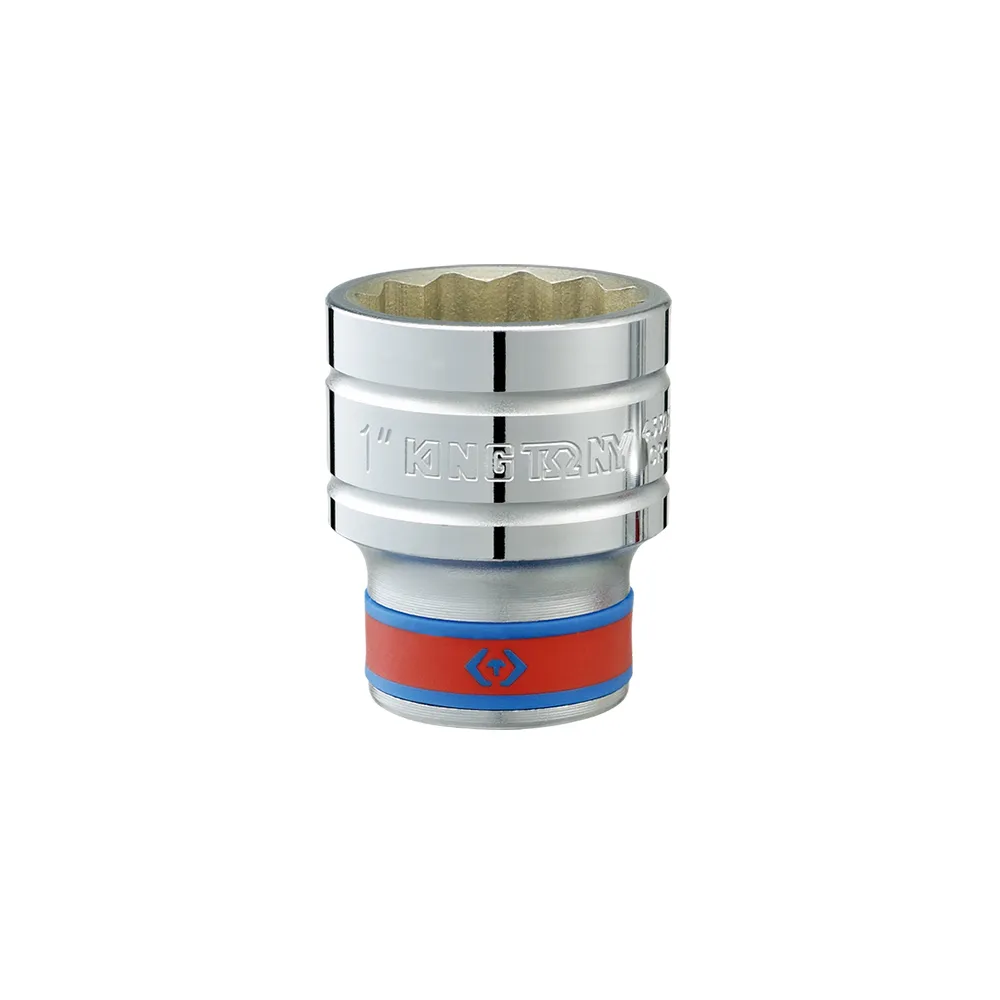

KING TONY 433016S 1/2-inch Drive 12-Point Standard Socket, 1/2-inch
