KING TONY 同尺寸標準套筒示意；本款 433026S、1/2 吋驅動、13/16 吋十二角；來源頁型號 433026SR

KING TONY 433026S 1/2-inch Drive 13/16-inch 12-Point Standard Socket

Brand: KING TONY
Manufacturer model number: 433026S
Order code: Y8E4JUF
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$240.00/ 顆~~Was $340.00~~-29%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

KING TONY 433026S is a 13/16-inch SAE 12-point standard socket with a 1/2-inch square drive. It is intended for matching-size nuts and bolts and has a 38 mm overall length. The chrome-vanadium alloy-steel body has a polished, chrome-plated finish. The price covers one individual socket, not a set or a carton.

Features and use

1/2-inch square drive for matching manual socket tools.
13/16-inch SAE 12-point working end; match the socket to the fastener size before use.
Standard body with 38 mm overall length, 28.6 mm working-end diameter and 23.2 mm drive-end diameter.
Chrome-vanadium alloy steel with a polished, chrome-plated finish; the manufacturer lists ANSI/ASME B107.1 for the 4330S series.

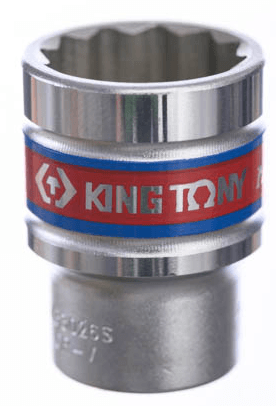

KING TONY same-size representative socket, Upright view; listed 433026S, 1/2-inch drive, 13/16-inch 12-point; source page 433026SR — KING TONY Brazil same-size standard-socket representative photographs; the source page uses code 433026SR. No S/SR model equivalence is asserted. This listing is 433026S: 1/2-inch square drive, 13/16-inch 12-point standard socket, sold as one individual socket.

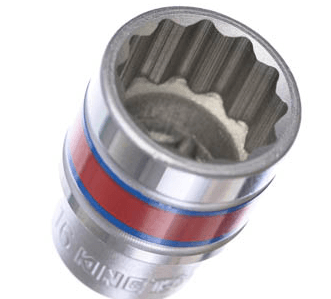

KING TONY same-size representative socket, Angled view of the 12-point opening; listed 433026S, 1/2-inch drive, 13/16-inch 12-point; source page 433026SR — KING TONY Brazil same-size standard-socket representative photographs; the source page uses code 433026SR. No S/SR model equivalence is asserted. This listing is 433026S: 1/2-inch square drive, 13/16-inch 12-point standard socket, sold as one individual socket.

Specifications

Brand	KING TONY
Model	433026S
Square drive	1/2 inch
Socket size	13/16 inch SAE
Profile	12-point
Type	Standard socket
Working-end outside diameter D1	28.6 mm
Drive-end outside diameter D2	23.2 mm
Working-end depth ℓ	13.0 mm
Overall length L	38 mm
Weight	95 g
Material	Chrome-vanadium alloy steel (Cr-V)
Finish	Polished and chrome plated
Standard	ANSI/ASME B107.1
Sellable unit	One individual socket

What's in the Box

433026S 13/16-inch 12-point standard socket ×1
