Name: KING TONY 433020M 1/2-inch Drive 20 mm 12-point Standard Socket
Brand: KING TONY
SKU: KT-433020M
Price: 190 TWD
Availability: InStock

KING TONY 433020M is a metric 12-point standard socket with a 1/2-inch square drive, 20 mm nominal opening and 38 mm overall length. Pair it with a matching-drive manual ratchet or socket tool for 20 mm fasteners. This listing is for one socket, not a socket set.

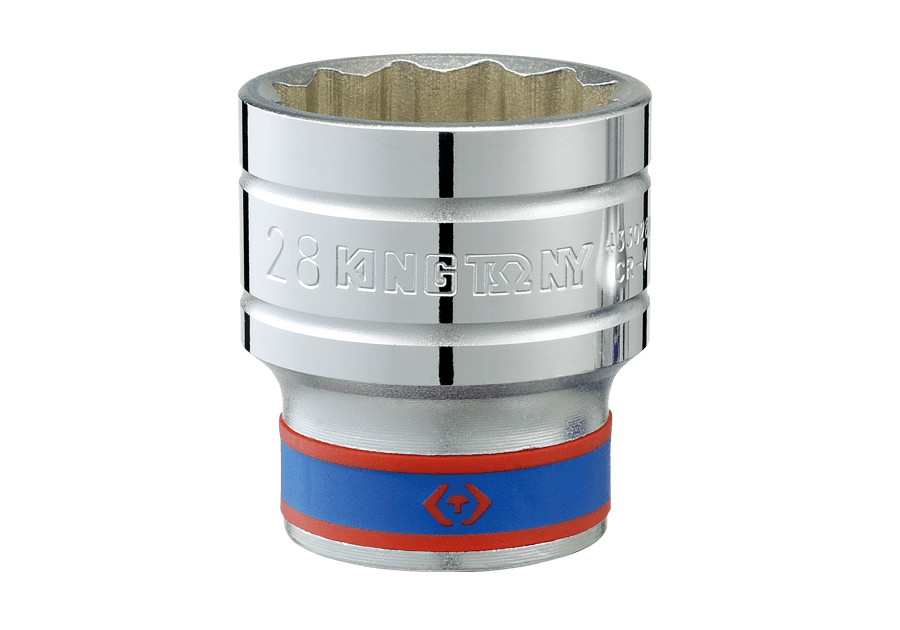

KING TONY 4330M-series twelve-point standard socket representative image marked 28 mm; this433020M listing is20mm and sold individually — Manufacturer-supplied 4330M-series same-design representative image. The photographed socket is marked 28 mm; it is not an exact 20 mm photograph. This listing is 433020M, a 20 mm socket with 1/2-inch drive, sold individually.

Features

20 mm metric 12-point opening provides multiple engagement positions.
Chrome-vanadium steel construction with a polished, chrome-plated finish.
1/2-inch square drive for matching manual socket tools.
Specified to DIN 3124 and ISO 2725-1.

KING TONY standard socket dimension-position diagram D1,D2,l,L; use the specification table for433020M dimensions — The diagram identifies standard-socket dimension positions and is not a product photograph. Use the specification table below for the actual 433020M dimensions.

Specifications

Manufacturer model	433020M
Series	4330M
Square drive	1/2 inch (12.7 mm)
Nominal socket size	20 mm
Socket profile	12-point
Body style	Standard
Overall length L	38 mm
Working-end outside diameter D1	27.9 mm
Drive-end outside diameter D2	23.2 mm
Internal dimension l	13.0 mm
Weight	86 g
Material	Chrome-vanadium steel (Cr-V)
Finish	Polished, chrome-plated
Standards	DIN 3124、ISO 2725-1
Sales unit	One socket

What's in the Box

433020M 20 mm 12-point standard socket ×1. A ratchet, extension bar and other sockets are not included in this single-socket listing.

Features

20 mm metric 12-point opening provides multiple engagement positions.
Chrome-vanadium steel construction with a polished, chrome-plated finish.
1/2-inch square drive for matching manual socket tools.
Specified to DIN 3124 and ISO 2725-1.

Specifications

Manufacturer model	433020M
Series	4330M
Square drive	1/2 inch (12.7 mm)
Nominal socket size	20 mm
Socket profile	12-point
Body style	Standard
Overall length L	38 mm
Working-end outside diameter D1	27.9 mm
Drive-end outside diameter D2	23.2 mm
Internal dimension l	13.0 mm
Weight	86 g
Material	Chrome-vanadium steel (Cr-V)
Finish	Polished, chrome-plated
Standards	DIN 3124、ISO 2725-1
Sales unit	One socket

What's in the Box

433020M 20 mm 12-point standard socket ×1. A ratchet, extension bar and other sockets are not included in this single-socket listing.
