KING TONY 433015S 15/32-inch 12-point socket, 1/2-inch drive

Brand: KING TONY
Manufacturer model number: 433015S
Order code: Y8EQWU4
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$140.00/ 顆~~Was $200.00~~-30%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 433015S is an imperial 15/32-inch 12-point standard socket for a 1/2-inch square-drive hand-tool system. The socket is made from chrome-vanadium alloy steel with a polished, chrome-plated finish. This price covers one socket.

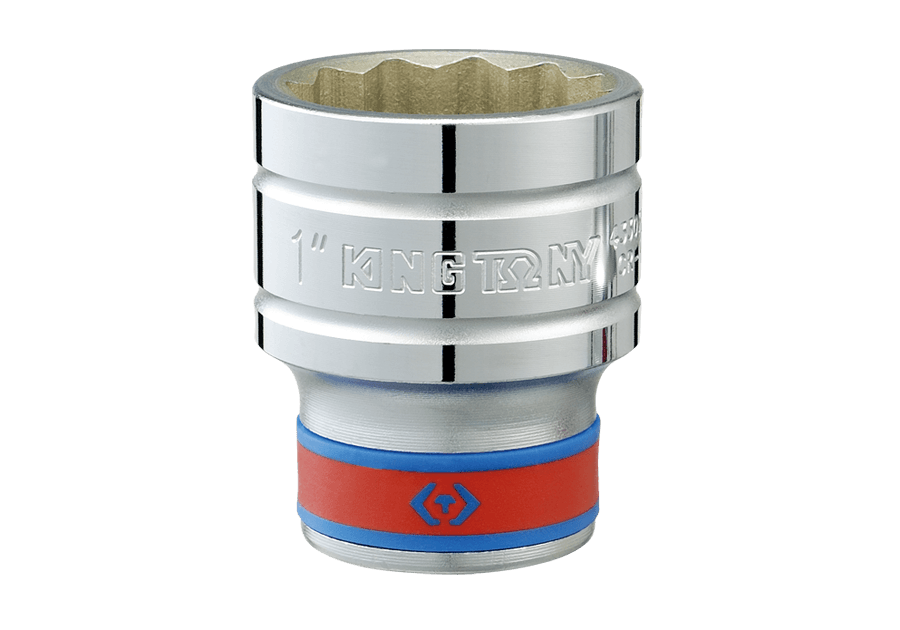

KING TONY 4330S/4330SR representative socket on white, engraved 1 inch; listing 433015S is 15/32 inch with 1/2-inch drive, sold individually — Manufacturer 4330S/4330SR series representative image. The photographed socket is engraved 1 inch and is not an exact 15/32-inch product photograph. This listing is the 433015S 15/32-inch 12-point standard socket with a 1/2-inch square drive, sold individually.

Features

15/32-inch imperial opening with a 12-point profile.
1/2-inch square drive with four ball-retention grooves.
38 mm overall length, with an 8 mm opening depth.
Chrome-vanadium construction and a polished, chrome-plated finish.
Imperial socket specification: ANSI/ASME B107.1.

General KING TONY standard socket cross-section with D1, D2, l and L dimension markers, not an exact-size photograph — General manufacturer series cross-section showing D1, D2, opening depth l and overall length L. This is a geometry diagram, not an exact-size product photograph; the table below gives the specifications for 433015S.

Technical specifications

Brand	KING TONY
Model	433015S
Socket size	15/32 inch
Square drive	1/2 inch
Profile	12-point imperial standard socket
Overall length L	38 mm
Working-end outside diameter D1	18.0 mm
Drive-end outside diameter D2	23.3 mm
Opening depth l	8.0 mm
Material	Chrome-vanadium alloy steel (Cr-V)
Finish	Polished, chrome-plated
Standard	ANSI/ASME B107.1
EAN	4710591923812
Selling unit	One socket

Contents per priced unit

KING TONY 433015S 15/32-inch 12-point standard socket, 1/2-inch drive ×1
