KING TONY 333009M 3/8-Inch Drive 9 mm 12-Point Standard Socket
Hand Tools
$80.00/ 顆
$110.00
No downloads available yet
Contact JACO if you need a datasheet, certificate or another technical document.

$140.00/ 顆Was $200.00-30%

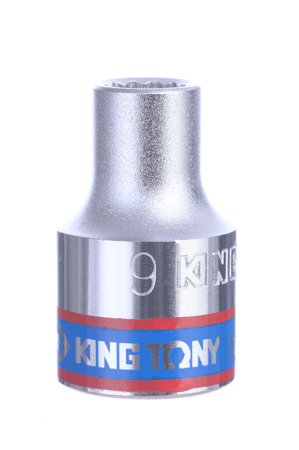

KING TONY 433009M is a 9 mm metric twelve-point standard socket with a 1/2-inch square drive and 38 mm overall length. It is a single manual socket for use with a matching square-drive hand tool, not a multi-size socket set.

| Model | 433009M |
|---|---|
| Series | 4330M |
| Square drive | 1/2″ |
| Socket size | 9 mm |
| Working profile | 12-point |
| Socket style | Standard length |
| Overall length L | 38 mm |
| Working-end outside diameter D1 | 14.0 mm |
| Drive-end outside diameter D2 | 23.3 mm |
| Working-end depth l | 7.0 mm |
| Material | Chrome-vanadium alloy steel (Cr-V) |
| Finish | Polished and chrome-plated |
| Standards | DIN 3124, ISO 2725-1 |
| Selling unit | One socket (workbook UOM: 顆) |
Sold as one socket, not the complete size range.
