KING TONY 423536M 1/2-inch Drive 36 mm 6-Point Deep Socket

Brand: KING TONY
Manufacturer model number: 423536M
Order code: Y8EEH5B
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$1,000.00/ 顆~~Was $1,430.00~~-30%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 423536M is a metric 36 mm six-point deep socket with a 1/2-inch square-drive connection for matching manual socket tools. Its 77 mm body serves applications that require a deep socket. Check the fastener size and surrounding clearance before choosing a socket.

Features

36 mm metric six-point working end with a deep-socket body.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four ball-retention grooves at the drive end.
Manufacturer lists DIN 3124 and ISO 2725-1.

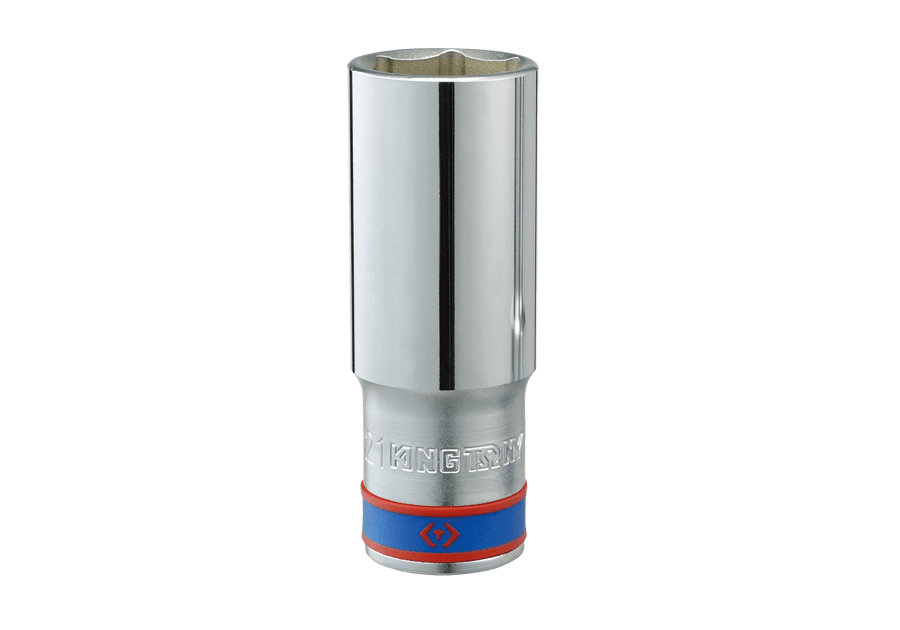

KING TONY 4235M-series six-point deep socket representative, not an exact 423536M 36 mm photograph; this listing is the 1/2-inch-drive 36 mm socket sold individually — This is the manufacturer’s representative photograph for the KING TONY 4235M series, not a verified exact-size photograph of the 423536M 36 mm model. Appearance and size markings may differ. This listing is the 1/2-inch-drive, 36 mm socket with a 77 mm overall length, sold individually.

Specifications

Brand	KING TONY
Model	423536M
Square drive	1/2 inch
Socket type	Metric six-point deep socket
Opening size	36 mm
Working-end diameter D1	46.8 mm
Drive-end diameter D2	40.5 mm
Diagram dimension l	36 mm
Overall length L	77 mm
Weight	478 g
Material	Chrome vanadium alloy steel
Finish	Polished, chrome-plated
Retention design	Four ball-retention grooves
Manufacturer-listed standards	DIN 3124; ISO 2725-1
Sales unit	One socket

Official KING TONY 4235M-series sectional dimension diagram with D1, D2, l and L labels; actual 423536M values are in the specification table — Official 4235M-series sectional dimension diagram. D1, D2, l and L are dimension labels, not numeric measurements or a to-scale product photograph. Refer to the table above for the actual 423536M dimensions.

What’s in the Box

KING TONY 423536M 1/2-inch-drive 36 mm six-point deep socket ×1
