KING TONY 423528M 28 mm 1/2-inch Drive 6-Point Deep Socket

Brand: KING TONY
Manufacturer model number: 423528M
Order code: Y8E3Y10
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$470.00/ 顆~~Was $670.00~~-30%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 423528M is a 28 mm metric 6-point deep socket with a 1/2-inch square drive and a 77 mm overall length. Select it for hexagonal nuts or bolt heads with a 28 mm across-flats dimension and use a matching square-drive tool. This listing is one 423528M socket, not a 28/29 mm two-piece set.

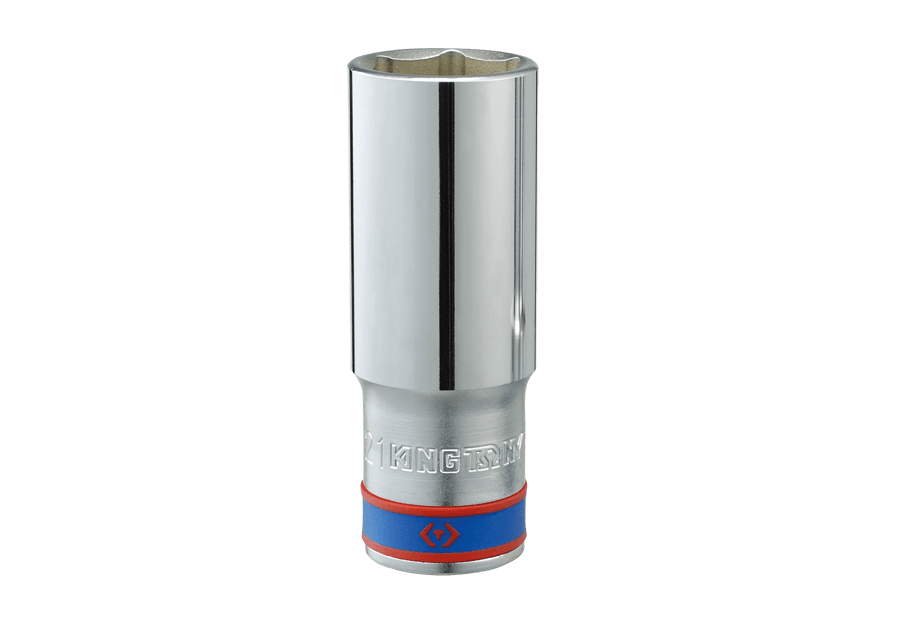

Manufacturer's KING TONY 4235M-series deep-socket representative image; pictured markings may differ. This listing is 423528M, 28 mm, 1/2-inch drive, one socket. — Manufacturer-supplied KING TONY 4235M-series representative image. The pictured size engraving may differ; this is not an exact 28 mm product photograph. This listing is model 423528M: 28 mm, 1/2-inch square drive, 77 mm long, sold individually.

Features and selection

Metric 28 mm six-point working end for matching hexagonal fasteners.
1/2-inch square drive with four ball grooves for drive-tool positioning.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
The manufacturer specifies DIN 3124 and ISO 2725-1.

Specifications

Brand	KING TONY
Model	423528M
Series	4235M
Square drive	1/2 inch (12.7 mm)
Working profile	Metric 6-point
Across-flats size	28 mm
Overall length L	77 mm
Working-end outside diameter D1	37.8 mm
Drive-end outside diameter D2	32.5 mm
Drawing dimension l	34 mm
Weight	281 g
Material	Chrome vanadium alloy steel
Finish	Polished, chrome plated
Positioning feature	Four ball grooves
Specified standards	DIN 3124; ISO 2725-1
Selling unit	One socket

KING TONY 4235M deep-socket section diagram showing D1, D2, l and L; refer to the table for actual 423528M dimensions. — Manufacturer's 4235M-series section diagram showing D1, D2, l and L. The table gives the actual 423528M values; do not measure dimensions from the schematic.

What is included

KING TONY 423528M 28 mm metric 6-point deep socket × 1
