KING TONY 423022S 1/2-Inch Drive 11/16-Inch 12-Point Deep Socket
Hand Tools
$280.00/ 顆
$400.00
No downloads available yet
Contact JACO if you need a datasheet, certificate or another technical document.

$280.00/ 顆Was $400.00-30%

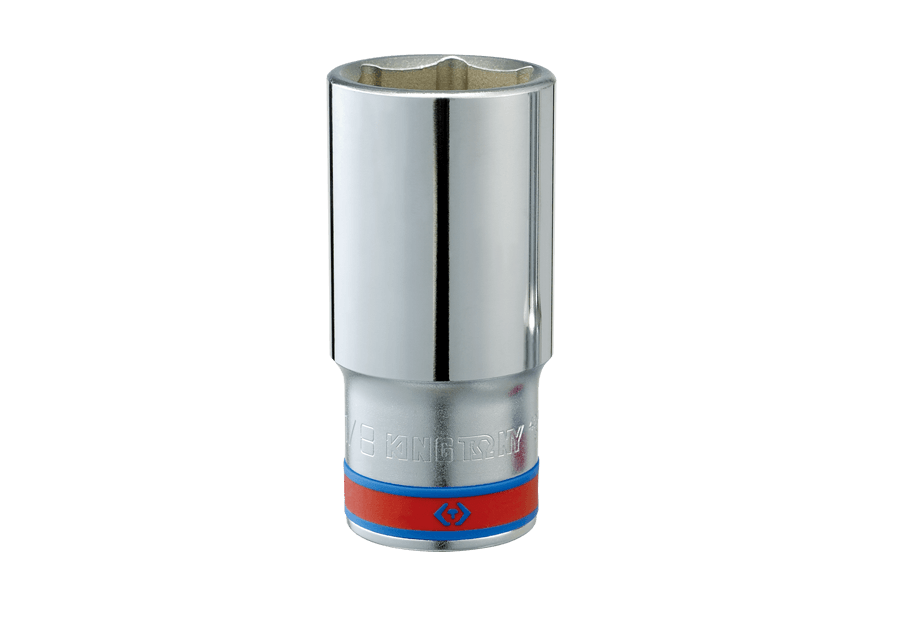

The KING TONY 423522S is an 11/16-inch six-point deep socket for compatible 1/2-inch square-drive tools. Its overall length is 77 mm. Match both the drive size and the fastener size before use. This listing is for one socket, not a socket set.


| Model | 423522S |
|---|---|
| Series | 4235S |
| Square drive | 1/2 inch |
| Socket size | 11/16 inch |
| Profile | 6-point |
| Configuration | Deep socket |
| Working-end outside diameter D1 | 23.7 mm |
| Drive-end outside diameter D2 | 22.5 mm |
| Illustrated internal depth l | 35 mm |
| Overall length L | 77 mm |
| Weight | 124 g |
| Material | Chrome vanadium alloy steel |
| Finish | Polished and chrome-plated |
| Retention | Four ball-retaining grooves |
| Manufacturer-specified standard | ANSI/ASME B107.1 |
| Sale unit | One socket |
