Name: KING TONY 423522M 1/2-inch Drive 22 mm Six-Point Deep Socket
Brand: KING TONY
SKU: KT-423522M
Price: 320 TWD
Availability: InStock

The KING TONY 423522M is a 22 mm metric six-point deep socket for 1/2-inch square-drive hand tools. Its overall length is 77 mm and working-end depth l is 35 mm, providing clear dimensions for checking fastener size and access space.

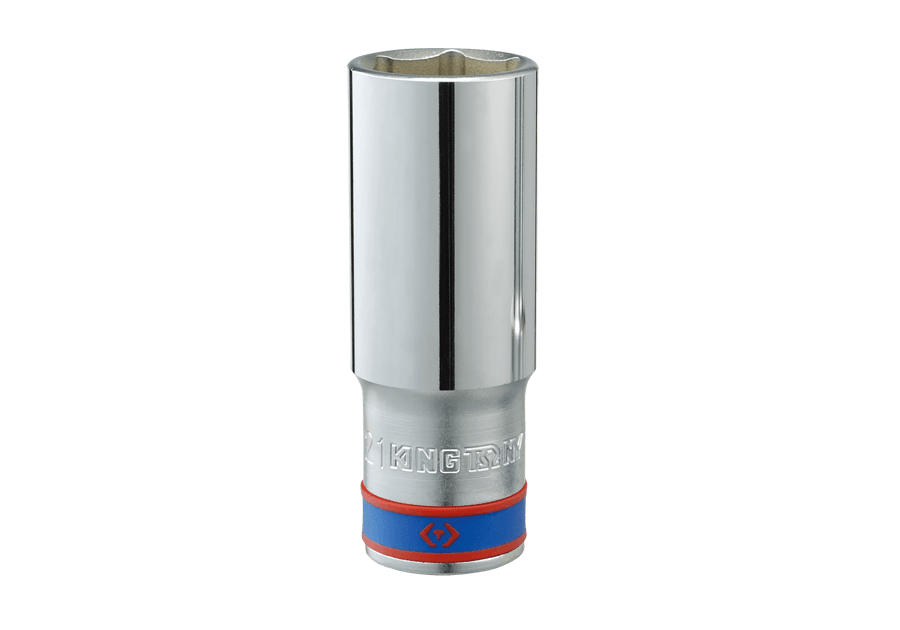

KING TONY 4235M-series representative deep socket photo, marked 21; this listing is the 423522M 22 mm socket, sold individually — Manufacturer-supplied 4235M-series representative photograph: the pictured socket is marked 21, not an exact photograph of this size. This listing is model 423522M, a 22 mm, 1/2-inch square-drive deep socket, sold as one socket.

Features

22 mm six-point working end with a 1/2-inch square drive.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four ball-retaining grooves at the drive end.
Manufacturer lists DIN 3124 and ISO 2725-1.

Specifications

Brand	KING TONY
Model	423522M
Nominal size	22 mm
Working profile	Metric, six-point
Square drive	1/2 inch
Overall length L	77 mm
Working-end depth l	35 mm
Working-end diameter D1	29.8 mm
Drive-end diameter D2	26.0 mm
Weight	185 g
Material	Chrome vanadium alloy steel
Finish	Polished, chrome-plated
Standards	DIN 3124; ISO 2725-1
Sold unit	One socket

KING TONY 4235M-series dimensional section drawing showing D1, D2, l and L; use this model's specification table for values — Series dimension-definition drawing, not a product photograph. For model 423522M, D1 = 29.8 mm, D2 = 26.0 mm, l = 35 mm and L = 77 mm; refer to this listing's specification table.

What's in the Box

423522M 22 mm six-point deep socket × 1

Features

22 mm six-point working end with a 1/2-inch square drive.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four ball-retaining grooves at the drive end.
Manufacturer lists DIN 3124 and ISO 2725-1.

Specifications

Brand	KING TONY
Model	423522M
Nominal size	22 mm
Working profile	Metric, six-point
Square drive	1/2 inch
Overall length L	77 mm
Working-end depth l	35 mm
Working-end diameter D1	29.8 mm
Drive-end diameter D2	26.0 mm
Weight	185 g
Material	Chrome vanadium alloy steel
Finish	Polished, chrome-plated
Standards	DIN 3124; ISO 2725-1
Sold unit	One socket

What's in the Box

423522M 22 mm six-point deep socket × 1
