Name: KING TONY 423519M 19 mm 1/2-Inch Drive Six-Point Deep Socket
Brand: KING TONY
SKU: KT-423519M
Price: 300 TWD
Availability: InStock

KING TONY 423519M is an individual 19 mm metric six-point deep socket with a 1/2-inch square drive. Its 77 mm overall length and 35 mm socket depth distinguish this exact size in the manufacturer’s 4235M range.

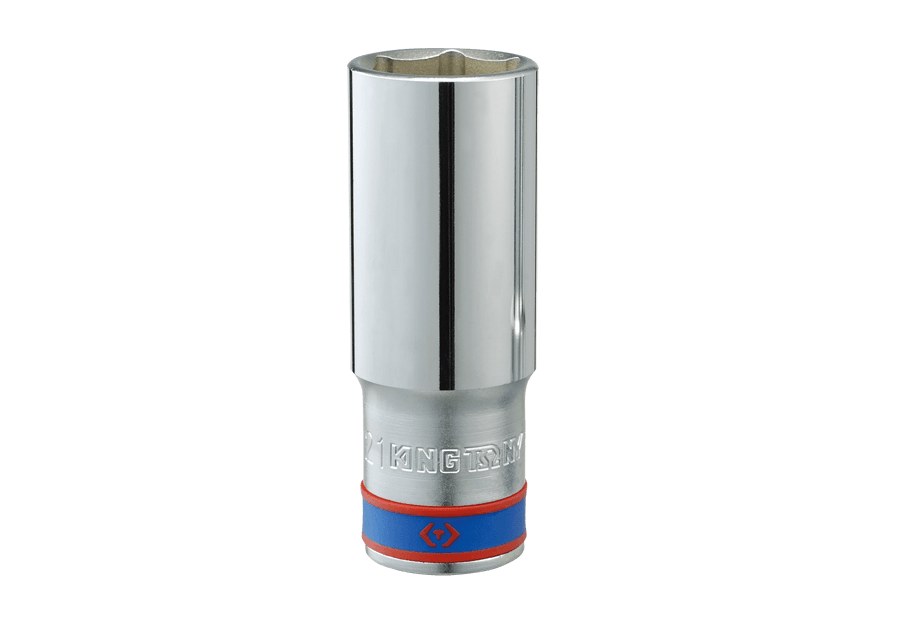

KING TONY 4235M-series deep six-point socket representative photo marked 21; this 423519M is 19 mm with 1/2-inch drive, sold individually — Manufacturer’s 4235M-series representative photograph. The physical socket in the image is marked 21; this listing is the 19 mm 423519M, with a 1/2-inch drive and 77 mm length, sold as one socket, not a set.

Features

Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four ball-retaining grooves for drive engagement.
Manufactured to DIN 3124 and ISO 2725-1.
Choose a matching 1/2-inch hand-tool drive and a 19 mm hexagonal fastener.

Manufacturer 4235M-series sectional diagram showing D1, D2, l and L; see this page for exact 423519M dimensions — Manufacturer’s 4235M-series sectional diagram, not a product photograph. D1 is the socket-end outside diameter, D2 the drive-end outside diameter, ℓ the socket depth and L the overall length. Use the exact values below for 423519M.

Specifications

Brand	KING TONY
Model	423519M
Profile	Metric, six-point, deep socket
Square drive	1/2 inch
Socket size	19 mm
D1 — socket-end outside diameter	25.7 mm
D2 — drive-end outside diameter	23.2 mm
ℓ — socket depth	35 mm
L — overall length	77 mm
Weight	133 g
Material	Chrome vanadium alloy steel
Finish	Polished, chrome plated
Standards	DIN 3124; ISO 2725-1
Selling unit	One socket; workbook UOM 顆

Package contents

423519M 19 mm 1/2-inch drive deep socket × 1

Features

Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four ball-retaining grooves for drive engagement.
Manufactured to DIN 3124 and ISO 2725-1.
Choose a matching 1/2-inch hand-tool drive and a 19 mm hexagonal fastener.

Specifications

Brand	KING TONY
Model	423519M
Profile	Metric, six-point, deep socket
Square drive	1/2 inch
Socket size	19 mm
D1 — socket-end outside diameter	25.7 mm
D2 — drive-end outside diameter	23.2 mm
ℓ — socket depth	35 mm
L — overall length	77 mm
Weight	133 g
Material	Chrome vanadium alloy steel
Finish	Polished, chrome plated
Standards	DIN 3124; ISO 2725-1
Selling unit	One socket; workbook UOM 顆

Package contents

423519M 19 mm 1/2-inch drive deep socket × 1
