Name: KING TONY 423517M 1/2-inch Drive 17 mm 6-Point Deep Socket
Brand: KING TONY
SKU: KT-423517M
Price: 280 TWD
Availability: InStock

The KING TONY 423517M is a 17 mm metric 6-point deep socket for compatible 1/2-inch square-drive tools. Its 77 mm body provides reach for recessed hexagonal nuts. This listing is for one socket, not a multi-size socket set.

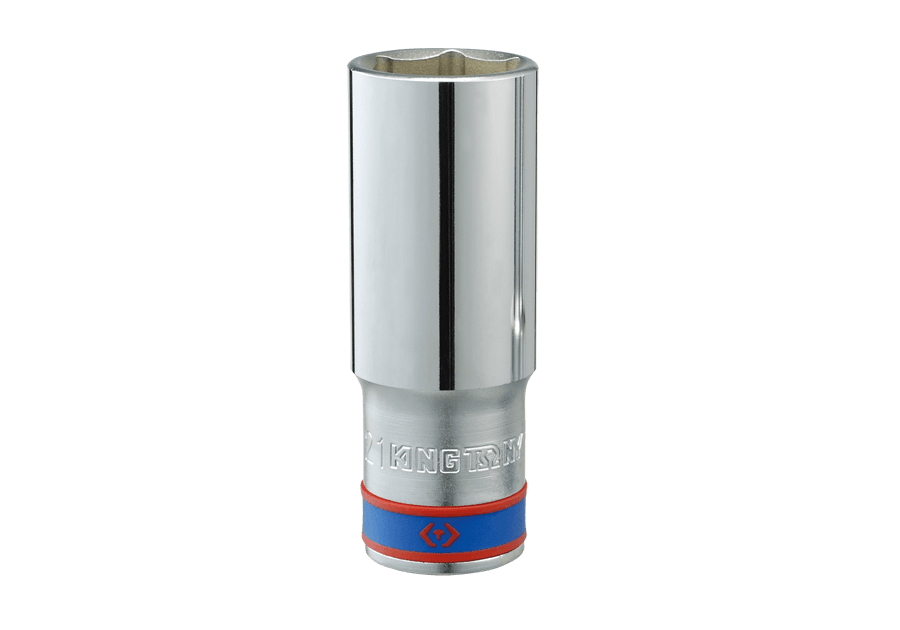

Manufacturer 4235M-series representative deep socket marked 21; this 423517M listing is the 17 mm size, sold individually — Manufacturer's 4235M-series representative image: the pictured socket is marked 21, not the 17 mm size sold here. This listing is model 423517M, 1/2-inch drive, 17 mm, sold individually.

Features

17 mm metric 6-point working end for matching hexagonal nuts.
Chrome-vanadium alloy steel with a polished, chrome-plated finish.
Four-ball locating groove design for compatible square-drive tools.
Manufacturer specifications reference DIN 3124 and ISO 2725-1.

Specifications

Brand	KING TONY
Model	423517M
Series	4235M
Size and profile	17 mm; metric 6-point
Square drive	1/2 inch
Working-end outside diameter D1	23.7 mm
Drive-end outside diameter D2	23.2 mm
Internal hex depth ℓ	35 mm
Overall length L	77 mm
Weight	127 g
Material and finish	Chrome-vanadium alloy steel; polished and chrome plated
Referenced standards	DIN 3124; ISO 2725-1
Selling unit	One socket (顆)

Manufacturer 4235M-series socket cross-section indicating D1, D2, internal depth ℓ and overall length L; see table for 423517M dimensions — This manufacturer series cross-section is a technical diagram, not a product photograph. It identifies D1, D2, ℓ and L; use the 423517M values in the specification table.

What is included

KING TONY 423517M 17 mm 6-point deep socket ×1

Features

17 mm metric 6-point working end for matching hexagonal nuts.
Chrome-vanadium alloy steel with a polished, chrome-plated finish.
Four-ball locating groove design for compatible square-drive tools.
Manufacturer specifications reference DIN 3124 and ISO 2725-1.

Specifications

Brand	KING TONY
Model	423517M
Series	4235M
Size and profile	17 mm; metric 6-point
Square drive	1/2 inch
Working-end outside diameter D1	23.7 mm
Drive-end outside diameter D2	23.2 mm
Internal hex depth ℓ	35 mm
Overall length L	77 mm
Weight	127 g
Material and finish	Chrome-vanadium alloy steel; polished and chrome plated
Referenced standards	DIN 3124; ISO 2725-1
Selling unit	One socket (顆)

What is included

KING TONY 423517M 17 mm 6-point deep socket ×1
