KING TONY 423516M 1/2-Inch Drive 16 mm 6-Point Deep Socket

Brand: KING TONY
Manufacturer model number: 423516M
Order code: Y8E6TER
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$280.00/ 顆~~Was $400.00~~-30%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 423516M is a 16 mm metric 6-point deep socket for 1/2-inch square-drive tools. Its 77 mm overall length and published end diameters help you check the required fit and clearance before ordering. This listing is for one 16 mm socket, not a 15/16/17 mm multi-size set.

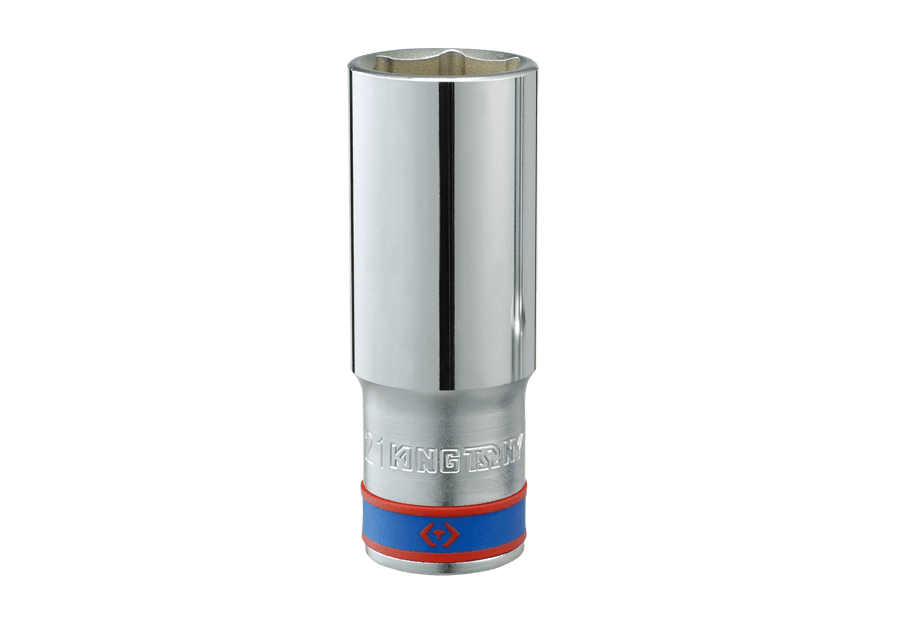

KING TONY 4235M-series deep socket representative photo marked 21; this 423516M listing is 16 mm, 1/2-inch drive, sold individually — Manufacturer's KING TONY 4235M-series representative photograph: the pictured socket is marked 21 and is not an exact photograph of the 16 mm item. This listing is model 423516M, 16 mm, 1/2-inch drive, sold individually.

Features

Chrome vanadium alloy steel with a polished, chrome-plated finish.
16 mm metric 6-point opening; check the fastener size and square-drive connection before use.
Four ball-retaining grooves, as specified by the manufacturer.
Manufacturer lists DIN 3124 and ISO 2725-1.

Specifications

Model	423516M
Square drive	1/2 inch
Socket size	16 mm
Opening	6-point
Type	Metric deep socket
Overall length L	77 mm
Working-end diameter D1	22.6 mm
Drive-end diameter D2	23.7 mm
Internal working depth l	35 mm
Weight	130 g
Material / finish	Chrome vanadium alloy steel / polished, chrome plated
Retention	4 ball-retaining grooves
Listed standards	DIN 3124, ISO 2725-1
Pricing unit	顆 (one socket)

KING TONY 4235M-series socket dimension diagram showing D1, D2, l and L; see this 423516M specification table for actual values — The manufacturer's series section drawing explains the dimension symbols only. For this 423516M: D1 = 22.6 mm, D2 = 23.7 mm, l = 35 mm and L = 77 mm. Use the model-specific table for actual values.

Package contents

KING TONY 423516M 16 mm 6-point deep socket ×1
