Name: KING TONY 423514M 14 mm 1/2-inch Drive 6-Point Deep Socket
Brand: KING TONY
SKU: KT-423514M
Price: 250 TWD
Availability: InStock

The KING TONY 423514M is a 14 mm metric 6-point deep socket with a 1/2-inch square drive. Its 77 mm overall length and 35 mm working depth provide a deep socket configuration for hex fasteners when used with matching manual drive tools. This listing is for one socket, not a socket set.

Features

14 mm metric 6-point opening with a 1/2-inch square drive.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four ball-retaining recesses; specified to DIN 3124 and ISO 2725-1.

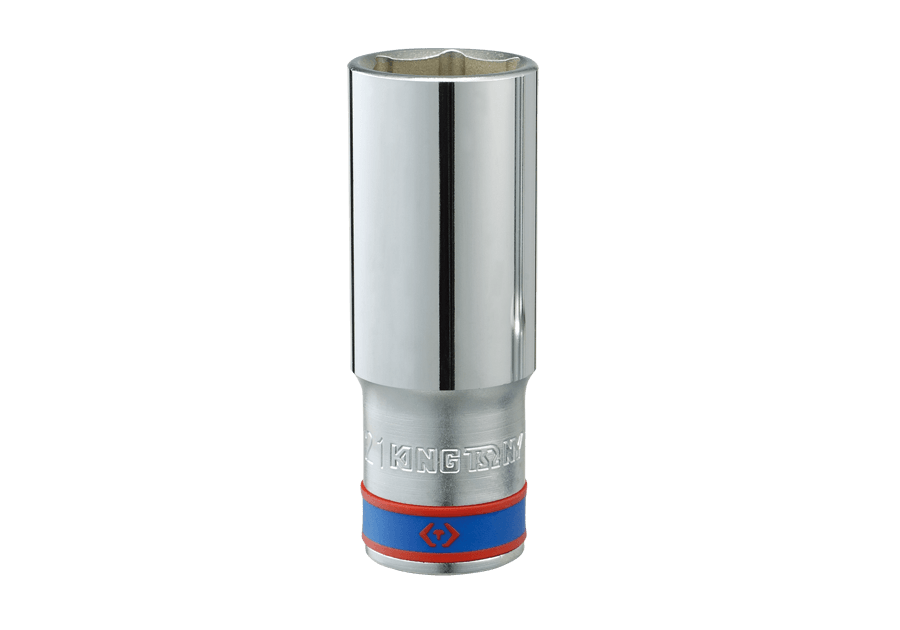

Manufacturer 4235M-series representative deep socket photograph with visible 21 marking; this 423514M listing is 14 mm, 1/2-inch drive and 77 mm long, sold individually. — Manufacturer-supplied KING TONY 4235M-series representative photograph. The pictured socket is marked 21 and is not an exact photograph of this 14 mm item. This 423514M listing is 14 mm with a 1/2-inch drive and 77 mm overall length, sold individually.

Specifications

Brand	KING TONY
Manufacturer model	423514M
Series	4235M
Across-flats size	14 mm
Square drive	1/2 inch
Socket profile	Metric 6-point
D1 (socket-end outside diameter)	20.2 mm
D2 (drive-end outside diameter)	23.7 mm
Working depth l	35 mm
Overall length L	77 mm
Weight	121 g
Material / finish	Chrome vanadium alloy steel / polished, chrome plated
Standards	DIN 3124, ISO 2725-1
Sold unit	1 socket

Manufacturer 4235M-series cross-section dimension diagram labelled D1, D2, l and L; use the specification table for exact 423514M values. — This is a 4235M-series cross-section dimension diagram, not a product photograph. Exact 423514M dimensions are D1 = 20.2 mm, D2 = 23.7 mm, l = 35 mm and L = 77 mm.

Package contents

423514M 14 mm 1/2-inch drive 6-point deep socket × 1

Features

14 mm metric 6-point opening with a 1/2-inch square drive.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four ball-retaining recesses; specified to DIN 3124 and ISO 2725-1.

Specifications

Brand	KING TONY
Manufacturer model	423514M
Series	4235M
Across-flats size	14 mm
Square drive	1/2 inch
Socket profile	Metric 6-point
D1 (socket-end outside diameter)	20.2 mm
D2 (drive-end outside diameter)	23.7 mm
Working depth l	35 mm
Overall length L	77 mm
Weight	121 g
Material / finish	Chrome vanadium alloy steel / polished, chrome plated
Standards	DIN 3124, ISO 2725-1
Sold unit	1 socket

Package contents

423514M 14 mm 1/2-inch drive 6-point deep socket × 1
