Name: KING TONY 423513M 13 mm 1/2-inch Drive 6-Point Deep Socket
Brand: KING TONY
SKU: KT-423513M
Price: 250 TWD
Availability: InStock

The KING TONY 423513M is a 13 mm metric 6-point deep socket with a 1/2-inch square drive. It has a 77 mm overall length and a 24 mm hex opening depth. Check the fastener size and the drive size of your tool before selecting the socket.

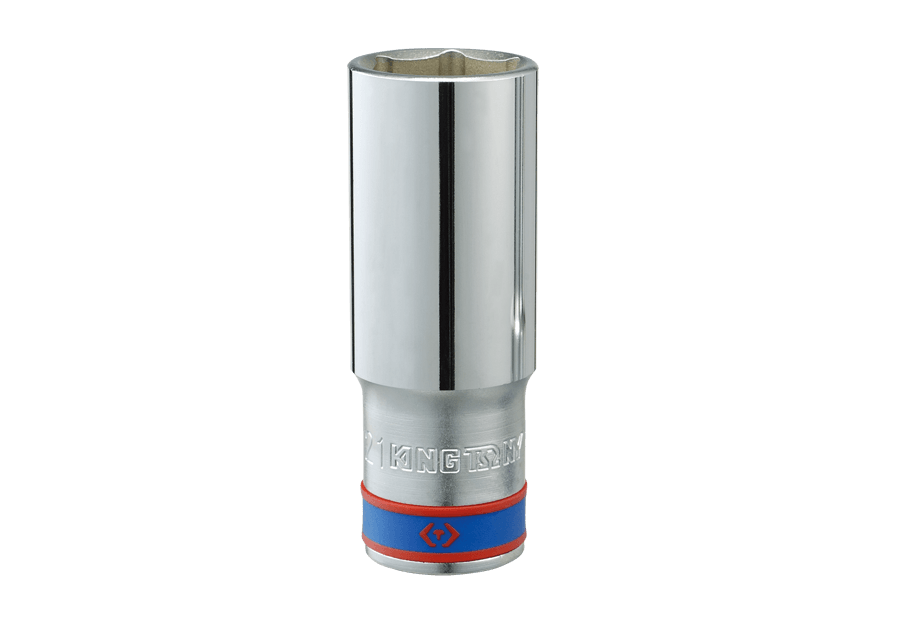

KING TONY 4235M-series deep-socket representative photo marked 21; this 423513M listing is 13 mm with 1/2-inch square drive, sold individually. — Manufacturer-supplied 4235M-series representative photo: the pictured socket is marked 21, not the 13 mm item. This listing is model 423513M, 13 mm, 1/2-inch square drive and 77 mm overall length, sold as one socket.

Features

13 mm metric 6-point working end.
1/2-inch square drive and 77 mm deep body.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four-ball retaining-groove design; manufacturer references DIN 3124 and ISO 2725-1.

KING TONY 4235M-series technical diagram identifying D1, D2, l and L; this 423513M is 13 mm with L=77 mm. — Manufacturer 4235M-series section drawing showing the measurement positions for D1, D2, l and L. This is a technical diagram, not a product photograph; the exact 423513M values are listed below.

Specifications

Brand	KING TONY
Model	423513M
Series	4235M
Socket size	13 mm
Square drive	1/2 inch (12.7 mm)
Configuration	Metric 6-point deep socket
D1 (working-end outside diameter)	18.7 mm
D2 (drive-end outside diameter)	23.7 mm
l (hex opening depth)	24 mm
L (overall length)	77 mm
Weight	119 g
Material	Chrome vanadium alloy steel
Finish	Polished, chrome-plated
Retention design	4-ball retaining grooves
Manufacturer-referenced standards	DIN 3124; ISO 2725-1
Selling unit	One socket (顆)

Package contents

KING TONY 423513M 13 mm 6-point deep socket ×1

This listing is for one socket, not a socket set or an outer carton.

Features

13 mm metric 6-point working end.
1/2-inch square drive and 77 mm deep body.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four-ball retaining-groove design; manufacturer references DIN 3124 and ISO 2725-1.

Specifications

Brand	KING TONY
Model	423513M
Series	4235M
Socket size	13 mm
Square drive	1/2 inch (12.7 mm)
Configuration	Metric 6-point deep socket
D1 (working-end outside diameter)	18.7 mm
D2 (drive-end outside diameter)	23.7 mm
l (hex opening depth)	24 mm
L (overall length)	77 mm
Weight	119 g
Material	Chrome vanadium alloy steel
Finish	Polished, chrome-plated
Retention design	4-ball retaining grooves
Manufacturer-referenced standards	DIN 3124; ISO 2725-1
Selling unit	One socket (顆)

Package contents

KING TONY 423513M 13 mm 6-point deep socket ×1

This listing is for one socket, not a socket set or an outer carton.
