KING TONY 323512S 3/8-inch Drive Six-Point Deep Socket, 3/8 inch
Hand Tools
$160.00/ 顆
$230.00
No downloads available yet
Contact JACO if you need a datasheet, certificate or another technical document.

$270.00/ 顆Was $390.00-31%

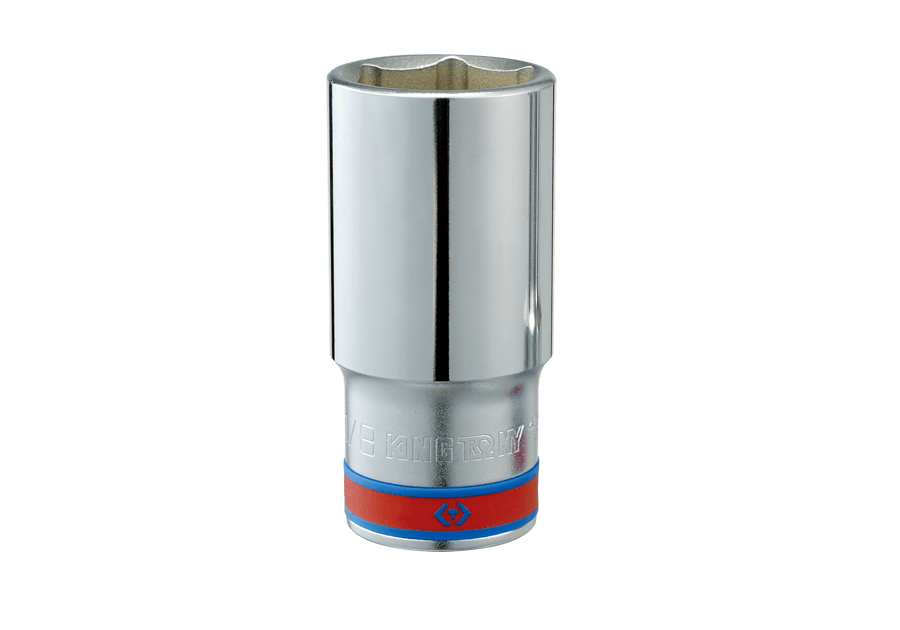

The KING TONY 423512S is a 6-point SAE deep socket with a 1/2-inch square drive and a 3/8-inch socket opening. Its overall length is 77 mm and its working depth is 16 mm. Select the socket opening to match the fastener and the drive size to match the driving tool. This listing is for one socket.


| Brand | KING TONY |
|---|---|
| Manufacturer model | 423512S |
| Square drive | 1/2 inch |
| Socket size | 3/8 inch (SAE) |
| Profile | 6-point deep socket |
| Overall length L | 77 mm |
| Working depth l | 16 mm |
| Socket-end diameter D1 | 14.7 mm |
| Drive-end diameter D2 | 22.0 mm |
| Weight | 84 g |
| Material | Chrome vanadium alloy steel |
| Finish | Polished, chrome-plated |
| Retention design | 4 ball grooves |
| Standard | ANSI/ASME B107.1 |
| Selling unit | One socket; priced individually |
