KING TONY 423512M 1/2-inch Drive 12mm 6-Point Deep Socket

Brand: KING TONY
Manufacturer model number: 423512M
Order code: Y8EJRB2
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$250.00/ 顆~~Was $360.00~~-31%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 423512M is the 12mm metric 6-point deep socket in the 4235M family. It fits 1/2-inch (12.7mm) square-drive tools and has a 77mm overall length for applications requiring a deeper socket body. This listing is for one socket, not a multi-size set.

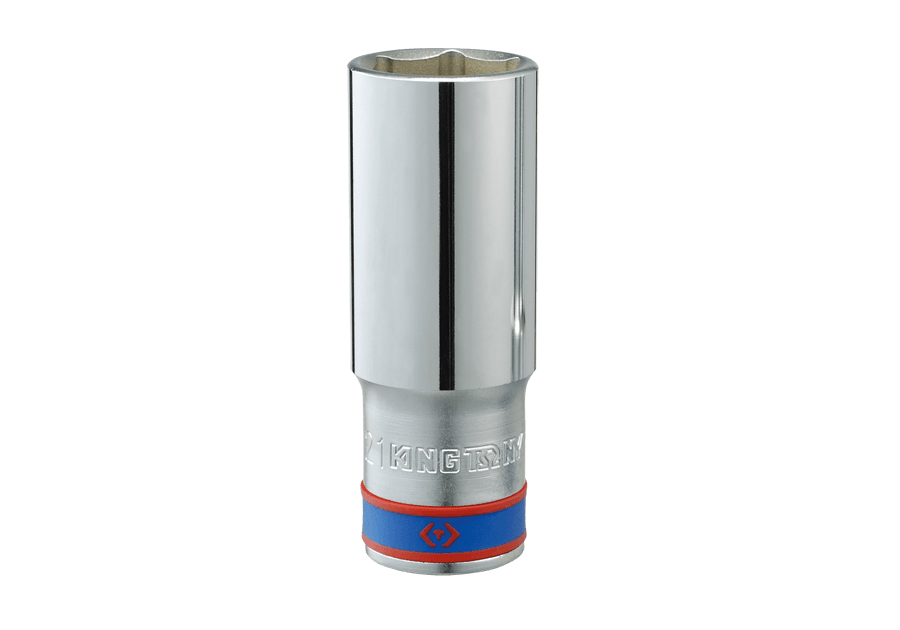

KING TONY 4235M-series deep socket representative photograph marked 21mm; listed 423512M is 12mm with 1/2-inch drive, sold individually — Manufacturer's 4235M-series representative photograph: the pictured tool is marked 21mm, not the listed 12mm model. This listing is the 423512M, 12mm, 1/2-inch drive, 77mm long, sold individually.

Features

12mm metric 6-point working end with a 1/2-inch square drive.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four detent-ball grooves at the square-drive end.
Manufacturer series specifications reference DIN 3124 and ISO 2725-1.

KING TONY 4235M-series socket cross-section showing D1, D2, ell and L; exact 423512M dimensions are in the specification table — Manufacturer's 4235M-series diagram shows where D1, D2, ell and L are measured. Exact values for this 12mm socket are given in the specification table below.

Specifications

Brand	KING TONY
Model	423512M
Series	4235M
Working end	Metric 6-point, 12 mm
Square drive	1/2 inch (12.7 mm)
Overall length L	77 mm
Socket-end diameter D1	17.7 mm
Drive-end diameter D2	23.7 mm
Diagram ell dimension	24 mm
Weight	113 g
Material and finish	Chrome vanadium alloy steel; polished and chrome plated
Referenced standards	DIN 3124; ISO 2725-1
Selling unit	One socket (workbook UOM: 顆)

What's in the Box

423512M 12mm 1/2-inch-drive 6-point deep socket × 1
