KING TONY 423038S 1/2-inch Drive 1-3/16-inch 12-Point Deep Socket
Hand Tools
$490.00/ 顆
$700.00
No downloads available yet
Contact JACO if you need a datasheet, certificate or another technical document.

$450.00/ 顆Was $640.00-30%

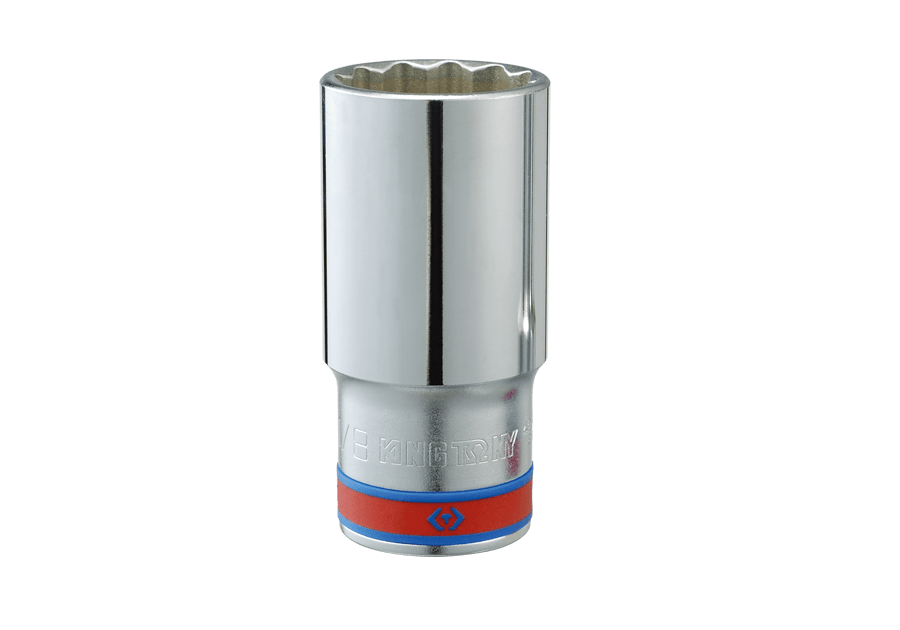

KING TONY 423034S is an imperial 12-point deep socket with a 1/2-inch square drive and a 1-1/16-inch opening. It measures 77 mm overall. Check both the drive and fastener size when selecting a compatible driving tool. The price is for one socket.


| Model | 423034S |
|---|---|
| Square drive | 1/2 inch |
| Imperial opening | 1-1/16 inch |
| Profile | 12-point |
| Configuration | Deep socket |
| Working-end outside diameter D1 | 36.6 mm |
| Drive-end outside diameter D2 | 31.5 mm |
| Internal length l | 28 mm |
| Overall length L | 77 mm |
| Weight | 247 g |
| Material | Chrome vanadium alloy steel |
| Finish | Polished, chrome-plated |
| Retention | Four ball-retention grooves |
| Manufacturer standard reference | ANSI/ASME B107.1 |
| Sales unit | One socket |
