KING TONY 423032S 1/2-inch Drive 1-inch 12-Point Deep Socket

Brand: KING TONY
Manufacturer model number: 423032S
Order code: Y8ESKVF
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$450.00/ 顆~~Was $640.00~~-30%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 423032S is an imperial 1-inch, 12-point deep socket for a 1/2-inch square-drive tool. Its overall length is 77 mm and socket depth is 37 mm. Check the fastener size, square drive and available working space when choosing a socket. This listing is for one socket, not a socket set.

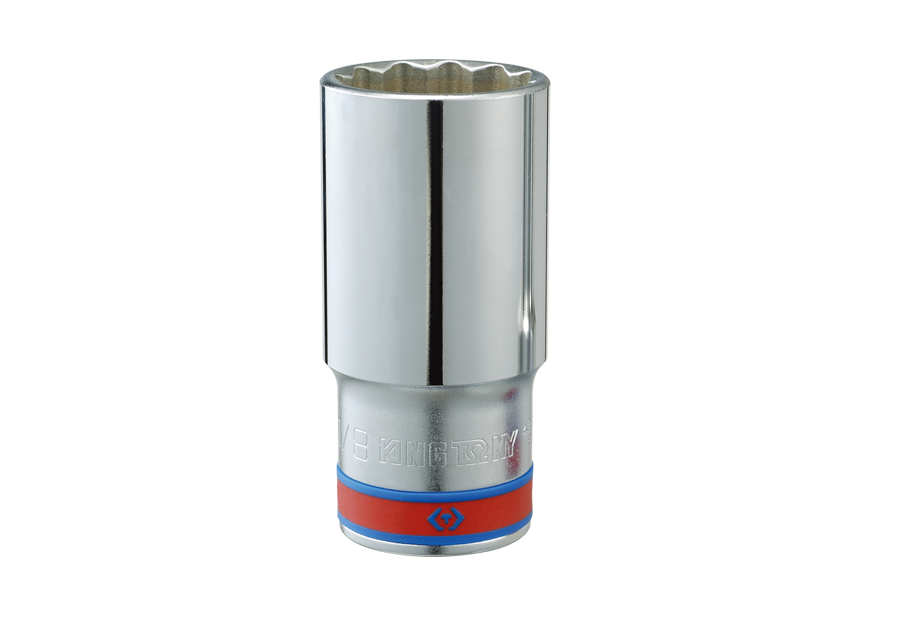

KING TONY 4230S-series deep-socket representative; markings may differ from this 423032S, a 1/2-inch-drive 1-inch 12-point socket, 77 mm long, sold individually — Manufacturer's 4230S-series representative image, not an exact-size photograph of the 423032S. Visible size markings may differ. This listing is the 1/2-inch-drive, 1-inch 12-point deep socket, 77 mm long, sold individually.

Features

Imperial 12-point working end; this model is sized 1 inch.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
4 ball grooves for retention; manufactured to ANSI/ASME B107.1.

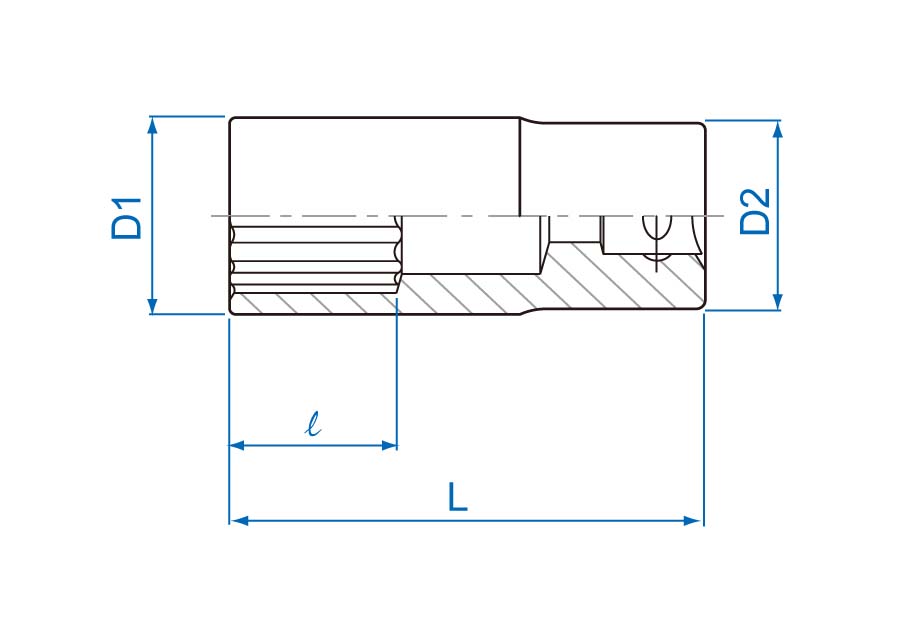

KING TONY 4230S-series socket section diagram identifying D1, D2, socket depth l and overall length L; actual 423032S values are in the specification table — Manufacturer 4230S-series dimensional diagram, not a product photograph or a scale drawing of this size. Refer to the 423032S specification table for the actual D1, D2, l and L values.

Specifications

Brand	KING TONY
Model	423032S
Square drive	1/2 inch
Socket size and profile	1 inch, imperial 12-point
Overall length L	77 mm
Socket depth l	37 mm
Working-end outside diameter D1	33.8 mm
Drive-end outside diameter D2	29.5 mm
Weight	233 g
Material	Chrome vanadium alloy steel
Finish	Polished, chrome plated
Retention design	4 ball grooves
Manufacturing standard	ANSI/ASME B107.1
Selling unit	One socket (顆)

What's in the Box

423032S imperial 1-inch 12-point deep socket × 1
