KING TONY 423032M 1/2-inch Drive 32 mm Metric 12-Point Deep Socket

Brand: KING TONY
Manufacturer model number: 423032M
Order code: Y8EX4EA
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$520.00/ 顆~~Was $740.00~~-30%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

KING TONY 423032M is a 32 mm metric 12-point deep socket with a 1/2-inch square drive. Its 77 mm overall length and 34 mm working-end depth help you select the socket for the fastener position and protruding stud length. This listing is for one individual socket, not a socket set.

Manufacturer 4230M-series 12-point deep socket representative image, not an exact 423032M 32 mm photograph — Manufacturer 4230M-series representative image, not an exact photograph of the 423032M 32 mm socket. Pictured size or markings may differ. This listing is the 1/2-inch-drive, 32 mm 12-point deep socket, 77 mm long, sold individually.

Features

32 mm metric 12-point opening with a 1/2-inch square drive.
Chrome vanadium alloy steel, polished and chrome plated.
4 ball-retaining grooves; made to DIN 3124 and ISO 2725-1 standards.

Specifications

Brand	KING TONY
Model	423032M
Square drive	1/2 inch (12.7 mm)
Metric opening size	32 mm
Profile	12-point
Opening-end outside diameter D1	41.8 mm
Drive-end outside diameter D2	36.0 mm
Working-end depth ℓ	34 mm
Overall length L	77 mm
Weight	309 g
Material and finish	Chrome vanadium alloy steel; polished and chrome plated
Retention	4 ball-retaining grooves
Standards	DIN 3124; ISO 2725-1
Unit of sale	One individual socket

KING TONY 4230M-series deep socket dimension diagram with D1, D2, ℓ and L arrows — Manufacturer 4230M-series dimension diagram showing the D1, D2, ℓ and L measurement positions, not a product photograph. The actual 423032M dimensions are listed in the specification table above.

What's in the Box

KING TONY 423032M 32 mm 12-point deep socket × 1

Reviews & Q&A

No reviews yet. Be the first to review this product.

Recently viewed

Features

32 mm metric 12-point opening with a 1/2-inch square drive.
Chrome vanadium alloy steel, polished and chrome plated.
4 ball-retaining grooves; made to DIN 3124 and ISO 2725-1 standards.

Specifications

Brand	KING TONY
Model	423032M
Square drive	1/2 inch (12.7 mm)
Metric opening size	32 mm
Profile	12-point
Opening-end outside diameter D1	41.8 mm
Drive-end outside diameter D2	36.0 mm
Working-end depth ℓ	34 mm
Overall length L	77 mm
Weight	309 g
Material and finish	Chrome vanadium alloy steel; polished and chrome plated
Retention	4 ball-retaining grooves
Standards	DIN 3124; ISO 2725-1
Unit of sale	One individual socket

What's in the Box

KING TONY 423032M 32 mm 12-point deep socket × 1

JACO自營旗艦店

KING TONY 423032M 1/2-inch Drive 32 mm Metric 12-Point Deep Socket

JACO自營旗艦店

Reviews & Q&A

Similar products

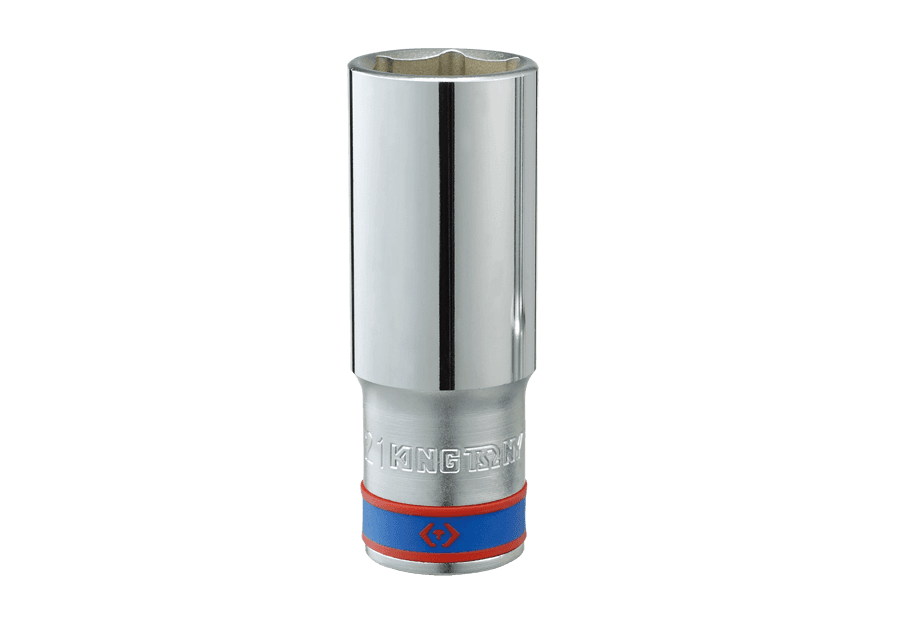

KING TONY 423532M 1/2-inch Drive 32mm 6-Point Deep Socket
