KING TONY 423028M 1/2-inch Drive 28mm 12-Point Deep Socket

Brand: KING TONY
Manufacturer model number: 423028M
Order code: Y8E5XS0
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$470.00/ 顆~~Was $670.00~~-30%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 423028M is a 28 mm metric 12-point deep socket for compatible 1/2-inch square-drive hand tools. Its 77 mm overall length and 34 mm opening depth provide model-specific dimensions to check against the fastener and working space. This listing is for one 28 mm socket, not a multi-size set.

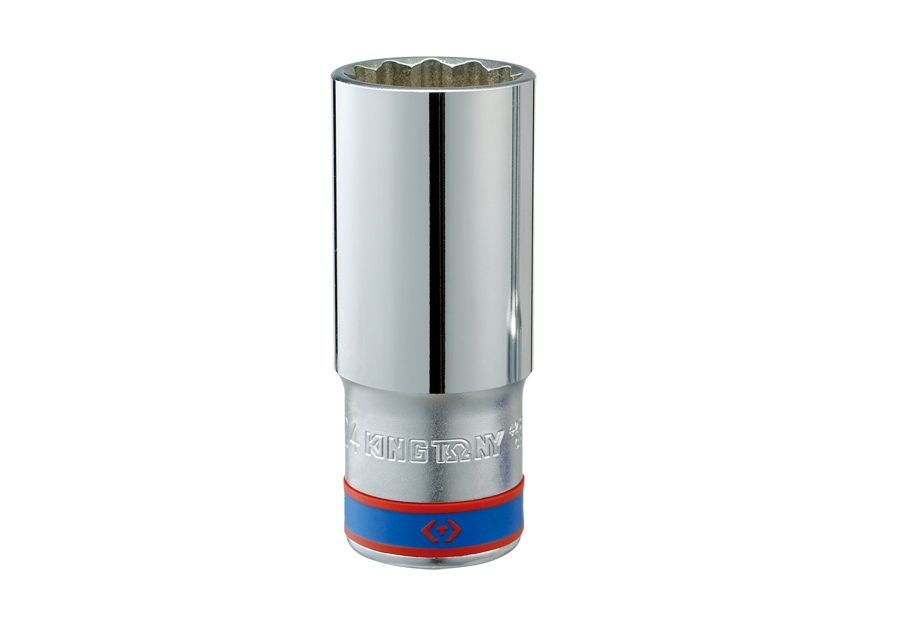

Manufacturer 4230M-series 12-point deep socket representative photo; this listing is the 423028M 28mm socket, not a confirmed exact-size photograph — Manufacturer-supplied 4230M-series representative photograph, not a confirmed exact-size photograph of 423028M. Size or model engraving is not legible in this image; proportions may vary by size. The actual item listed is a 1/2-inch-drive 28 mm 12-point deep socket, 77 mm long, sold individually.

Features

28 mm metric 12-point opening and 1/2-inch square drive.
Chrome-vanadium alloy steel with a polished, chrome-plated finish.
Four ball-retaining grooves for drive-tool engagement.
Manufacturer references DIN 3124 and ISO 2725-1.

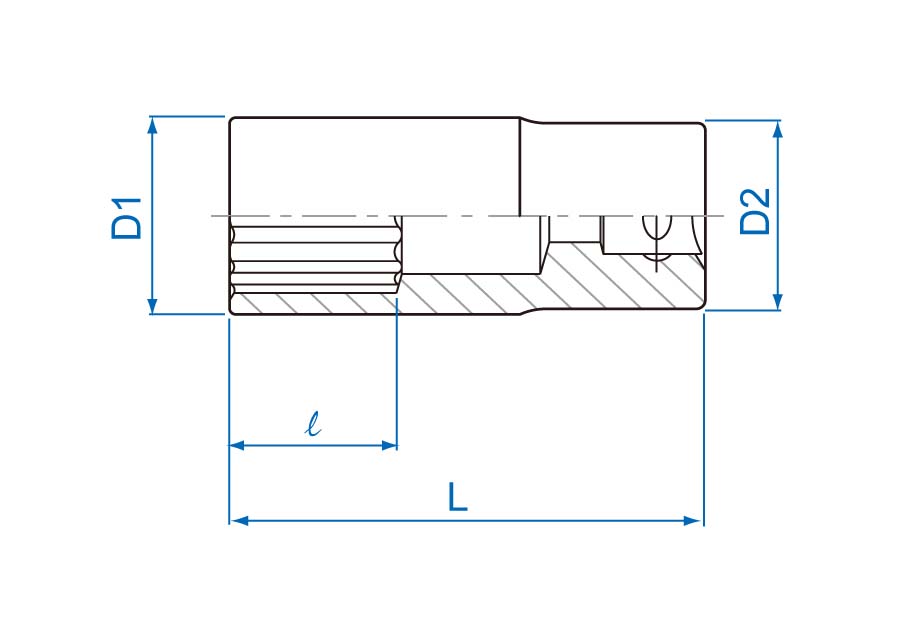

Manufacturer 4230M-series sectional socket dimension diagram labelled D1, D2, l and L; not a physical product photo — Manufacturer 4230M-series sectional dimension diagram: D1 is the opening-end outside diameter, D2 the drive-end outside diameter, l the opening depth and L the overall length. This is a series diagram; see the table for 423028M values.

Specifications

Brand	KING TONY
Manufacturer model	423028M
Square drive	1/2 inch
Opening profile	Metric 12-point
Nominal size	28 mm
Opening-end outside diameter D1	37.8 mm
Drive-end outside diameter D2	32.5 mm
Opening depth l	34 mm
Overall length L	77 mm
Weight	308 g
Material and finish	Chrome-vanadium alloy steel; polished and chrome-plated
Standards	DIN 3124, ISO 2725-1
Priced unit	One socket (顆)

What's in the Box

423028M 28 mm 12-point deep socket ×1

Reviews & Q&A

No reviews yet. Be the first to review this product.

Recently viewed

Features

28 mm metric 12-point opening and 1/2-inch square drive.
Chrome-vanadium alloy steel with a polished, chrome-plated finish.
Four ball-retaining grooves for drive-tool engagement.
Manufacturer references DIN 3124 and ISO 2725-1.

Specifications

Brand	KING TONY
Manufacturer model	423028M
Square drive	1/2 inch
Opening profile	Metric 12-point
Nominal size	28 mm
Opening-end outside diameter D1	37.8 mm
Drive-end outside diameter D2	32.5 mm
Opening depth l	34 mm
Overall length L	77 mm
Weight	308 g
Material and finish	Chrome-vanadium alloy steel; polished and chrome-plated
Standards	DIN 3124, ISO 2725-1
Priced unit	One socket (顆)

What's in the Box

423028M 28 mm 12-point deep socket ×1

JACO自營旗艦店

KING TONY 423028M 1/2-inch Drive 28mm 12-Point Deep Socket

JACO自營旗艦店

Reviews & Q&A

Similar products

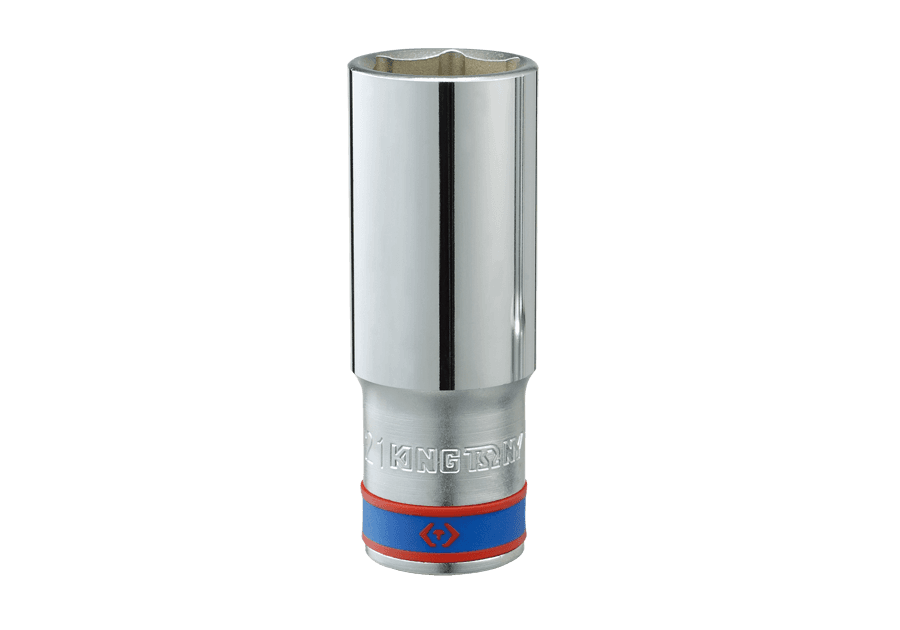

KING TONY 423528M 28 mm 1/2-inch Drive 6-Point Deep Socket
