Name: KING TONY 423021M 21mm 12-Point Deep Socket, 1/2-Inch Drive
Brand: KING TONY
SKU: KT-423021M
Price: 320 TWD
Availability: InStock

KING TONY 423021M is a 21 mm metric 12-point deep socket with a 1/2-inch square drive. Its overall length is 77 mm and the socket recess length is 35 mm. Use it with a matching-drive hand ratchet or adaptor for correctly sized nuts and bolts.

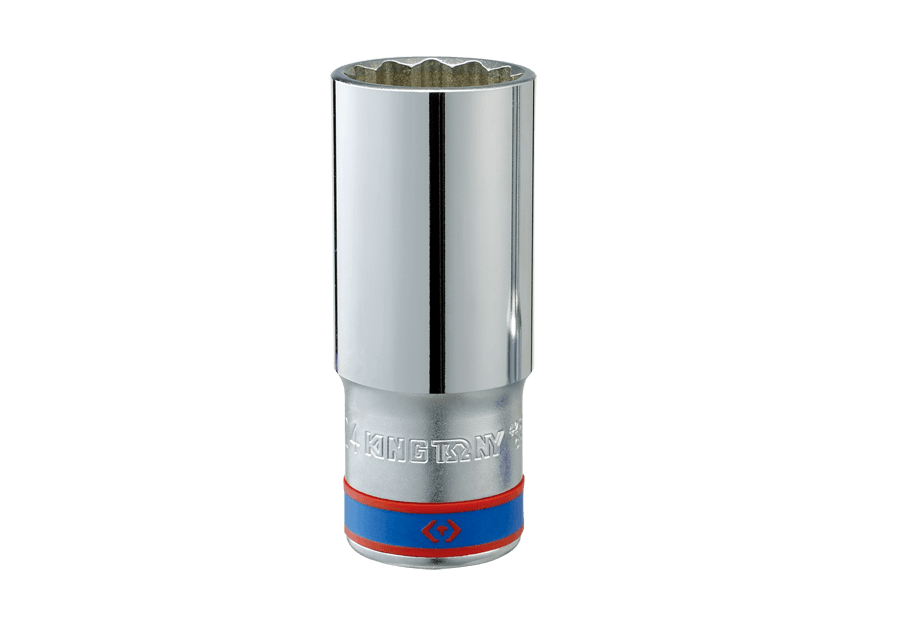

KING TONY 4230M-series representative twelve-point deep socket photograph; this listing is 423021M, 21 mm, 1/2-inch drive; size markings are unreadable and this is not an exact 21 mm photograph — Manufacturer's 4230M-series representative photograph. The size and model engraving cannot be read and the pictured size may differ; this is not an exact 21 mm product photograph. This listing is 423021M, a 21 mm, 1/2-inch-drive, 12-point deep socket, sold individually.

Features

21 mm metric 12-point profile with a 1/2-inch square drive.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four ball-retention grooves for compatible square-drive tools.
The manufacturer specifies DIN 3124 and ISO 2725-1.

KING TONY 4230M-series deep socket sectional dimension diagram showing D1, D2, l and L; exact 423021M values are listed in the specification table — Manufacturer's 4230M-series sectional diagram, not a product photograph. D1 and D2 denote the working-end and drive-end outside diameters; l denotes socket recess length and L overall length. Exact 423021M dimensions are given below.

Specifications

Brand	KING TONY
Model	423021M
Square drive	1/2 inch
Metric size	21 mm
Profile	12-point
Socket type	Deep
Working-end outside diameter D1	27.7 mm
Drive-end outside diameter D2	25.0 mm
Socket recess length l	35 mm
Overall length L	77 mm
Weight	148 g
Material	Chrome vanadium alloy steel
Finish	Polished and chrome plated
Retention design	4 ball-retention grooves
Standards	DIN 3124; ISO 2725-1
Priced unit	One socket (顆)

What is included

One 423021M 21 mm 12-point deep socket.

The price is for one socket, not a socket set. Ratchet handles and socket rails are not included.

Features

21 mm metric 12-point profile with a 1/2-inch square drive.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Four ball-retention grooves for compatible square-drive tools.
The manufacturer specifies DIN 3124 and ISO 2725-1.

Specifications

Brand	KING TONY
Model	423021M
Square drive	1/2 inch
Metric size	21 mm
Profile	12-point
Socket type	Deep
Working-end outside diameter D1	27.7 mm
Drive-end outside diameter D2	25.0 mm
Socket recess length l	35 mm
Overall length L	77 mm
Weight	148 g
Material	Chrome vanadium alloy steel
Finish	Polished and chrome plated
Retention design	4 ball-retention grooves
Standards	DIN 3124; ISO 2725-1
Priced unit	One socket (顆)

What is included

One 423021M 21 mm 12-point deep socket.

The price is for one socket, not a socket set. Ratchet handles and socket rails are not included.
