Name: KING TONY 423020S 1/2-inch Drive 5/8-inch 12-point Deep Socket
Brand: KING TONY
SKU: KT-423020S
Price: 280 TWD
Availability: InStock

KING TONY 423020S is a 5/8-inch 12-point deep socket for a 1/2-inch square drive. Its 77 mm body provides a deep-socket configuration for compatible imperial fasteners.

Features

Chrome vanadium alloy steel with a polished, chrome-plated finish.
12-point imperial opening with four ball-retention grooves at the drive connection.
Manufacturer specifies ANSI/ASME B107.1. Select by both socket size and square-drive size.

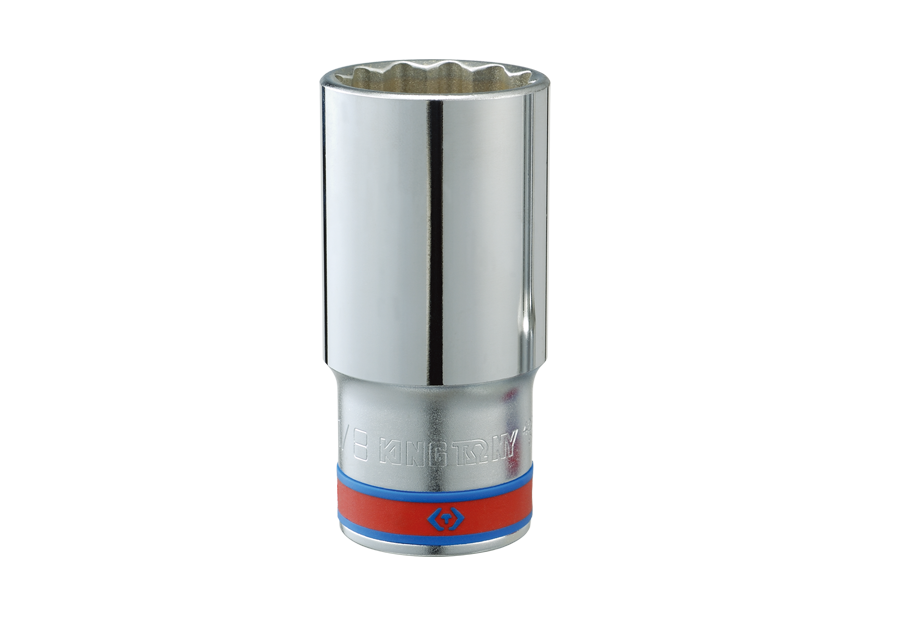

Manufacturer 4230S-series deep socket image, not an exact 423020S photo; this item is 1/2-inch drive, 5/8-inch, 77 mm long, sold individually — Manufacturer-supplied 4230S-series representative image, not an exact 423020S photograph. The pictured size markings may differ. This listing is the 1/2-inch-drive, 5/8-inch 12-point deep socket, 77 mm long, sold individually.

Specifications

Brand	KING TONY
Model	423020S
Square drive	1/2 inch (12.7 mm)
Socket size	5/8 inch
Profile	12-point
Type	Deep socket
Overall length L	77 mm
Socket-end diameter D1	22.6 mm
Drive-end diameter D2	23.7 mm
Opening depth l	17 mm
Weight	129 g
Material	Chrome vanadium alloy steel
Finish	Polished, chrome plated
Retention	Four ball-retention grooves
Standard	ANSI/ASME B107.1
Selling unit	One socket

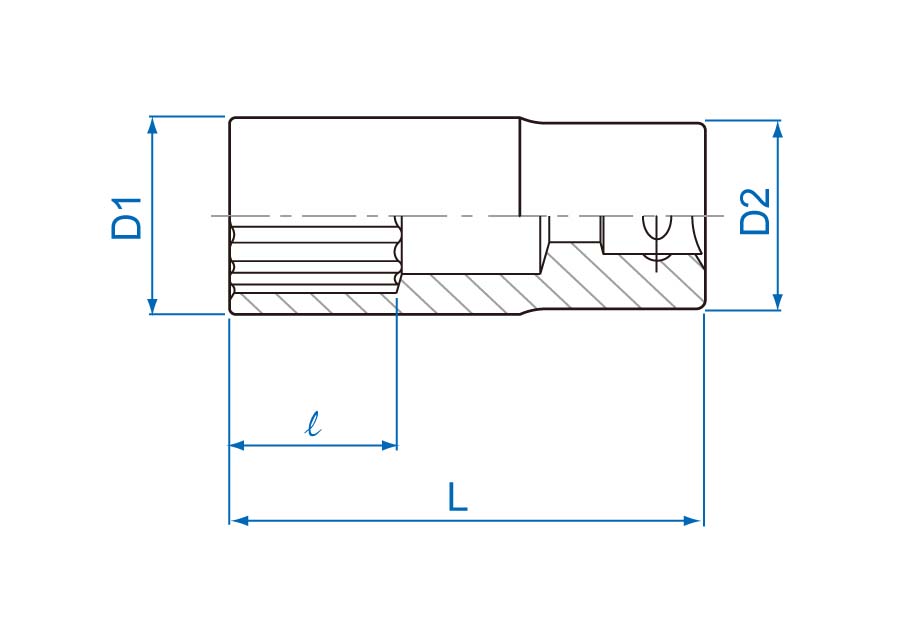

KING TONY 4230S-series sectional dimension drawing with D1, D2, l and L labels; not a product photograph — The manufacturer drawing identifies the dimension symbols; it is not to scale. For 423020S: D1 22.6 mm, D2 23.7 mm, opening depth l 17 mm, overall length L 77 mm.

What's in the Box

KING TONY 423020S, 1/2-inch-drive 5/8-inch 12-point deep socket × 1

KING TONY 423020S is a 5/8-inch 12-point deep socket for a 1/2-inch square drive. Its 77 mm body provides a deep-socket configuration for compatible imperial fasteners.

Features

Chrome vanadium alloy steel with a polished, chrome-plated finish.
12-point imperial opening with four ball-retention grooves at the drive connection.
Manufacturer specifies ANSI/ASME B107.1. Select by both socket size and square-drive size.

Specifications

Brand	KING TONY
Model	423020S
Square drive	1/2 inch (12.7 mm)
Socket size	5/8 inch
Profile	12-point
Type	Deep socket
Overall length L	77 mm
Socket-end diameter D1	22.6 mm
Drive-end diameter D2	23.7 mm
Opening depth l	17 mm
Weight	129 g
Material	Chrome vanadium alloy steel
Finish	Polished, chrome plated
Retention	Four ball-retention grooves
Standard	ANSI/ASME B107.1
Selling unit	One socket

What's in the Box

KING TONY 423020S, 1/2-inch-drive 5/8-inch 12-point deep socket × 1
