KING TONY 423028S 1/2-inch Drive 7/8-inch SAE 12-Point Deep Socket
Hand Tools
$340.00/ 顆
No downloads available yet
Contact JACO if you need a datasheet, certificate or another technical document.



$270.00/ 顆

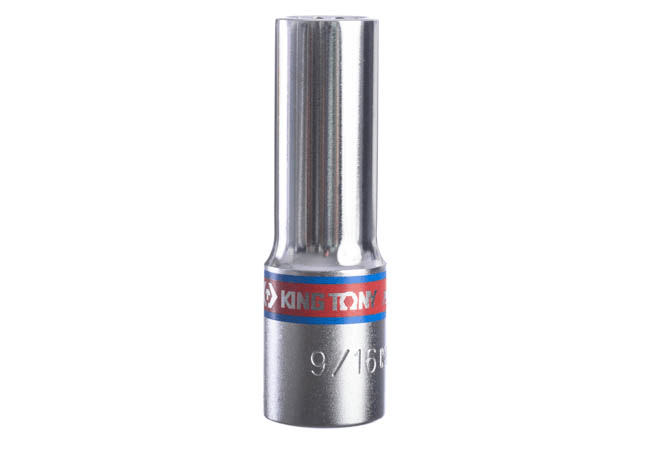

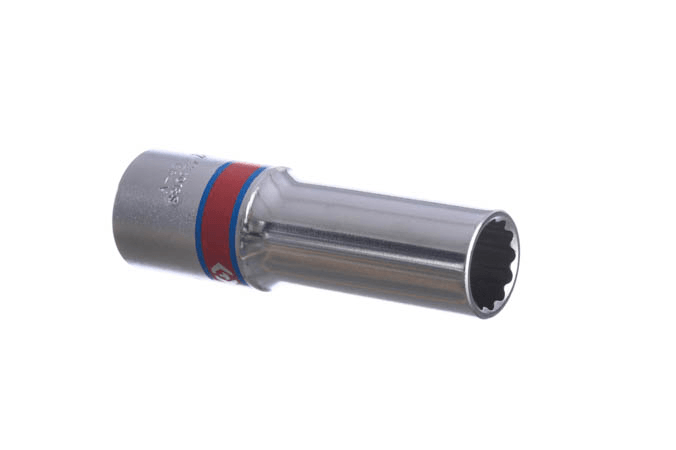

The KING TONY 423018S is a 9/16-inch SAE 12-point deep socket with a 1/2-inch square drive. Its overall length is 77 mm. Match the socket opening to the fastener size and the square drive to your hand tool.

| Brand | KING TONY |
|---|---|
| Model | 423018S |
| Square drive | 1/2 inch |
| Socket size | 9/16 inch (SAE) |
| Socket profile | 12-point |
| Opening-end outside diameter D1 | 20.2 mm |
| Drive-end outside diameter D2 | 23.7 mm |
| Opening depth l | 15 mm |
| Overall length L | 77 mm |
| Weight | 119 g |

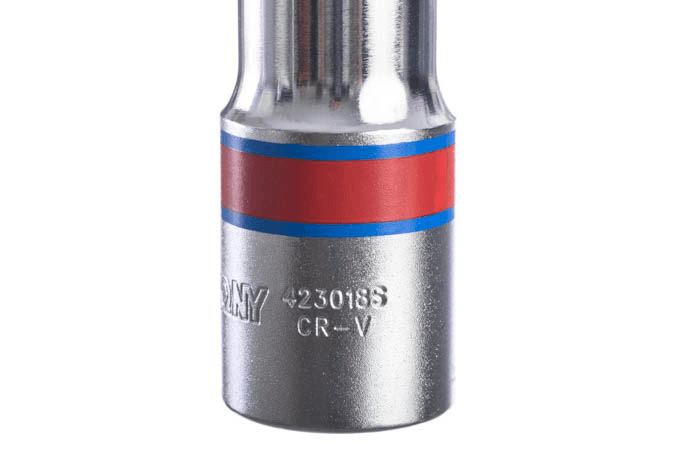

| Material | Chrome vanadium alloy steel |
| Finish | Polished and chrome-plated |
| Manufacturer-specified standard | ANSI/ASME B107.1 |
