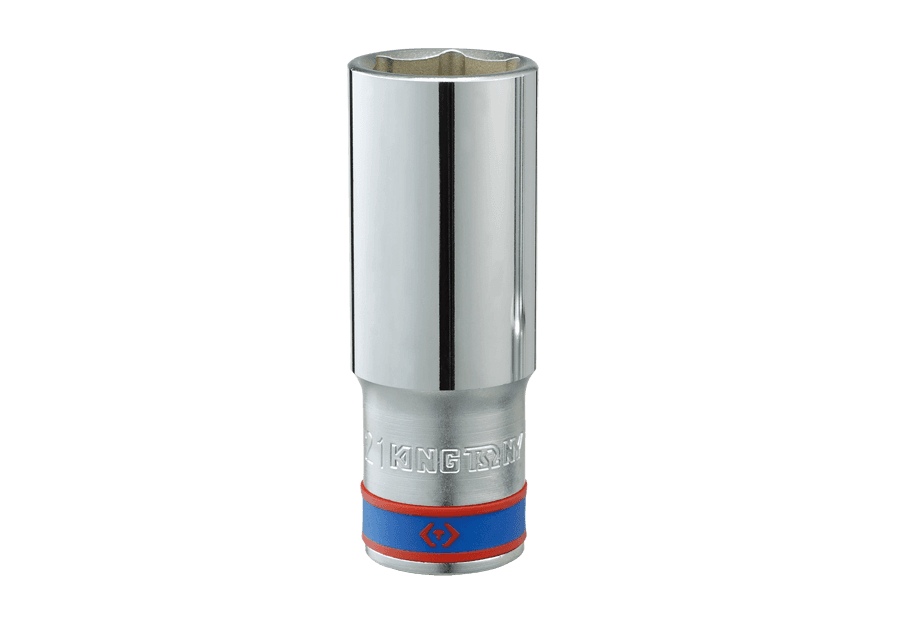

KING TONY 423517M 1/2-inch Drive 17 mm 6-Point Deep Socket
Hand Tools
$280.00/ 顆
$400.00
No downloads available yet
Contact JACO if you need a datasheet, certificate or another technical document.

$280.00/ 顆Was $400.00-30%

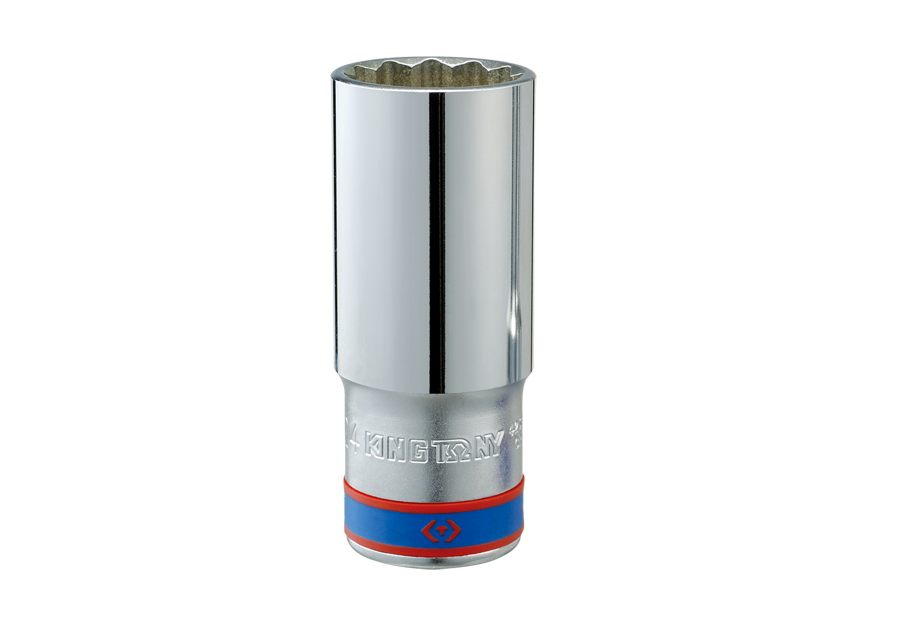

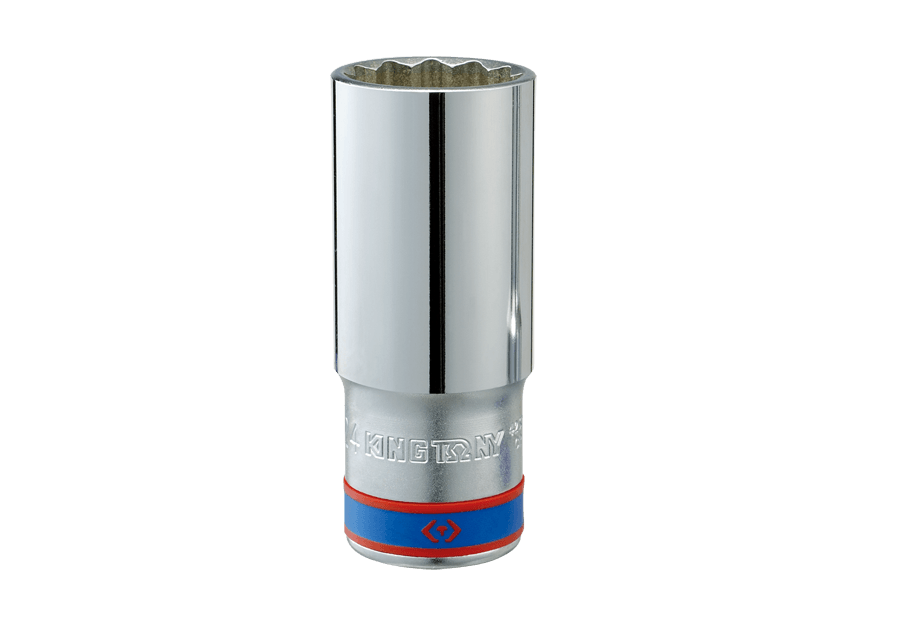

The KING TONY 423017M is a metric 17 mm, 12-point deep socket for matching 1/2-inch square-drive hand tools. Its 77 mm overall length provides a deep-socket configuration for nut removal and installation. Check the fastener size and drive size before choosing a socket.


| Model | 423017M |
|---|---|
| Square drive | 1/2 inch (12.7 mm) |
| Socket size | 17 mm (metric) |
| Profile | 12-point |

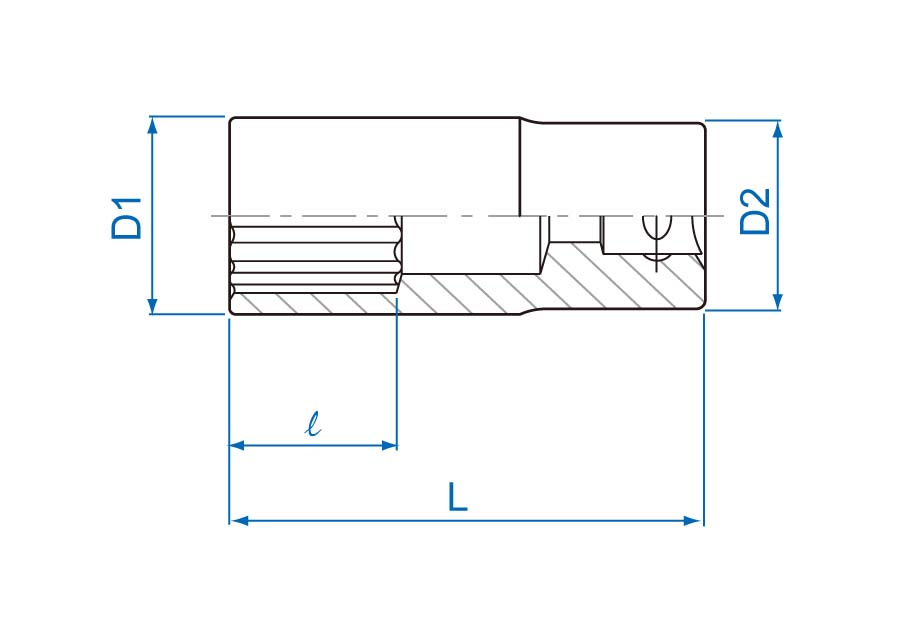

| Socket-end outer diameter D1 | 23.7 mm |
| Drive-end outer diameter D2 | 23.2 mm |
| Internal length shown as ℓ | 35 mm |
| Overall length L | 77 mm |
| Weight | 122 g |
| Material | Chrome vanadium alloy steel |
| Finish | Polished, chrome-plated |
| Manufacturer specification references | DIN 3124; ISO 2725-1 |
| Selling unit | One socket (workbook unit: 顆) |
