KING TONY 423514M 14 mm 1/2-inch Drive 6-Point Deep Socket
Hand Tools
$250.00/ 顆
$360.00
No downloads available yet
Contact JACO if you need a datasheet, certificate or another technical document.

$250.00/ 顆Was $360.00-31%

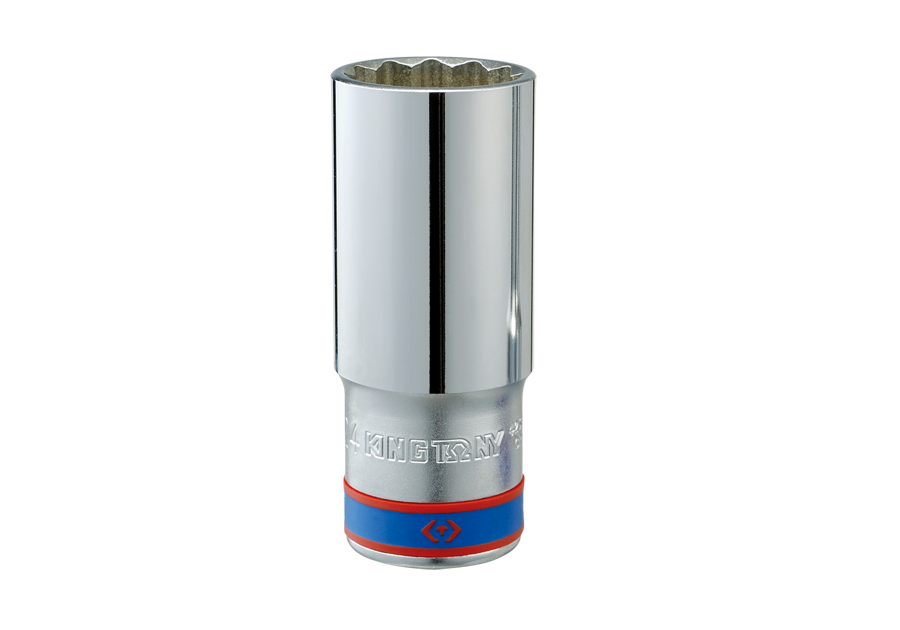

The KING TONY 423014M is a 14 mm metric twelve-point deep socket with a 1/2-inch square drive for matching hand-operated socket tools. Its 77 mm overall length provides a deep-body configuration for recessed nut work. This listing is for one socket, not a socket set.


| Model | 423014M |
|---|---|
| Socket size | 14 mm |
| Drive | 1/2-inch square drive |
| Opening profile | 12-point |

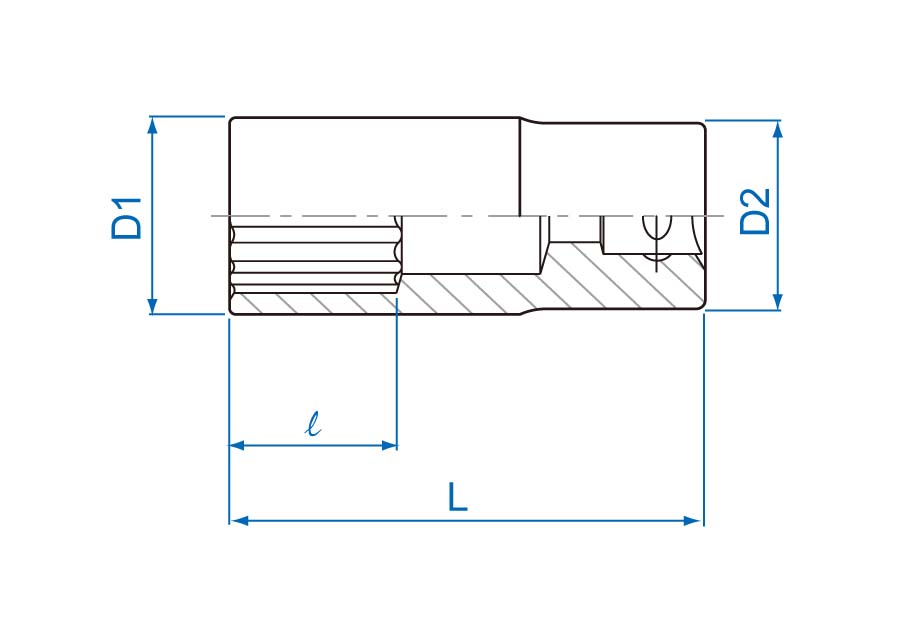

| Socket-end outside diameter D1 | 20.2 mm |
| Drive-end outside diameter D2 | 23.7 mm |
| Broaching depth l | 35 mm |
| Overall length L | 77 mm |
| Manufacturer stated weight | 121 g |
| Material | Chrome vanadium alloy steel |
| Finish | Polished, chrome plated |
| Retention design | Four ball grooves |
| Referenced standards | DIN 3124; ISO 2725-1 |
| Sales unit | One socket |
