KING TONY 423009M 1/2-inch Drive 9 mm 12-Point Deep Socket

Brand: KING TONY
Manufacturer model number: 423009M
Order code: Y8E7WCC
MOQ: 1 顆
Supply status: In Stock
Selected configuration: Standard item

$250.00/ 顆~~Was $360.00~~-31%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

The KING TONY 423009M is a 9 mm metric, 12-point deep socket with a 1/2-inch square drive and a 77 mm overall length. Match the socket opening to the fastener and the square drive to your hand tool. This listing is for one socket, not a multi-size set.

KING TONY 4230M-series representative 12-point deep socket image, not an exact photograph of the 9 mm 423009M — Manufacturer-supplied 4230M-series representative image, not an exact-size photograph of 423009M; pictured size markings may differ. This listing is the 9 mm, 1/2-inch drive, 77 mm deep socket, sold individually.

Features

9 mm metric 12-point opening and 1/2-inch square drive.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Manufacturer-specified four-ball retaining grooves.
Specified to DIN 3124 and ISO 2725-1.

KING TONY 4230M-series socket dimension diagram identifying D1, D2, l and L; actual values are listed for the 9 mm 423009M — 4230M-series cross-section dimension diagram, not a physical photograph or a scale drawing of the 9 mm socket. See the 423009M specification table below for the actual D1, D2, l and L values.

Specifications

Brand	KING TONY
Manufacturer model	423009M
Metric opening	9 mm
Square drive	1/2 inch (12.7 mm)
Profile	12-point
Socket type	Deep
Working-end outside diameter D1	14.0 mm
Drive-end outside diameter D2	22.0 mm
Working-end depth l	16 mm
Overall length L	77 mm
Weight	79 g
Material	Chrome vanadium alloy steel
Finish	Polished, chrome-plated
Standards	DIN 3124, ISO 2725-1
Sale unit	One socket (顆)

What's in the Box

423009M 9 mm metric 12-point deep socket ×1

A single socket, not a multi-size 4230M-series set.

Reviews & Q&A

No reviews yet. Be the first to review this product.

Recently viewed

Features

9 mm metric 12-point opening and 1/2-inch square drive.
Chrome vanadium alloy steel with a polished, chrome-plated finish.
Manufacturer-specified four-ball retaining grooves.
Specified to DIN 3124 and ISO 2725-1.

Specifications

Brand	KING TONY
Manufacturer model	423009M
Metric opening	9 mm
Square drive	1/2 inch (12.7 mm)
Profile	12-point
Socket type	Deep
Working-end outside diameter D1	14.0 mm
Drive-end outside diameter D2	22.0 mm
Working-end depth l	16 mm
Overall length L	77 mm
Weight	79 g
Material	Chrome vanadium alloy steel
Finish	Polished, chrome-plated
Standards	DIN 3124, ISO 2725-1
Sale unit	One socket (顆)

What's in the Box

423009M 9 mm metric 12-point deep socket ×1

A single socket, not a multi-size 4230M-series set.

JACO自營旗艦店

KING TONY 423009M 1/2-inch Drive 9 mm 12-Point Deep Socket

JACO自營旗艦店

Reviews & Q&A

Similar products

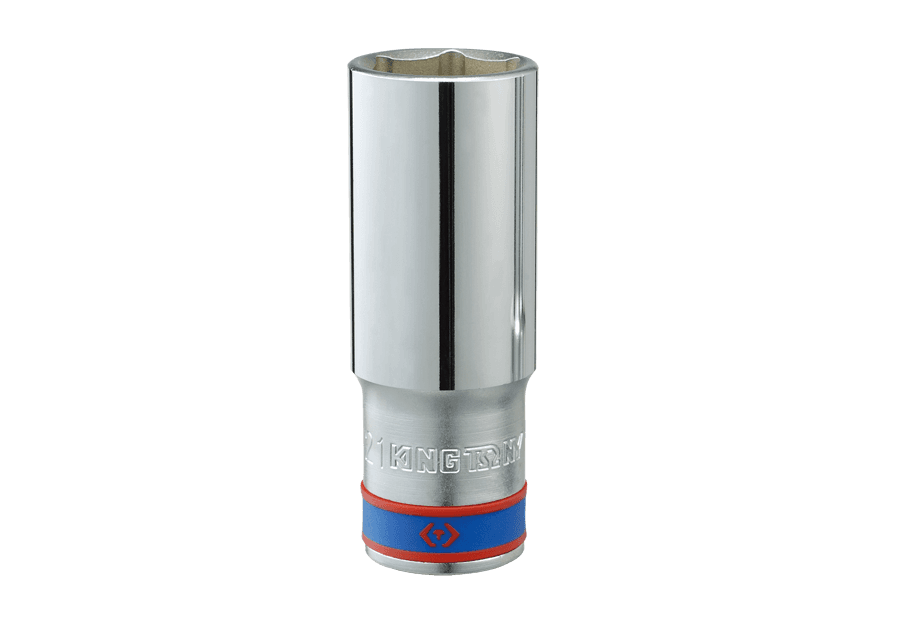

KING TONY 423509M 1/2-inch Drive 9 mm 6-Point Deep Socket
