KING TONY 401411M 1/2-inch Drive Square Oil-Plug Socket, RB10.5 mm
Hand Tools
$170.00/ 顆
No downloads available yet
Contact JACO if you need a datasheet, certificate or another technical document.

$180.00/ 顆
The KING TONY 401413M oil plug socket has a 1/2 in square drive and a 12.7 mm (1/2 in) male-square working end for matching square-recess oil plugs. It measures 35 mm in overall length and is made from chrome vanadium alloy steel with a polished, chrome-plated finish.

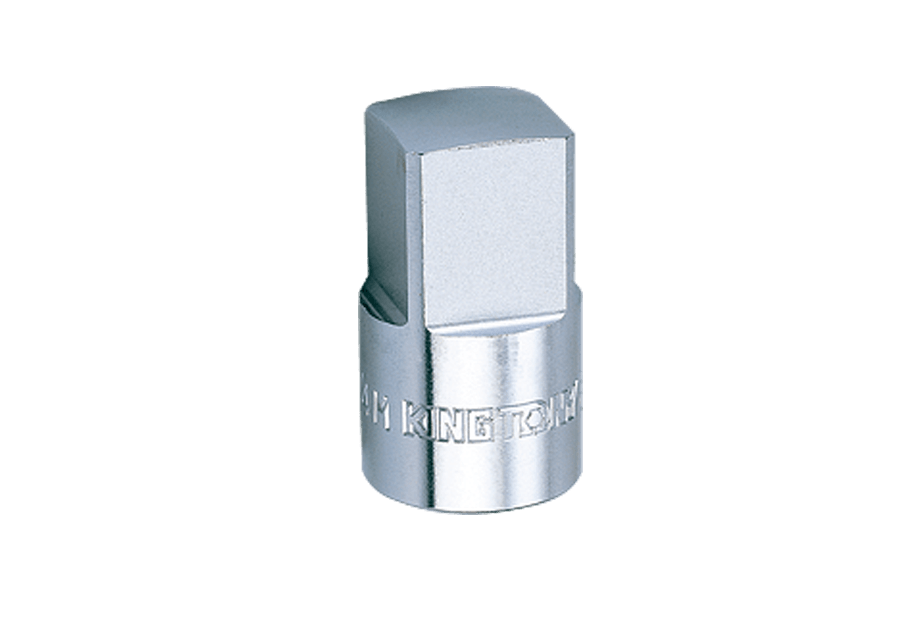

Representative 4014M family image; the specifications below apply to model 401413M.
| Model | 401413M |
|---|---|
| Square drive | 1/2 in (12.7 mm) |
| Square working end | RB12.7 (1/2 in) |
| Outside diameter D | 23.5 mm |
| Working-end length l | 13.5 mm |
| Overall length L | 35 mm |
| Weight | 64 g |
| Material | Chrome vanadium alloy steel |
| Finish | Polished and chrome plated |
| Manufacturer-specified standard | DIN 3120 |
