KING TONY 401414M 1/2 in Drive Square Drain Plug Socket, 13.5 mm
Hand Tools
$220.00/ 顆
No downloads available yet
Contact JACO if you need a datasheet, certificate or another technical document.

$180.00/ 顆
The KING TONY 401412M drain plug socket has a 1/2-inch square drive and an RB12.0, 12 mm square working end for matching drain plugs. The 12 mm working size is distinct from the 1/2-inch (12.7 mm) drive connection.

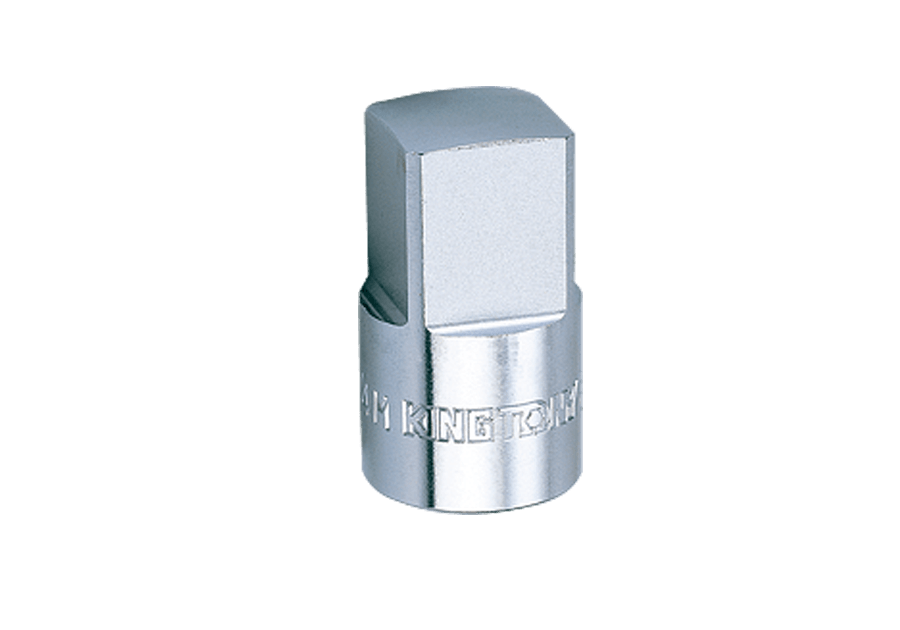

Manufacturer 4014M family image; this item is model 401412M with a 12 mm working end.
| Model | 401412M |
|---|---|
| Square drive size | 1/2 inch (12.7 mm) |
| Square working size | RB12.0 (12 mm) |
| Socket diameter D | 23.5 mm |
| Working-end length ℓ | 13.5 mm |
| Overall length L | 35 mm |
| Weight | 62 g |
| Material | Chrome vanadium alloy steel |
| Finish | Polished and chrome-plated |
| Manufacturer-listed standard | DIN 3120 |
