KING TONY 401414M 1/2 in Drive Square Drain Plug Socket, 13.5 mm
Hand Tools
$220.00/ 顆
No downloads available yet
Contact JACO if you need a datasheet, certificate or another technical document.

$170.00/ 顆
The KING TONY 401409M is a square drain plug socket with a 1/2-inch square drive and an RB9.5 working end (9.5 mm; marked as 3/8 inch in the manufacturer table). Check the drain plug recess size separately from the drive size of your hand tool.

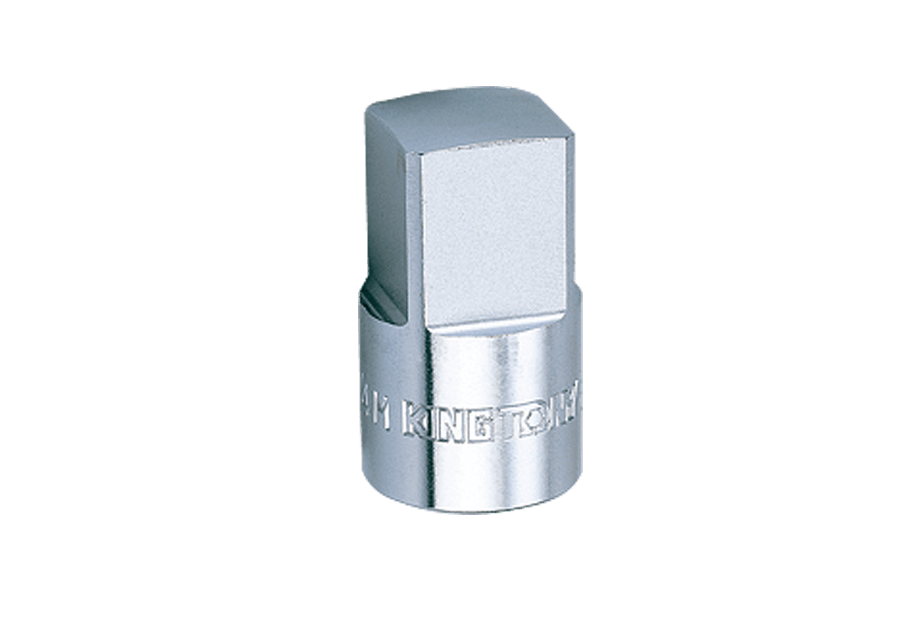

The image is the official 4014M series representative packshot. This listing is for model 401409M with a 9.5 mm working end.
| Model | 401409M |
|---|---|
| Square drive | 1/2 inch |
| Square working end | RB9.5 / 9.5 mm (manufacturer also lists 3/8 inch) |
| Body diameter D | 23.5 mm |
| Working-end length ℓ | 13.5 mm |
| Overall length L | 35 mm |
| Weight | 58 g |
| Material and finish | Chrome vanadium alloy steel; polished and chrome plated |
| Manufacturer specification reference | DIN 3120 |
