KING TONY 39123012M 3/8-inch Adjustable Tap Socket, 4–9 mm
Hand Tools
$1,300.00/ 個
No downloads available yet
Contact JACO if you need a datasheet, certificate or another technical document.

$1,300.00/ 個

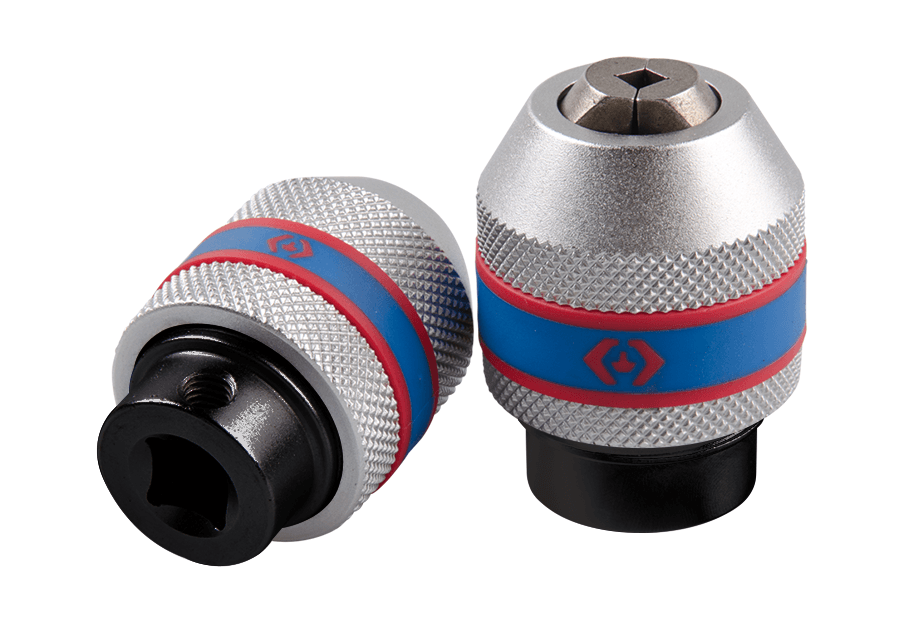

The KING TONY 39123010M adjustable tap socket connects to a 3/8-inch square-drive tool and grips a tap with an adjustable chuck. Its square-shank clamping dimension S is 2.0–6.0 mm; the manufacturer's reference tap range for this exact model is M1–M10.

| Brand | KING TONY |
|---|---|
| Model | 39123010M |
| Square drive | 3/8 inch |
| Square-shank clamping dimension S (min–max) | 2.0–6.0 mm |
| Reference tap range | M1–M10 |
| Front diameter D1 | 23.0 mm |
| Maximum outside diameter D2 | 34.5 mm |
| Overall length L | 53.0 mm |
| Weight | 221 g |
| Sale unit | One item (個) |
