Name: KING TONY 373122M 22 mm Combination Speed Wrench
Brand: KING TONY
SKU: KT-373122M
Price: 1600 TWD
Availability: InStock

The KING TONY 373122M is a 22 mm metric, non-reversible combination speed wrench with an open end and a ratcheting ring end for manual work on matching nuts and bolts. Its 72-tooth ratchet operates with a 5° movement angle. The wrench is made from chrome-vanadium alloy steel with a chrome-plated finish. This listing is for one wrench, not a multi-size set.

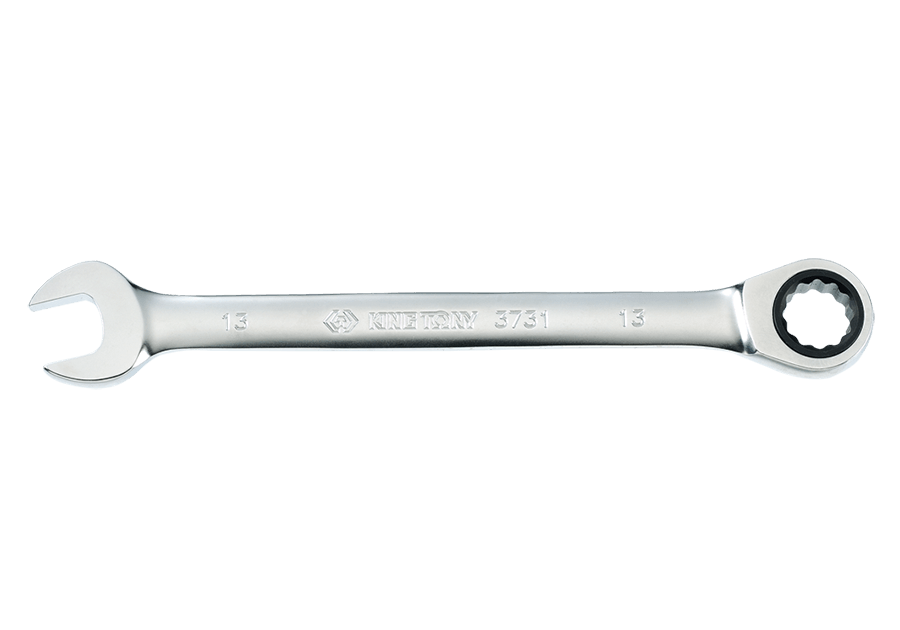

KING TONY 3731-series representative photo marked 13 mm; this 373122M listing is the 22 mm non-reversible speed wrench, sold individually — Manufacturer's KING TONY 3731-series representative image: the physical wrench pictured is marked 13 mm, not the 22 mm size sold here. This 373122M listing is the 22 mm non-reversible combination speed wrench, sold individually.

Features

22 mm metric combination design with an open end and a ratcheting ring end.
Non-reversible 72-tooth ratchet with a 5° movement angle.
Chrome-vanadium alloy steel with a chrome-plated finish.
373122M measures 287.8 mm overall and weighs 315 g.

KING TONY 3731-series dimension-position diagram for D1, D2, H1, H2 and L; actual 373122M dimensions are listed in the specification table — This manufacturer 3731-series diagram identifies the D1, D2, H1, H2 and L measurement positions. It is not a to-scale photograph of the 22 mm wrench; actual 373122M dimensions are provided in the table below.

Specifications

Model	373122M
Size	22 mm
Ratchet direction	Non-reversible
Ratchet teeth	72
Minimum movement angle	5°
Material	Chrome-vanadium alloy steel
Finish	Chrome-plated
Open-end dimension D1	45.8 mm
Ratchet-ring dimension D2	40.1 mm
Open-end thickness H1	9.0 mm
Ratchet-ring thickness H2	13.0 mm
Overall length L	287.8 mm
Weight	315 g
Sales unit	One wrench

What's in the Box

373122M 22 mm non-reversible combination speed wrench ×1

Features

22 mm metric combination design with an open end and a ratcheting ring end.
Non-reversible 72-tooth ratchet with a 5° movement angle.
Chrome-vanadium alloy steel with a chrome-plated finish.
373122M measures 287.8 mm overall and weighs 315 g.

Specifications

Model	373122M
Size	22 mm
Ratchet direction	Non-reversible
Ratchet teeth	72
Minimum movement angle	5°
Material	Chrome-vanadium alloy steel
Finish	Chrome-plated
Open-end dimension D1	45.8 mm
Ratchet-ring dimension D2	40.1 mm
Open-end thickness H1	9.0 mm
Ratchet-ring thickness H2	13.0 mm
Overall length L	287.8 mm
Weight	315 g
Sales unit	One wrench

What's in the Box

373122M 22 mm non-reversible combination speed wrench ×1
