Name: KING TONY 373109M 9 mm Ratcheting Combination Wrench
Brand: KING TONY
SKU: KT-373109M
Price: 610 TWD
Availability: InStock

The KING TONY 373109M is a 9 mm unidirectional ratcheting combination wrench with an open end and a ratcheting ring end. Its overall length is 149 mm and its weight is 39 g. Select the size to match the fastener for manual fitting and removal.

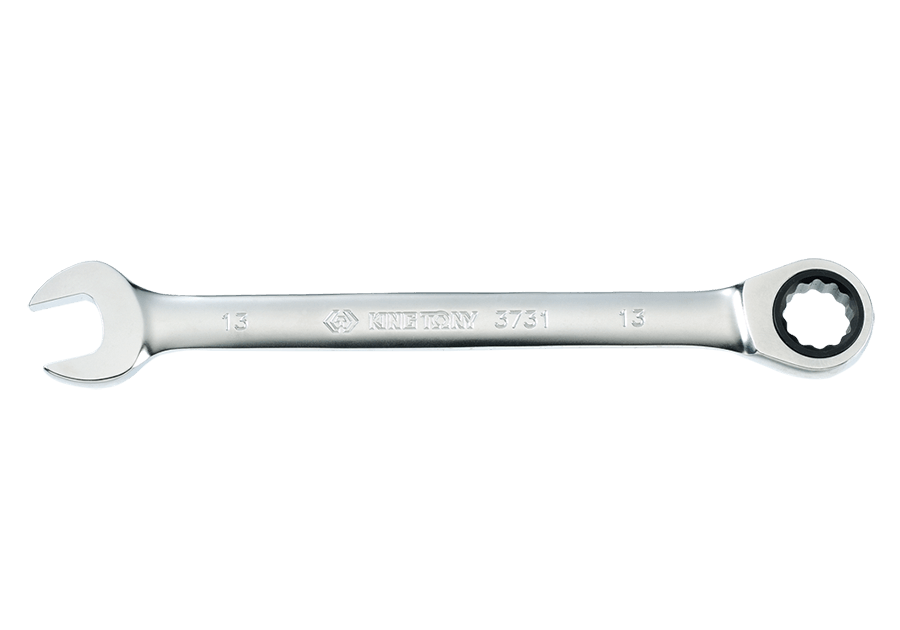

KING TONY 3731M-series manufacturer representative photo marked 13 mm; this 373109M listing is one 9 mm wrench — Manufacturer's KING TONY 3731M-series representative image. The photographed wrench is marked 13 mm, not this listing's 9 mm size. This product is model 373109M, size 9 mm, sold individually.

Features

The 72-tooth ratchet requires a 5° swing angle for incremental operation where handle movement is restricted.
Chromium-vanadium alloy steel body with a chrome-plated finish.
This listing is one 9 mm wrench, not a multi-size wrench set.

KING TONY 3731M-series D1, D2, H1, H2 and L dimension-location drawing; this 373109M listing is 9 mm — The drawing illustrates the 3731M-series dimension locations and is not a scale drawing of this size. The exact 373109M 9 mm values are listed below.

Specifications

Model	373109M
Across-flats size	9 mm
Overall length L	149.0 mm
Open-end width D1	18.7 mm
Ring-end outside diameter D2	18.6 mm
Open-end thickness H1	4.4 mm
Ring-end thickness H2	6.9 mm
Weight	39 g
Ratchet teeth	72
Swing angle	5°
Material	Chromium-vanadium alloy steel
Finish	Chrome plated
Priced unit	One wrench

What's in the Box

373109M 9 mm unidirectional ratcheting combination wrench × 1

Features

The 72-tooth ratchet requires a 5° swing angle for incremental operation where handle movement is restricted.
Chromium-vanadium alloy steel body with a chrome-plated finish.
This listing is one 9 mm wrench, not a multi-size wrench set.

Specifications

Model	373109M
Across-flats size	9 mm
Overall length L	149.0 mm
Open-end width D1	18.7 mm
Ring-end outside diameter D2	18.6 mm
Open-end thickness H1	4.4 mm
Ring-end thickness H2	6.9 mm
Weight	39 g
Ratchet teeth	72
Swing angle	5°
Material	Chromium-vanadium alloy steel
Finish	Chrome plated
Priced unit	One wrench

What's in the Box

373109M 9 mm unidirectional ratcheting combination wrench × 1
