KING TONY 34522-7DG 14×18 mm Interchangeable Torque Wrench, 70–350 N·m
Hand Tools
$8,200.00/ 支
$11,710.00
No downloads available yet
Contact JACO if you need a datasheet, certificate or another technical document.

$7,400.00/ 支

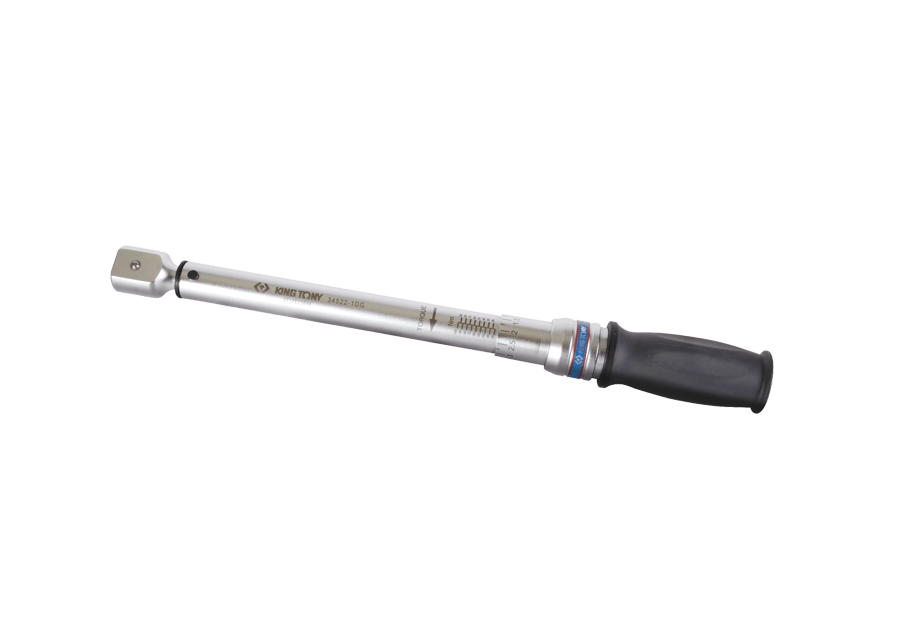

The KING TONY 34522-1DG is a bidirectional interchangeable-head torque wrench with a 14×18 mm head connection. Its single Newton-metre scale covers 20–100 N·m in 0.5 N·m increments. The wrench measures 430 mm overall and is intended for fastener work requiring a specified torque setting.

| Model | 34522-1DG |
|---|---|
| Head connection | 14×18 mm |
| Torque range | 20–100 N·m |
| Scale increment | 0.5 N·m |
| Overall length | 430 mm |
| Weight | 1,270 g |
| Clockwise torque tolerance | ±3% |
| Operating directions | Clockwise / counterclockwise |
| Manufacturer-listed standards | DIN ISO 6789:2017; ASME B107.300-2010 |
The manufacturer recommends torque calibration annually or after more than 5,000 uses. Before fitting a head, check its connection size and the required torque range.
