KING TONY 34423-A 系列示意，圖片標示 34423-1A；本款 34423-2A 為 1/2 吋、70–340 N·m、570 mm，單支販售

KING TONY 34423-2A 1/2-inch Dual-Scale 24-Tooth Torque Wrench, 70–340 N·m

Brand: KING TONY
Manufacturer model number: 34423-2A
Order code: Y8EH7IU
MOQ: 1 支
Supply status: In Stock
Selected configuration: Standard item

$7,000.00/ 支~~Was $10,000.00~~-30%

Payment Options: FPSFlexible PaymentBank Transfer
Buyer Protection: Genuine ProductsCompany InvoiceAfter-sales Service

Sold by

JACO自營旗艦店

自營

KING TONY 34423-2A is a mechanical adjustable torque wrench for controlled tightening with a 1/2-inch square-drive socket. Its 24-tooth ratchet and dual N·m / kgf·m scales cover 70–340 N·m (7.1–34.7 kgf·m). This listing is for one wrench, not a socket set.

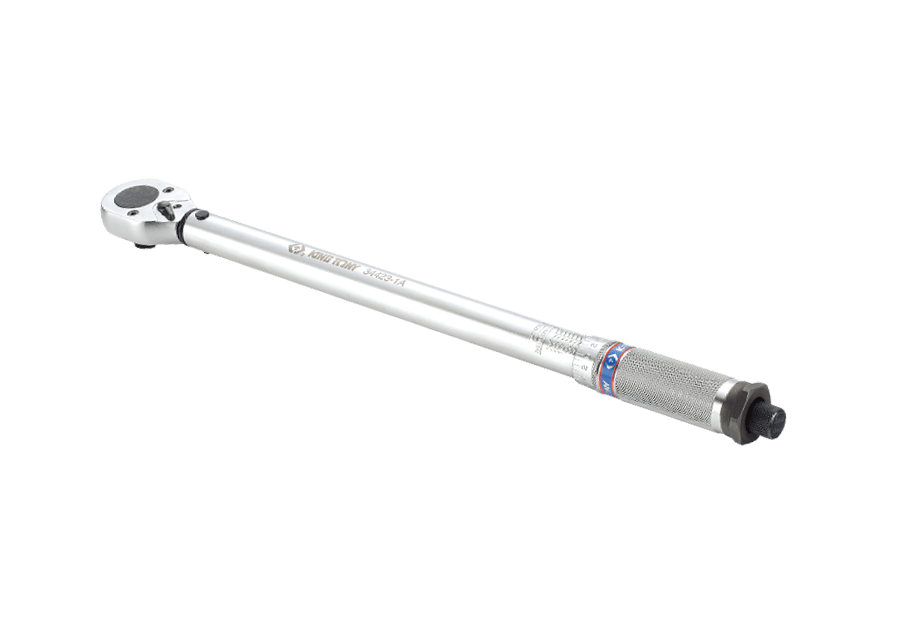

KING TONY 34423-A-series representative image marked 34423-1A; actual listing is one 34423-2A, 1/2-inch drive, 70–340 N·m, 570 mm — Manufacturer's 34423-A-series representative photograph; the pictured tool is marked 34423-1A, not this exact model. This listing is 34423-2A with a 1/2-inch square drive, 70–340 N·m range and 570 mm overall length, sold individually.

Features

Dual torque scales: 70–340 N·m with 3 N·m increments; 7.1–34.7 kgf·m with 0.27 kgf·m increments.
24-tooth ratchet with a direction selector. Torque checking is specified for clockwise operation; do not assume a rated anti-clockwise torque accuracy.
Set the required value using the handle scale, then lock the end knob before tightening. Stop applying force at the click signal.
Manufacturer-stated ±4% clockwise accuracy and compliance with DIN ISO 6789:2017 and ASME B107.300-2010.

Manufacturer 34423-A-series lock and scale details marked 34423-1A, not exact 34423-2A; actual model 70–340 N·m, 570 mm, one wrench — Representative manufacturer close-ups show the series end lock, knurled grip and dual-scale layout. They show 34423-1A markings and scale values, not the 34423-2A scale; use the exact specifications below for this 70–340 N·m, 570 mm model.

Specifications

Model	34423-2A
Square drive	1/2 inch (12.7 mm)
Ratchet teeth	24 teeth
Newton-metre torque range	70–340 N·m
N·m scale increment	3 N·m
Kilogram-force-metre torque range	7.1–34.7 kgf·m
kgf·m scale increment	0.27 kgf·m
Overall length	570 mm
Weight	2,400 g
Torque accuracy	±4% clockwise
Manufacturer-listed standards	DIN ISO 6789:2017; ASME B107.300-2010
Sellable unit	One wrench

Operation and care

Return the setting to the lowest marked torque after use. Store the wrench away from dirt and moisture; do not use it as a hammer or lever. Arrange calibration through a qualified laboratory or workshop at least every 12 months or after 5,000 uses, as recommended in the manufacturer's manual.

What's in the Box

34423-2A 1/2-inch 70–340 N·m torque wrench ×1
